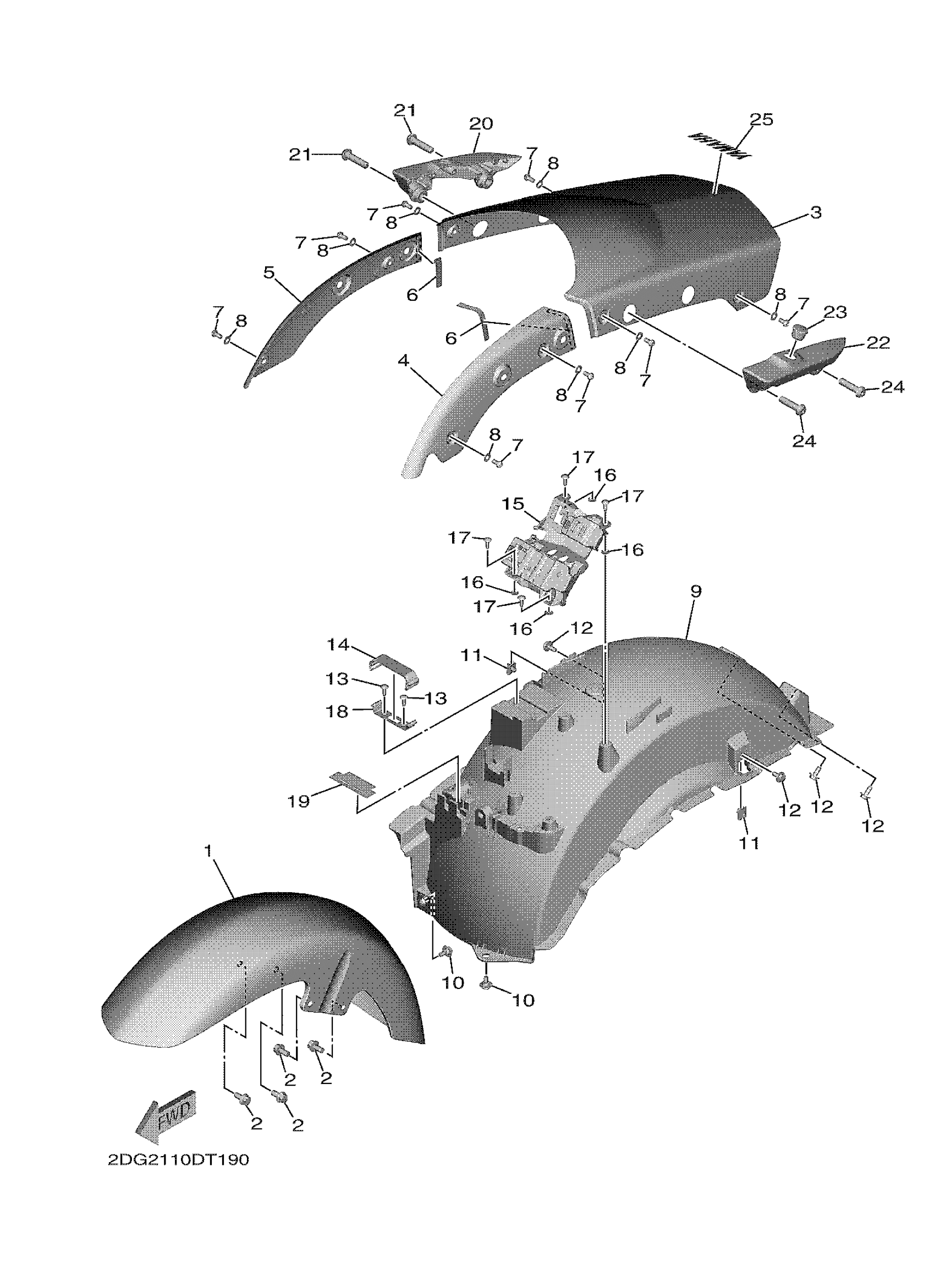

Yamaha XV19BJS (STAR ELUDER) 2DG7 2018 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

2DF-YK215-00-P2

Unavailable

2

REAR FENDER COMP.

2DF-YK216-00-P2

Unavailable

3

BOLT, FLANGE DEEP RECESS

95D32-08016-00

$1.49

4

CLEAR STAY, FENDER 1

2DF-YK263-00-P2

$278.99

5

CLEAR STAY, FENDER 2

2DF-YK264-00-P2

$278.99

6

DAMPER 3

13S-28237-00-00

$7.99

7

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

9

GUARD, MUD

2DF-21629-00-00

$172.99

10

BOLT

90109-06322-00

$7.49

11

NUT, SPRING(4ES)

90183-06069-00

Unavailable

12

BOLT, WITH WASHER

90119-06242-00

$7.49

13

SCREW, TAPPING

97702-50016-00

$2.39

14

BAND, BATTERY

26L-82131-00-00

$7.99

15

BRACKET, REAR STAY

2DF-21688-00-00

Unavailable

16

WASHER, SPECIAL 2

2DF-21616-00-00

Unavailable

17

RIVET(81E)

90269-05055-00

Unavailable

18

BRACKET 3

2DF-2161A-00-00

Unavailable

19

SEAL

2DF-21669-00-00

Unavailable

20

STAY 1

2DG-2164F-00-00

Unavailable

21

BOLT

90111-10011-00

Unavailable

22

STAY 2

2DG-2164G-00-00

Unavailable

23

PLUG

90338-19212-00

Unavailable

24

BOLT

90111-10011-00

Unavailable

25

EMBLEM, YAMAHA

99244-00100-00

Unavailable
