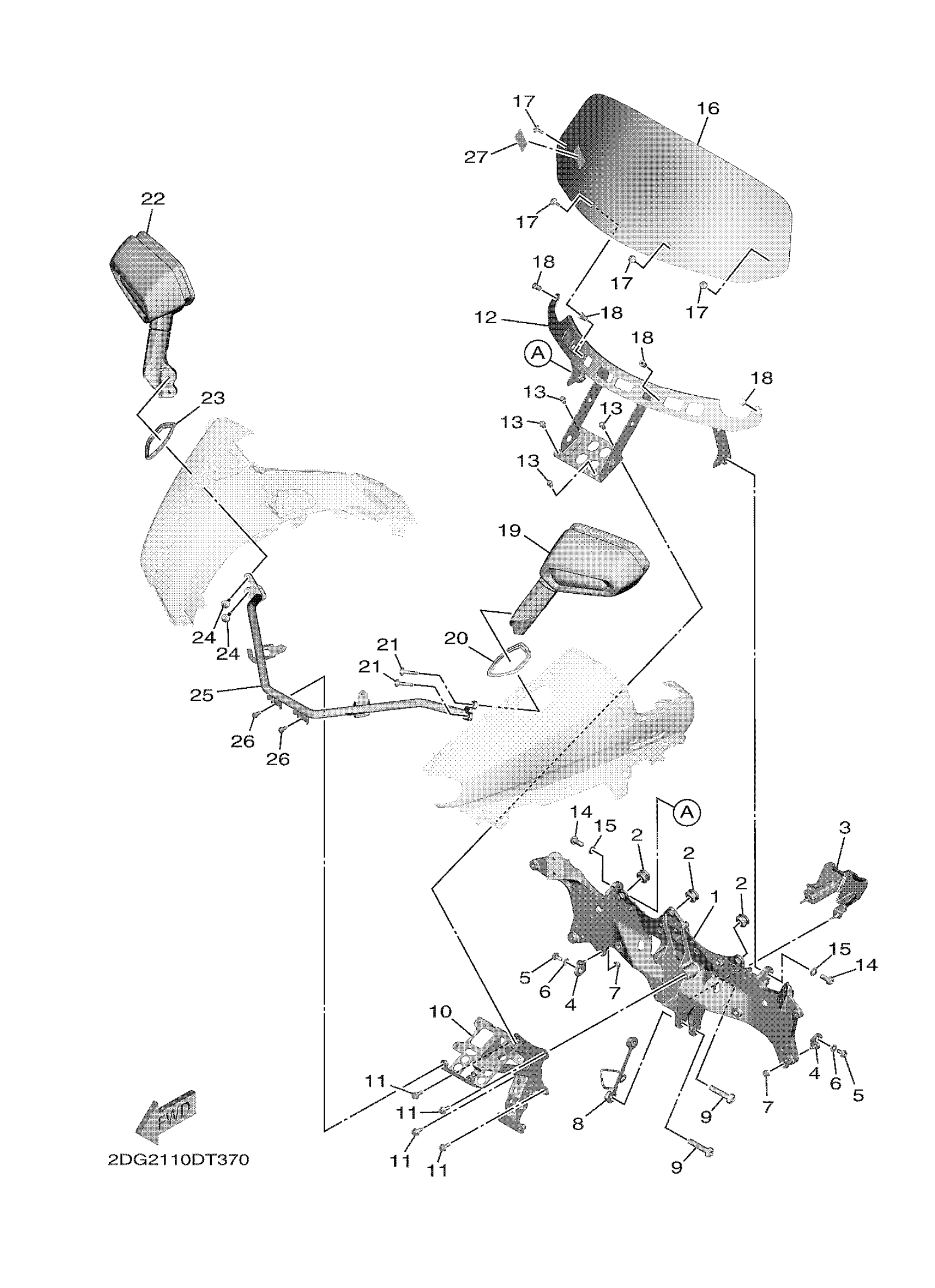

Yamaha XV19BJS (STAR ELUDER) 2DG7 2018 COWLING 3 Diagram

#

Description
Price

1

STAY 1

2DG-28356-00-00

Unavailable

2

GROMMET

90480-09M21-00

$5.07

3

COVER 3

2DF-28239-00-00

$21.95

4

STAY, SIDE 1

2DF-2831U-00-00

$4.05

5

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable

6

WASHER, PLATE

90201-06045-00

$5.76

7

NUT, FLANGE(4MV)

95707-06500-00

$0.73

8

PLATE

2DF-28336-00-00

$17.80

9

BOLT,HEX. SOCKET BUTTON

90111-10054-00

$4.81

10

STAY, LEG SHIELD

2DF-28332-00-00

Unavailable

11

BOLT, FLANGE DEEP RECESS

95D32-06014-00

$0.22

12

STAY 2

2DG-28322-00-00

Unavailable

13

BOLT, FLANGE

95022-06010-00

$5.08

14

BOLT, BUTTON HEAD

92012-08020-00

$2.00

15

. WASHER

92902-08200-00

$0.22

16

WINDSHIELD

2DG-28381-00-00

Unavailable

17

SCREW, ROUND HEAD(1UX)

90150-05024-00

Unavailable

18

NUT(1KT)

90179-05523-00

Unavailable

19

REAR VIEW MIRROR ASSY (LEFT)

2DF-26280-00-P2

Unavailable

20

BASE, MIRROR (LEFT)

2DF-2628N-00-00

Unavailable

21

BOLT

90109-06031-00

$1.80

22

REAR VIEW MIRROR ASSY (RIGHT)

2DF-26290-00-P2

Unavailable

23

BASE, MIRROR (RIGHT)

2DF-2628R-00-00

Unavailable

24

BOLT

90109-06031-00

$1.80

25

STAY, MIRROR 1

2DF-2831W-00-00

Unavailable

26

BOLT, FLANGE

95022-06012-00

Unavailable

27

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
