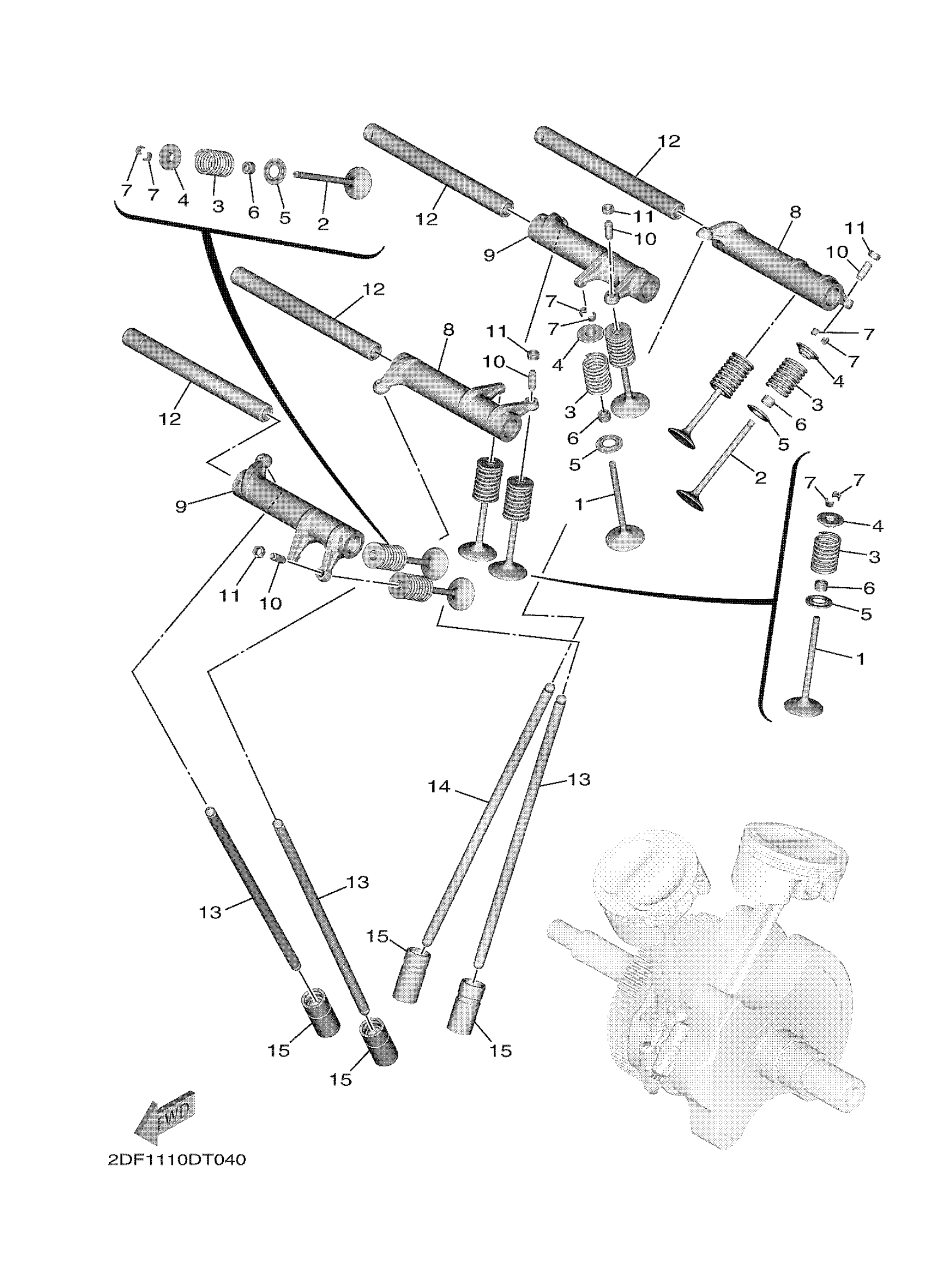

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 VALVE Diagram

VALVE, INTAKE

1D7-12111-00-00

$40.99

VALVE, EXHAUST

1D7-12121-00-00

$69.99

SPRING, VALVE INNER

1D7-12113-00-00

$16.49

RETAINER, VALVE SPRING

3YF-12117-01-00

$15.49

SEAT, VALVE SPRING

1D7-12116-00-00

$7.99

SEAL, VALVE STEM

4KM-12119-00-00

$15.49

COTTER, VALVE

4G0-12118-00-00

$7.99

ARM, VALVE ROCKER

1D7-12151-10-00

Unavailable

ARM, VALVE ROCKER 2

1D7-12161-10-00

Unavailable

SCREW, VALVE ADJUSTING

31G-12159-02-00

$9.99

NUT

90170-07003-00

$1.07

SHAFT, ROCKER

1D7-12146-10-00

$33.99

ROD, VALVE PUSH

1D7-12154-01-00

$27.99

ROD, VALVE PUSH 2

1D7-12144-00-00

Unavailable

LIFTER, VALVE

2DF-12153-00-00

$32.99
