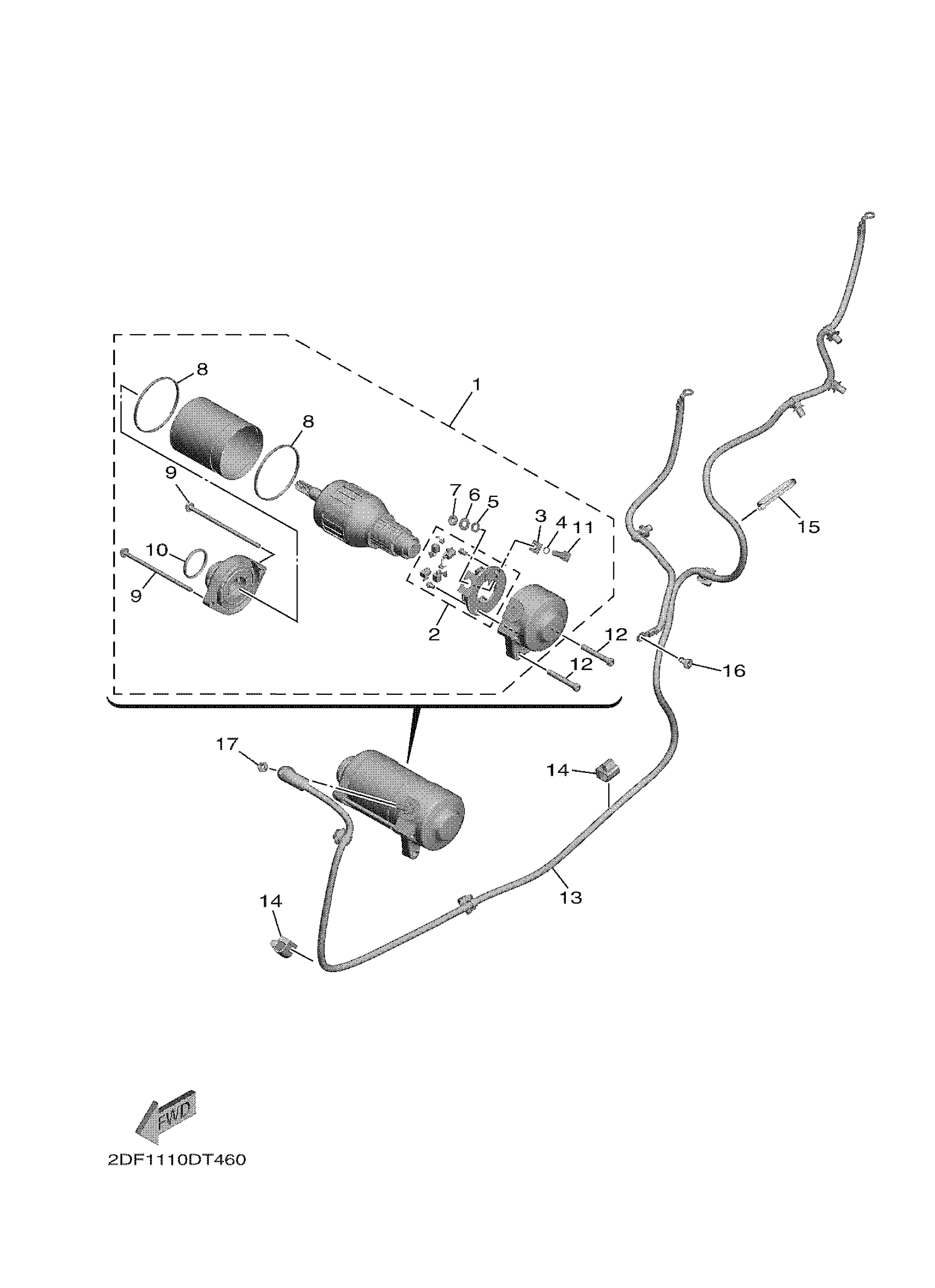

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 STARTING MOTOR Diagram

Description

Price

MOTOR ASSY

2DF-81890-10-00

$324.99

BRUSH SET

2S3-81801-00-00

$82.99

BUSH, TERMINAL

2S3-8182G-00-00

Unavailable

O-RING (26H)

93210-06632-00

$8.49

WASHER, PLAIN

8FA-8181L-00-00

Unavailable

WASHER

1D7-81835-00-00

$2.29

NUT(650)

95380-06700-00

$8.49

GASKET

1D7-81861-00-00

Unavailable

SCREW

8FA-81846-01-00

$7.49

O-RING(1RL)

93210-25711-00

$7.49

BOLT 2

2S3-81828-00-00

Unavailable

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

CORD COMP.

2DF-8183G-00-00

$68.99

CLAMP

90464-08011-00

$0.96

CLAMP(4FM)

90464-15195-00

$4.41

SCREW, HEXAGON (18V)

90153-06044-00

Unavailable

NUT(650)

95380-06700-00

$8.49
