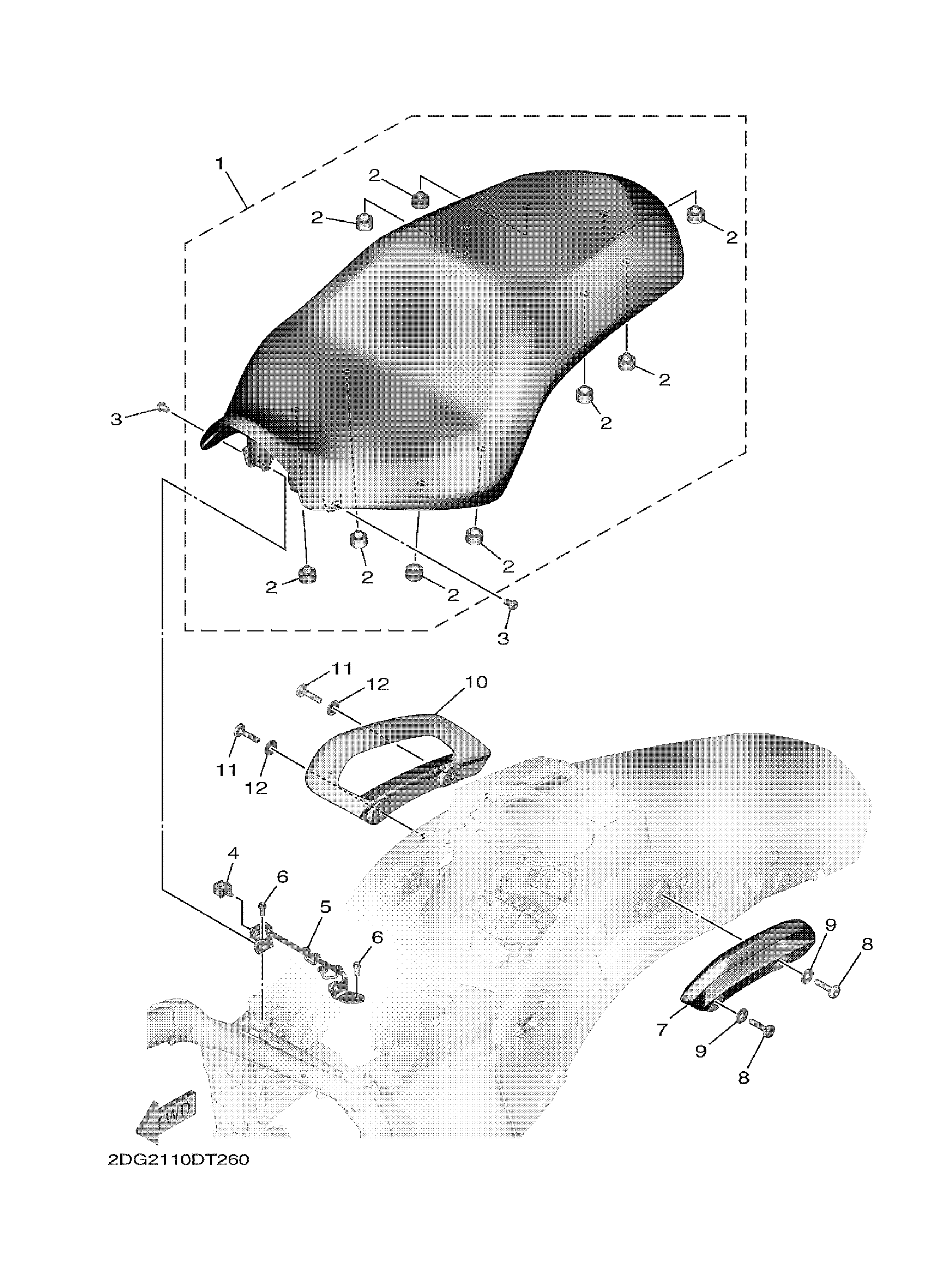

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSY

2DG-F4730-10-00

Unavailable

2

DAMPER, SEAT

2DF-F4723-00-00

Unavailable

3

BOLT, BUTTON HEAD

92017-08012-00

$5.76

4

CLAMP

90464-12M58-00

$3.00

5

BRACKET, SEAT 1

2DF-21341-00-00

$37.27

6

BOLT, FLANGE

90105-06100-00

$5.20

7

ASSIST, GRIP

2DG-2474A-00-00

$102.76

8

BOLT

90109-08245-00

Unavailable

9

WASHER, PLATE (4W3)

90201-086A3-00

$5.86

10

ASSIST,GRIP 2

2DG-2474W-00-00

Unavailable

11

BOLT

90109-08245-00

Unavailable

12

WASHER, PLATE (4W3)

90201-086A3-00

$5.86
