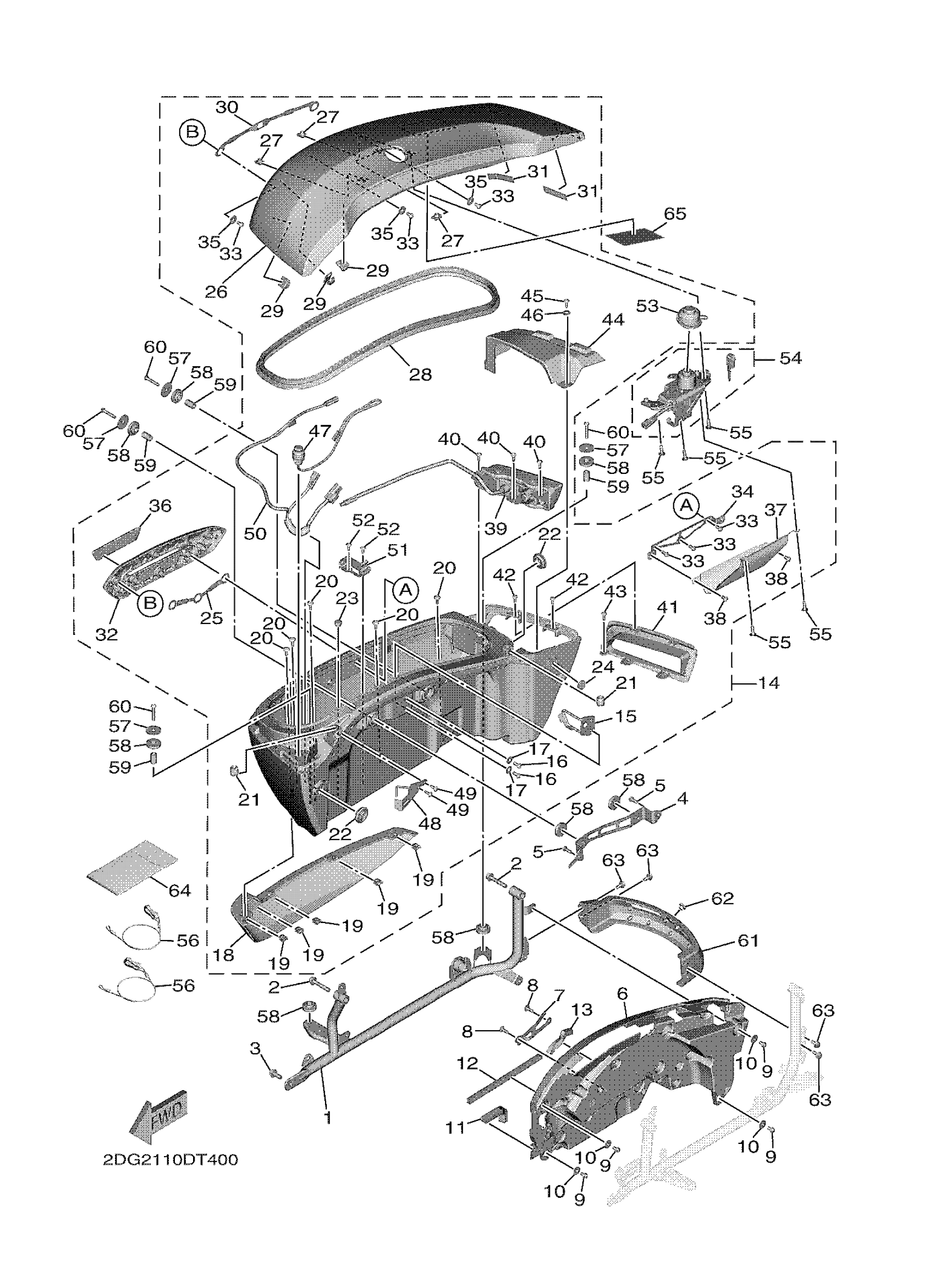

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 SADDLEBAG 2 Diagram

#

Description
Price

1

FRAME, SADDLEBAG 2

2DF-28474-00-00

Unavailable

2

BOLT, FLANGE DEEP RECESS

95D32-08045-00

Unavailable

3

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

4

STAY, FRONT GUARD 2

2DF-28414-00-00

Unavailable

5

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

6

COVER, SIDE BOX 2

2DF-2846U-00-00

Unavailable

7

BRACKET 2

2DG-28436-00-00

Unavailable

8

SCREW, TAPPING

97702-60016-00

$2.19

9

BOLT, FLANGE

95022-06012-00

$3.29

10

COLLAR

90387-06071-00

$8.49

11

DAMPER 8

2DF-2847N-00-00

$3.07

12

DAMPER, PLATE

90520-10032-00

$2.17

13

DAMPER 11

2DF-2847S-00-00

$2.18

14

SADDLEBAG ASSY., 2

2DF-28420-15-P0

Unavailable

15

HOOK 3

2DF-28494-00-00

Unavailable

16

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

17

WASHER, PLATE

90201-06055-00

Unavailable

18

COVER 4

2DF-2844J-01-00

Unavailable

19

NUT, SPRING(4TV)

90183-05073-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

21

DAMPER 1

2DF-28415-00-00

Unavailable

22

SEAL 5

2DF-2847F-00-00

Unavailable

23

PLUG (17J)

90338-10132-00

Unavailable

24

SEAL 4

2DF-2846F-00-00

Unavailable

25

STAY, 7

2DF-284BF-00-00

Unavailable

26

SADDLEBAG 4

2DF-28449-00-P2

Unavailable

27

NUT, SPRING

90183-062A0-00

Unavailable

28

SEAL 2

2DF-28429-00-00

Unavailable

29

CLAMP

2DF-81128-00-00

Unavailable

30

STAY, 10

2DF-284BH-00-00

Unavailable

31

SEAL, 16

2DF-284BP-00-00

Unavailable

32

HINGE SUB-ASSY., 2

2DF-2844S-01-00

Unavailable

33

BOLT,HEX. SOCKET BUTTON

90111-06103-00

Unavailable

34

BRACKET, HINGE 2

2DF-2846N-00-00

Unavailable

35

WASHER, PLATE

90201-06557-00

Unavailable

36

REAR REFLECTOR ASSY

2DF-85130-00-00

Unavailable

37

COVER, HINGE 2

2DF-2846L-00-00

Unavailable

38

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

39

REAR FLASHER LIGHT ASSY 2

2DF-83340-00-00

Unavailable

40

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

41

. GARNISH, FLASHER 2

2DF-833A2-10-00

Unavailable

42

SCREW, BINDING

98907-05012-00

Unavailable

43

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

44

LID 2

2DF-2844C-00-00

Unavailable

45

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

46

WASHER PLATE 122217250000

90202-07015-00

Unavailable

47

SWITCH

2DF-82617-00-00

Unavailable

48

BRACKET 3

2DF-28476-00-00

Unavailable

49

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

50

WIRE, LEAD 8

2DF-86178-01-00

Unavailable

51

BAND, TOOL

2DF-21376-00-00

Unavailable

52

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

53

CAP,2

2DF-2845X-00-00

Unavailable

54

LOCK ASSY

2DF-W2849-11-00

Unavailable

55

BOLT

90111-06041-00

Unavailable

56

HANGER, HELMET

2DF-21398-00-00

Unavailable

57

WASHER (23T)

90201-065G8-00

Unavailable

58

GROMMET(1NL)

90480-20447-00

Unavailable

59

COLLAR

90387-08111-00

Unavailable

60

BOLT, BUTTON

92017-06035-00

Unavailable

61

STAY, SIDE BAG

2DF-28423-00-00

Unavailable

62

PLUG

90338-07010-00

Unavailable

63

BOLT, FLANGE DEEP RECESS

95D37-06014-00

Unavailable

64

TOOL KIT

2DF-28100-00-00

Unavailable

65

LABEL, CAUTION

4XY-28446-02-00

Unavailable
