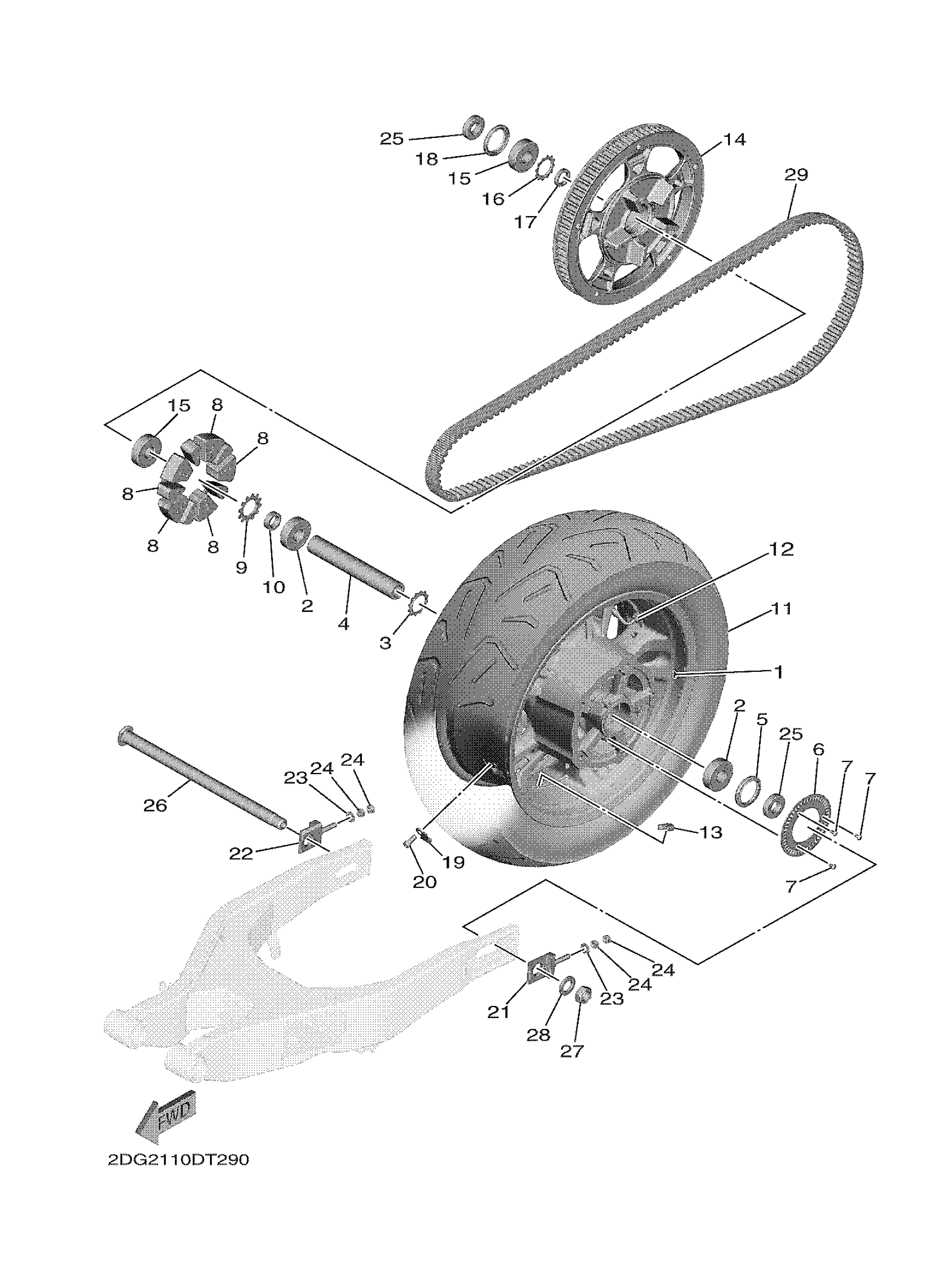

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
2DF-25338-10-0X
Unavailable
5
OIL SEAL(47X)
93105-42024-00
Unavailable
8
DAMPER
2DF-25364-01-00
Unavailable
9
FLANGE, SPACER 2
2DF-25316-00-00
Unavailable
10
COLLAR, WHEEL
2DF-25383-00-00
Unavailable
11
TIRE (200/55R16M/C 77H)
94120-16008-00
Unavailable
13
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
14
SPROCKET, DRIVEN (70T)
2DF-25470-00-00
Unavailable
17
COLLAR, WHEEL
2DF-25376-00-00
Unavailable
18
OIL SEAL(47X)
93105-42024-00
Unavailable
19
BALANCER, WHEEL
2DG-25199-00-00
Unavailable
20
BOLT, BUTTON HEAD
92012-08020-00
Unavailable
21
PULLER, CHAIN 1
2DF-25388-00-00
Unavailable
22
PULLER, CHAIN 2
2DF-25389-00-00
Unavailable
23
. WASHER
92902-08200-00
Unavailable
24
NUT
95302-08600-00
Unavailable
25
COLLAR
90387-22034-00
Unavailable
26
AXLE, WHEEL
2DF-25381-00-00
Unavailable
27
NUT, SELF-LOCKING
90185-20002-00
Unavailable
28
WASHER, PLATE
90201-20036-00
Unavailable
29
BELT
2DF-46241-00-00
Unavailable
