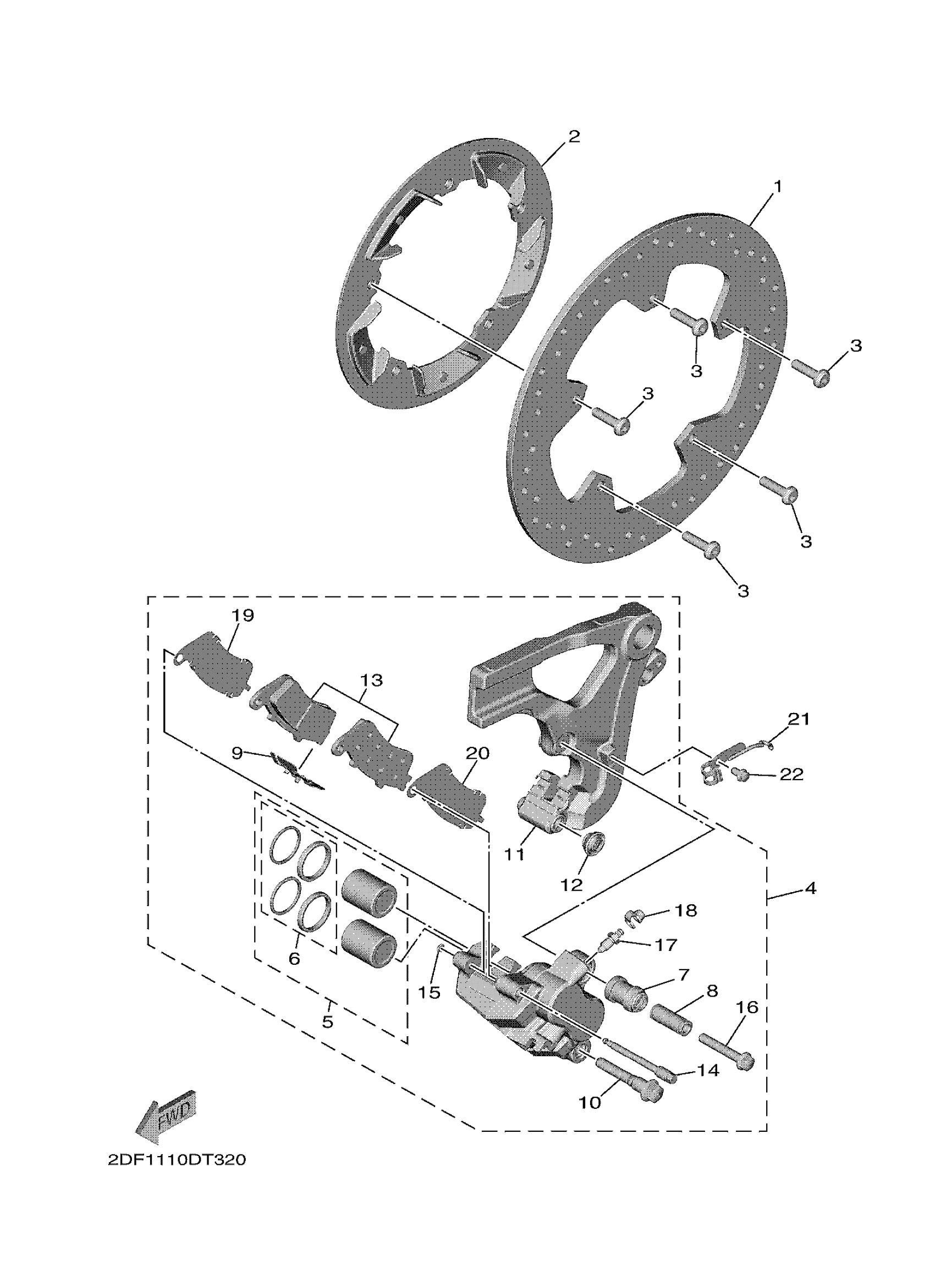

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 1

2DF-2582V-00-00

Unavailable

2

PLATE, DISK

2DF-2581A-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-08114-00

Unavailable

4

CALIPER ASSY, REAR 1

2DF-2580V-00-00

$303.99

5

PISTON ASSY, CALIPER

2DF-25802-00-00

Unavailable

6

CALIPER SEAL KIT

3FV-25803-10-00

$9.99

7

BOOT, CALIPER

5SL-25917-00-00

$15.49

8

SLEEVE, CALIPER

5SL-25838-00-00

$13.49

9

SUPPORT, PAD

2DF-25919-50-00

Unavailable

10

PIN, SLIDE

2DF-25914-50-00

$15.49

11

BRACKET, SUPPORT

2DF-25921-50-00

Unavailable

12

BOOT, CALIPER

3JD-25917-00-00

$8.99

13

BRAKE PAD KIT 2

2DF-25806-00-00

$69.99

14

PIN, PAD

2DF-25924-50-00

Unavailable

15

STOPPER

3P6-25925-00-00

Unavailable

16

BOLT

5SL-25926-00-00

Unavailable

17

SCREW, BLEED

8CR-25824-00-00

Unavailable

18

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

19

SHIM, CALIPER

2DF-25828-00-00

Unavailable

20

SHIM, CALIPER

2DF-25828-10-00

Unavailable

21

HOLDER

2DF-25522-00-00

Unavailable

22

BOLT, FLANGE

95022-06010-00

Unavailable
