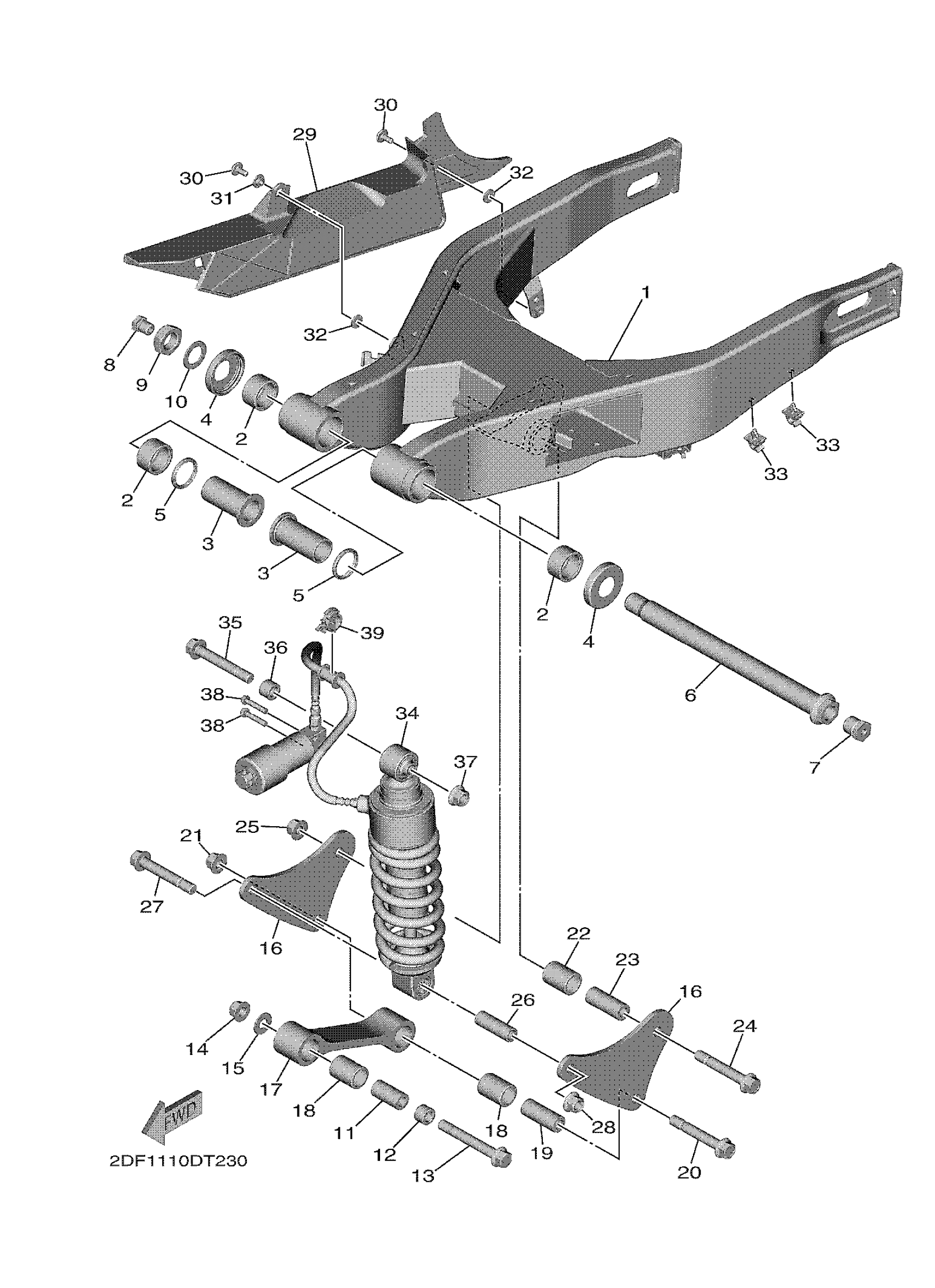

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

2DF-22110-00-00

$500.99

2

BEARING

93317-330A1-00

$32.99

3

BUSH

2DF-22184-00-00

Unavailable

4

COVER, THRUST 1

2C0-22128-00-00

Unavailable

5

OIL SEAL

93106-30002-00

$7.49

6

SHAFT, PIVOT

2DF-22141-00-00

Unavailable

7

BUSH 1

2DF-22123-00-00

Unavailable

8

BUSH 2

2DF-22124-00-00

Unavailable

9

NUT, SELF-LOCKING

90185-22009-00

$19.99

10

WASHER, PLATE

90201-22021-00

$5.60

11

COLLAR

90387-12605-00

Unavailable

12

COLLAR

90387-12607-00

Unavailable

13

BOLT, FLANGE

90105-12064-00

$14.99

14

NUT, SELF-LOCKING

95602-12200-00

$4.46

15

WASHER, PLATE

90201-12045-00

$5.60

16

ARM, RELAY

2DF-2217A-00-00

Unavailable

17

ARM 1

2DF-2217M-00-00

Unavailable

18

BEARING, CYLINDRICAL(2GH)

93317-42060-00

Unavailable

19

COLLAR

90387-12606-00

Unavailable

20

BOLT, FLANGE

90105-12057-00

Unavailable

21

NUT, SELF-LOCKING

95602-12200-00

$4.46

22

BEARING, CYLINDRICAL(2GH)

93317-42060-00

Unavailable

23

COLLAR

90387-12606-00

Unavailable

24

BOLT, FLANGE

90105-12057-00

Unavailable

25

NUT, SELF-LOCKING

95602-12200-00

$4.46

26

COLLAR

90387-12047-00

Unavailable

27

BOLT, FLANGE

90105-12057-00

Unavailable

28

NUT, SELF-LOCKING

95602-12200-00

$4.46

29

CASE, CHAIN 2

2DF-22312-00-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-06097-00

Unavailable

31

COLLAR

90387-06048-00

Unavailable

32

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable

33

CLAMP

90464-07259-00

Unavailable

34

SHOCK ABSORBER ASSY, REAR

2DF-22210-00-00

Unavailable

35

BOLT, FLANGE

90105-12119-00

Unavailable

36

COLLAR

90387-12607-00

Unavailable

37

NUT, SELF-LOCKING

95602-12200-00

$4.46

38

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

39

CLAMP(4TR)

90464-18246-00

Unavailable
