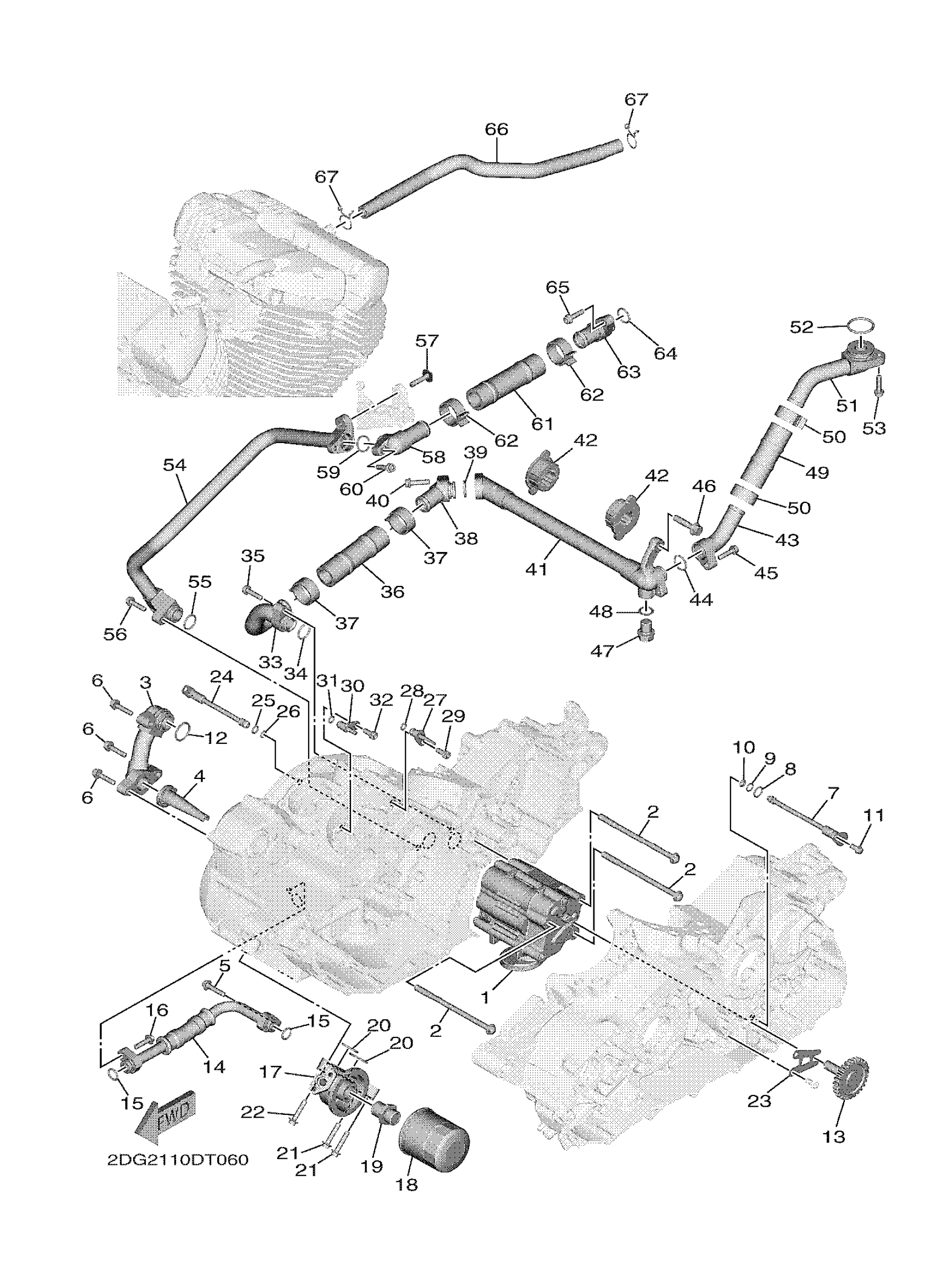

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 OIL PUMP Diagram
#
3
OIL PIPE COMP. 2
2DF-13406-00-00
Unavailable
13
DRIVEN GEAR ASSY
2DF-13360-00-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
90110-06387-00
Unavailable
17
PLATE, ADAPTOR
2DF-13461-00-00
Unavailable
18
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
19
BOLT, UNION
90401-20008-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06346-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD
90110-06415-00
Unavailable
23
PLATE, STOPPER 1
2DF-1357N-00-00
Unavailable
24
PIPE, DELIVERY 3
1D7-13181-00-00
Unavailable
25
O-RING
93210-08003-00
Unavailable
26
O-RING (11M)
93210-07540-00
Unavailable
27
NOZZLE
5C7-13352-00-00
Unavailable
28
O-RING (11M)
93210-07540-00
Unavailable
29
BOLT (33M)
91312-06014-00
Unavailable
30
NOZZLE
5C7-13454-00-00
Unavailable
31
O-RING (11M)
93210-07540-00
Unavailable
32
BOLT (33M)
91312-06014-00
Unavailable
33
PIPE
2DF-13582-00-00
Unavailable
34
O-RING
93210-18006-00
Unavailable
35
BOLT, HEXAGON SOCKET HEAD
90110-06411-00
Unavailable
36
HOSE, OIL 2
2DF-13465-00-00
Unavailable
37
CLIP
90467-270A0-00
Unavailable
38
JOINT 1
2DF-13815-00-00
Unavailable
39
O-RING
93210-18006-00
Unavailable
40
BOLT, HEXAGON SOCKET HEAD
90110-06411-00
Unavailable
41
PIPE, DELIVERY 5
2DF-1316E-00-00
Unavailable
42
DAMPER
2DF-13159-00-00
Unavailable
43
JOINT 2
2DF-13816-00-00
Unavailable
44
O-RING
93210-18006-00
Unavailable
45
BOLT, HEXAGON SOCKET HEAD
90110-06411-00
Unavailable
46
BOLT, FLANGE DEEP RECESS
95D37-08025-00
Unavailable
47
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
48
GASKET
214-11198-01-00
Unavailable
49
HOSE, OIL 1
2DF-13464-00-00
Unavailable
50
CLIP
90467-270A0-00
Unavailable
51
PIPE, OIL 2
2DF-13418-00-00
Unavailable
52
O-RING (371)
93210-29198-00
Unavailable
53
BOLT, HEXAGON SOCKET HEAD
90110-06411-00
Unavailable
54
PIPE, OIL 1
2DG-13416-00-00
Unavailable
55
O-RING
93210-18006-00
Unavailable
56
BOLT, HEXAGON SOCKET HEAD
90110-06411-00
Unavailable
57
BOLT,HEX. SOCKET BUTTON
90111-06130-00
Unavailable
58
JOINT
2DF-13595-01-00
Unavailable
59
O-RING
93210-18006-00
Unavailable
60
BOLT, HEXAGON SOCKET HEAD
90110-06411-00
Unavailable
61
HOSE
2DF-13467-00-00
Unavailable
62
CLIP
90467-270A0-00
Unavailable
63
PIPE
2DF-13284-01-00
Unavailable
64
O-RING
93210-18006-00
Unavailable
65
BOLT, HEXAGON SOCKET HEAD
90110-06411-00
Unavailable
66
HOSE, AIR
2DF-13543-00-00
Unavailable
67
CLIP
90467-170A2-00
Unavailable
