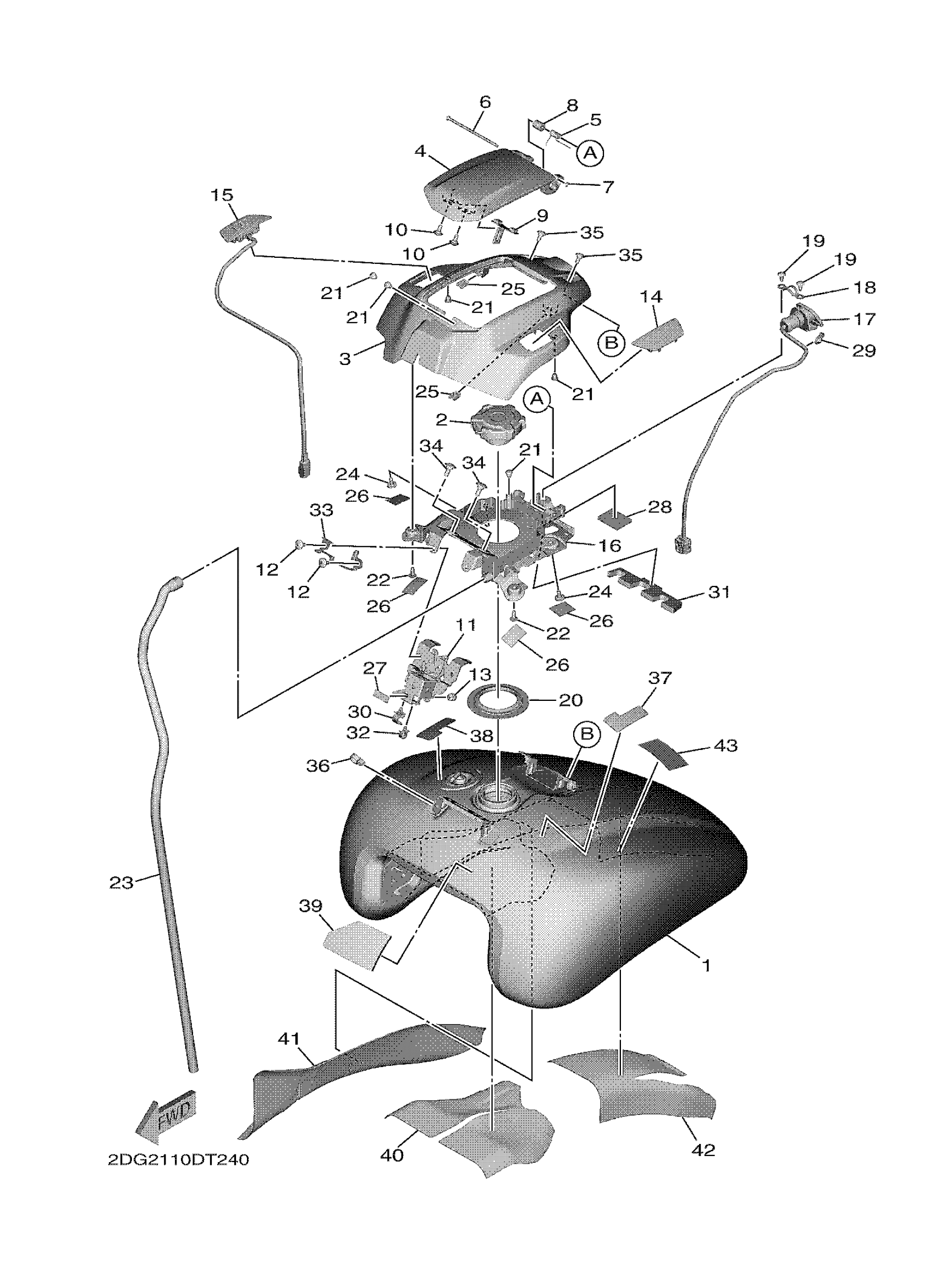

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 FUEL TANK Diagram
#
2
CAP ASSY
2DF-24610-00-00
Unavailable
3
COVER, TANK
2DF-241B1-00-00
Unavailable
6
PIN
2DF-24374-00-00
Unavailable
7
CIRCLIP(6L5)
99080-03600-00
Unavailable
8
DAMPER 3
2DF-2834E-00-00
Unavailable
9
SEAL
2DF-2814J-00-00
Unavailable
11
LOCK ASSY
2DF-21780-00-00
Unavailable
13
DAMPER 2
5A8-21639-00-00
Unavailable
15
SWITCH ASSY
2DG-8259F-00-00
Unavailable
16
COVER, FILLER
2DF-2414A-01-00
Unavailable
17
CORD, HEAD SET 1
2DF-88196-00-00
Unavailable
18
STAY
2DF-24216-00-00
Unavailable
19
SCREW, ROUND TAPPING
90160-05018-00
Unavailable
20
SEAL
2DF-2414G-00-00
Unavailable
21
PLUG(1NL)
90338-07180-00
Unavailable
22
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
23
PIPE, OVERFLOW
2DF-24318-00-00
Unavailable
25
NUT, SPRING
90183-050A6-00
Unavailable
26
DAMPER, SEAT
5GJ-24723-00-00
Unavailable
27
DAMPER
5B6-23455-00-00
Unavailable
28
DAMPER, PLATE
90520-06008-00
Unavailable
29
CLAMP
90464-36005-00
Unavailable
30
CLAMP(3LD)
90464-09129-00
Unavailable
31
DAMPER
2DF-28371-00-00
Unavailable
32
CLAMP
90464-09023-00
Unavailable
33
STAY, PLATE
2DF-23486-00-00
Unavailable
34
BOLT
90109-06253-00
Unavailable
36
CLAMP(3SK)
90464-13133-00
Unavailable
37
SEAL 3
2DF-241A3-00-00
Unavailable
38
SEAL 4 (RIGHT SIDE)
2DF-241A4-00-00
Unavailable
39
DAMPER, PLATE 3
2DF-2414K-00-00
Unavailable
40
DAMPER, PLATE 4
2DG-2414N-00-00
Unavailable
41
DAMPER, PLATE 5
2DG-2414P-00-00
Unavailable
42
DAMPER, PLATE 6
2DG-2414R-00-00
Unavailable
43
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
