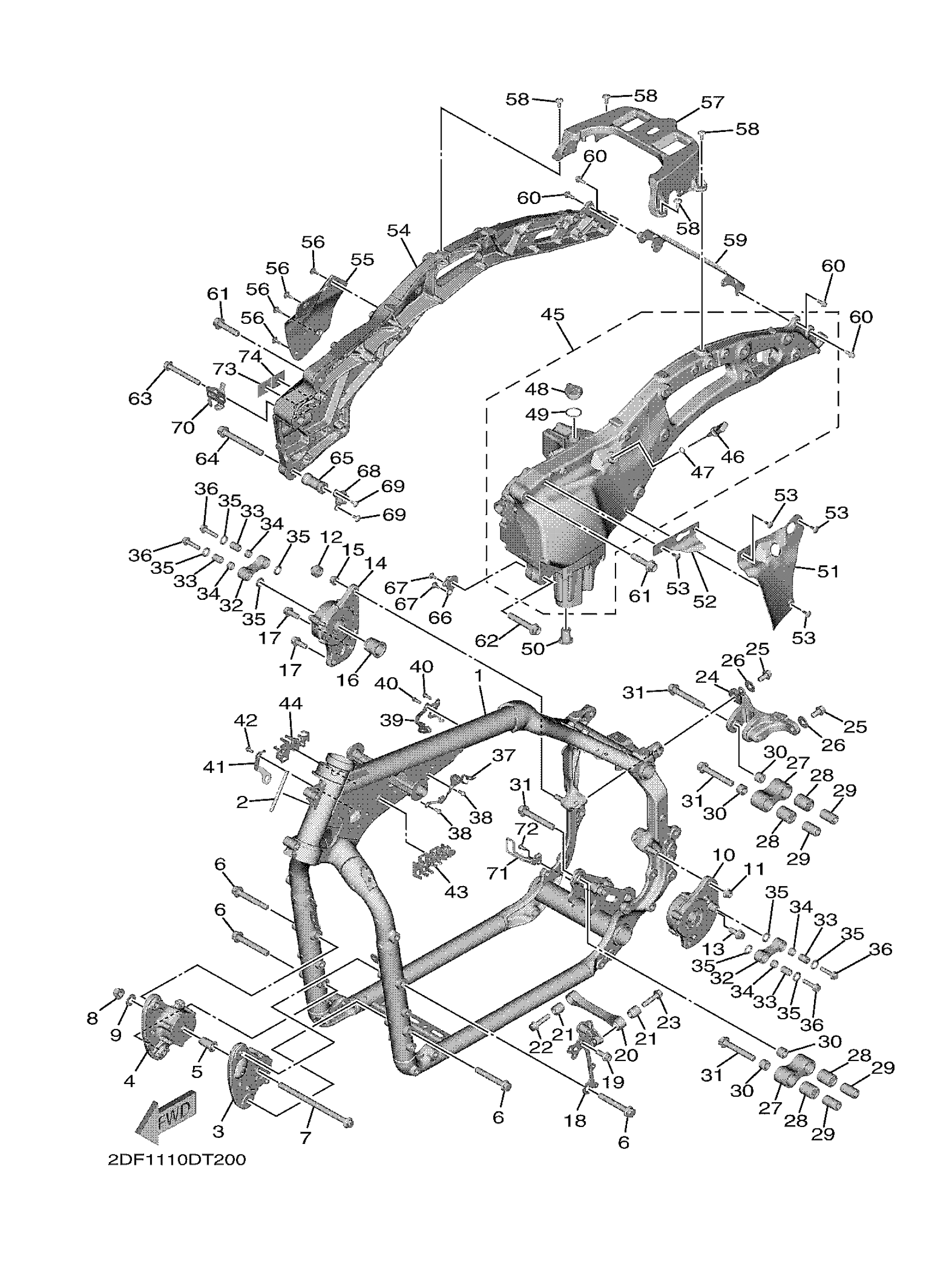

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 FRAME Diagram
#
1
FRAME COMP.
2DF-21110-00-00
Unavailable
2
PROTECTOR
3D8-2117G-00-00
Unavailable
3
ENGINE BRACKET SUB-COMP. 1
2DF-2140X-00-00
Unavailable
4
ENGINE BRACKET SUB-COMP. 2
2DF-2140Y-00-00
Unavailable
5
BOLT
2DF-2149C-00-00
Unavailable
6
BOLT, FLANGE
90105-12102-00
Unavailable
10
ENGINE BRACKET COMP.
2DF-21410-00-00
Unavailable
12
CAP
5YU-2143A-00-00
Unavailable
14
ENGINE BRACKET COMP. 2
2DF-21420-00-00
Unavailable
16
BOLT, ENGINE ADJUSTING
2DF-21495-00-00
Unavailable
18
PLATE, ENGINE MOUNT
2DF-2145B-00-00
Unavailable
19
BOLT, FLANGE DEEP RECESS
95D37-10025-00
Unavailable
20
STAY, ENGINE 6
2DF-21319-00-00
Unavailable
21
DAMPER
90388-10003-00
Unavailable
22
BOLT, FLANGE
90105-10256-00
Unavailable
23
BOLT, FLANGE DEEP RECESS
95D32-10040-00
Unavailable
24
STAY, ENGINE 3
2DF-21317-00-00
Unavailable
25
BOLT, FLANGE
90105-10477-00
Unavailable
26
WASHER, PLATE
90201-10065-00
Unavailable
27
STAY, ENGINE 7
2DF-21387-00-00
Unavailable
28
BEARING
93315-32075-00
Unavailable
29
COLLAR
90387-12604-00
Unavailable
30
COLLAR
90387-12607-00
Unavailable
31
BOLT, FLANGE
90105-12102-00
Unavailable
32
STOPPER
2DF-2118W-00-00
Unavailable
33
COLLAR
90387-08102-00
Unavailable
34
BUSH, FORMED
90383-14004-00
Unavailable
35
OIL SEAL
93109-14001-00
Unavailable
36
BOLT, FLANGE
90105-08254-00
Unavailable
37
STAY
2DF-2117A-00-00
Unavailable
38
BOLT, BUTTON HEAD
92017-06012-00
Unavailable
39
BRACKET 7
2DF-2116J-00-00
Unavailable
40
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
41
BRACKET 8
2DF-2116K-00-00
Unavailable
42
BOLT, BUTTON HEAD
92017-06012-00
Unavailable
43
COVER 4
2DF-2117R-00-00
Unavailable
44
COVER 10
2DF-2117Y-00-00
Unavailable
45
BACK STAY COMP. , 1
2DF-2110C-00-00
Unavailable
46
PLUG, OIL LEVEL
2DF-15362-00-00
Unavailable
47
O-RING (1J7)
93210-09350-00
Unavailable
48
PLUG, OIL LEVEL
BAT-15362-00-00
Unavailable
49
O-RING(1KT)
93210-27778-00
Unavailable
50
STRAINER 2
2DF-13421-00-00
Unavailable
51
COVER 5
2DF-2117T-00-00
Unavailable
52
COVER 3
2DF-2117N-00-00
Unavailable
53
RIVET(8AB)
90269-05073-00
Unavailable
54
BRACKET, REAR FENDER 2
2DF-21152-00-00
Unavailable
55
COVER 6
2DF-2117U-00-00
Unavailable
56
RIVET(8AB)
90269-05073-00
Unavailable
57
BRACKET
2DF-21131-00-00
Unavailable
58
BOLT,HEX. SOCKET BUTTON
90111-06116-00
Unavailable
59
BRACKET, MEMBER 1
2DF-2115L-00-00
Unavailable
60
BOLT, HEXAGON SOCKET HEAD
90110-06107-00
Unavailable
61
BOLT, FLANGE
90105-12115-00
Unavailable
62
BOLT, FLANGE
90105-12116-00
Unavailable
63
BOLT, HEXAGON SOCKET HEAD
90110-10042-00
Unavailable
64
BOLT, FLANGE
90105-12117-00
Unavailable
65
BOSS
2DF-2115H-00-00
Unavailable
66
BRKT., LH.
2DF-2119W-00-00
Unavailable
67
BOLT,HEX. SOCKET BUTTON
90111-05049-00
Unavailable
68
BRACKET
2DF-2119V-00-00
Unavailable
69
BOLT,HEX. SOCKET BUTTON
90111-05049-00
Unavailable
70
BRACKET 10
2DF-2116M-00-00
Unavailable
71
HOLDER, CABLE
2DF-21161-00-00
Unavailable
72
BOLT, BUTTON HEAD
92017-06012-00
Unavailable
73
PLATE, ROUTING 2
2DF-21686-00-00
Unavailable
74
PLATE, ROUTING
34B-21684-00-00
Unavailable
