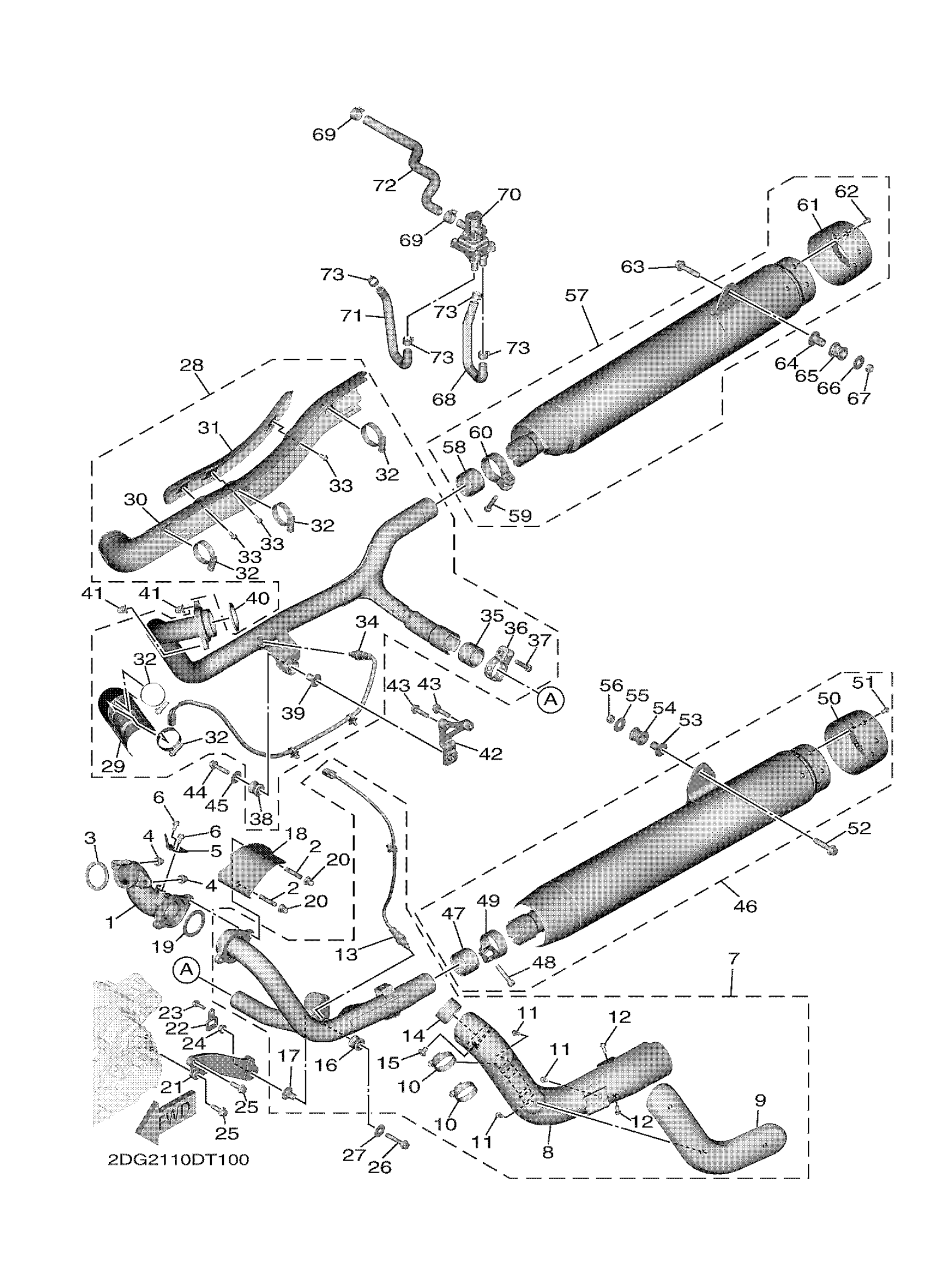

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

2DF-14615-00-00

Unavailable

2

BOLT, STUD

95612-08625-00

$7.49

3

GASKET, EXHAUST PIPE

3EG-14613-00-00

$23.99

4

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

5

PLATE, SILENCER 4

2DG-1468X-00-00

Unavailable

6

BOLT, WITH WASHER(1FK)

90119-06115-00

$4.19

7

EXHAUST PIPE ASSY 1

2DG-14610-00-00

Unavailable

8

PROTECTOR, MUFFLER 1

2DG-14718-00-00

Unavailable

9

PROTECTOR, MUFFLER 2

2DG-14728-00-00

Unavailable

10

HOSE CLAMP ASSY

90450-45001-00

Unavailable

11

BOLT, FLANGE

95022-06010-00

$5.60

12

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

13

SENSOR, OXYGEN

2DF-8592A-00-00

Unavailable

14

GASKET, MUFFLER

1D7-14714-00-00

$34.99

15

BOLT,HEX. SOCKET BUTTON

90111-08086-00

Unavailable

16

DAMPER, MUFFLER

5VY-14747-00-00

Unavailable

17

COLLAR

90387-08021-00

Unavailable

18

COVER, EXHAUST

2DG-14624-00-00

Unavailable

19

GASKET, EXHAUST PIPE

3EG-14613-00-00

$23.99

20

NUT, CROWN

90176-08006-00

Unavailable

21

PLATE, 5

2DF-1478K-00-00

Unavailable

22

BRACKET, 4-1

2DF-1464L-00-00

Unavailable

23

BOLT, FLANGE

90105-06127-00

Unavailable

24

NUT,FLANGE(J10)

95702-08500-00

Unavailable

25

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

26

BOLT, FLANGE

95814-08045-00

Unavailable

27

WASHER, PLATE

90201-08061-00

Unavailable

28

EXHAUST PIPE ASSY 2

2DG-14620-00-00

Unavailable

29

PROTECTOR, MUFFLER 3

2DG-14738-00-00

Unavailable

30

PROTECTOR, MUFFLER 4

2DG-14748-00-00

Unavailable

31

PROTECTOR, SILENCER

2DG-14758-00-00

Unavailable

32

HOSE CLAMP ASSY

90450-45001-00

Unavailable

33

BOLT, FLANGE

95022-06010-00

$5.60

34

SENSOR, OXYGEN

2DF-8592A-30-00

Unavailable

35

GASKET, SILENCER

19D-14755-00-00

Unavailable

36

BAND, MUFFLER

2DF-14725-00-00

Unavailable

37

BOLT,SOCKET

91314-08040-00

Unavailable

38

DAMPER, MUFFLER

5VY-14747-00-00

Unavailable

39

COLLAR

90387-08021-00

Unavailable

40

GASKET, EXHAUST PIPE

3EG-14613-00-00

$23.99

41

NUT, CROWN

90176-08006-00

Unavailable

42

STAY, EXHAUST PIPE 2

2DF-14649-00-00

Unavailable

43

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

44

BOLT, FLANGE

95817-08035-00

Unavailable

45

WASHER, PLATE

90201-08061-00

Unavailable

46

MUFFLER ASSY 1

2DG-14710-00-00

Unavailable

47

GASKET, SILENCER

B71-14755-00-00

Unavailable

48

BOLT, HEXAGON SOCKET HEAD

90110-08112-00

Unavailable

49

BAND, MUFFLER

2DF-14715-00-00

Unavailable

50

CAP

2DG-14799-00-00

Unavailable

51

. BOLT,HEX SOCKET BUTTON

90111-06166-00

Unavailable

52

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable

53

COLLAR (2H7)

90387-10636-00

Unavailable

54

DAMPER, MUFFLER

2DF-14747-00-00

Unavailable

55

WASHER, PLATE

90201-10043-00

Unavailable

56

NUT, U FLANGE

95602-10100-00

Unavailable

57

MUFFLER ASSY 2

2DG-14720-00-00

Unavailable

58

GASKET, SILENCER

B71-14755-00-00

Unavailable

59

BOLT, HEXAGON SOCKET HEAD

90110-08112-00

Unavailable

60

BAND, MUFFLER

5S7-14715-00-00

Unavailable

61

CAP

2DG-14799-00-00

Unavailable

62

. BOLT,HEX SOCKET BUTTON

90111-06166-00

Unavailable

63

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable

64

COLLAR (2H7)

90387-10636-00

Unavailable

65

DAMPER, MUFFLER

2DF-14747-00-00

Unavailable

66

WASHER, PLATE

90201-10043-00

Unavailable

67

NUT, U FLANGE

95602-10100-00

Unavailable

68

HOSE, BEND 1

2DF-14881-00-00

Unavailable

69

CLIP

90467-17003-00

Unavailable

70

AIR INDUCTION SYSTEM ASSY

2DF-14803-00-00

Unavailable

71

HOSE, BEND 2

2DF-14882-00-00

Unavailable

72

HOSE, BEND 3

2DF-14883-00-00

Unavailable

73

CLIP

90468-08104-00

Unavailable
