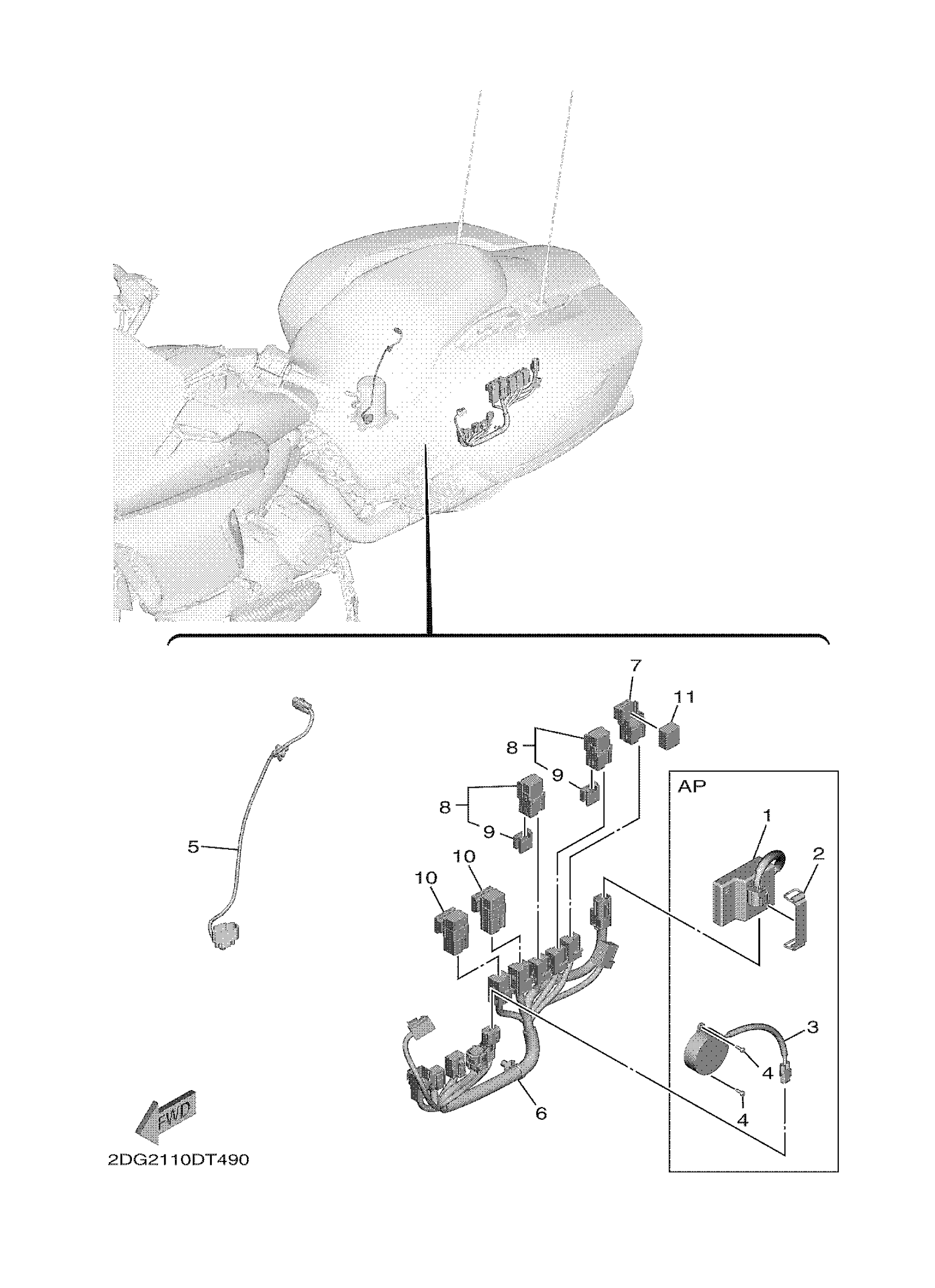

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 ELECTRICAL 3 Diagram

#

Description
Price

1

ALARM UNIT

2DF-82564-00-00

$213.15

2

BAND

2DF-82591-00-00

$9.32

3

ELECTRIC SIREN

2DF-85160-00-00

$101.41

4

BOLT,HEX.SOCKET HEAD

91317-03008-00

$0.22

5

WIRE, LEAD 7

2DF-86177-00-00

Unavailable

6

WIRE, LEAD 5

2DF-86175-00-00

$101.24

7

HOLDER, RELAY

8HG-81952-00-00

Unavailable

8

RELAY ASSY

1TP-81950-00-00

$12.53

9

HOLDER,RELAY

5EA-81952-00-00

$6.34

10

RELAY ASSY

5DM-81950-01-00

$23.63

11

DAMPER, PLATE

90520-15015-00

Unavailable
