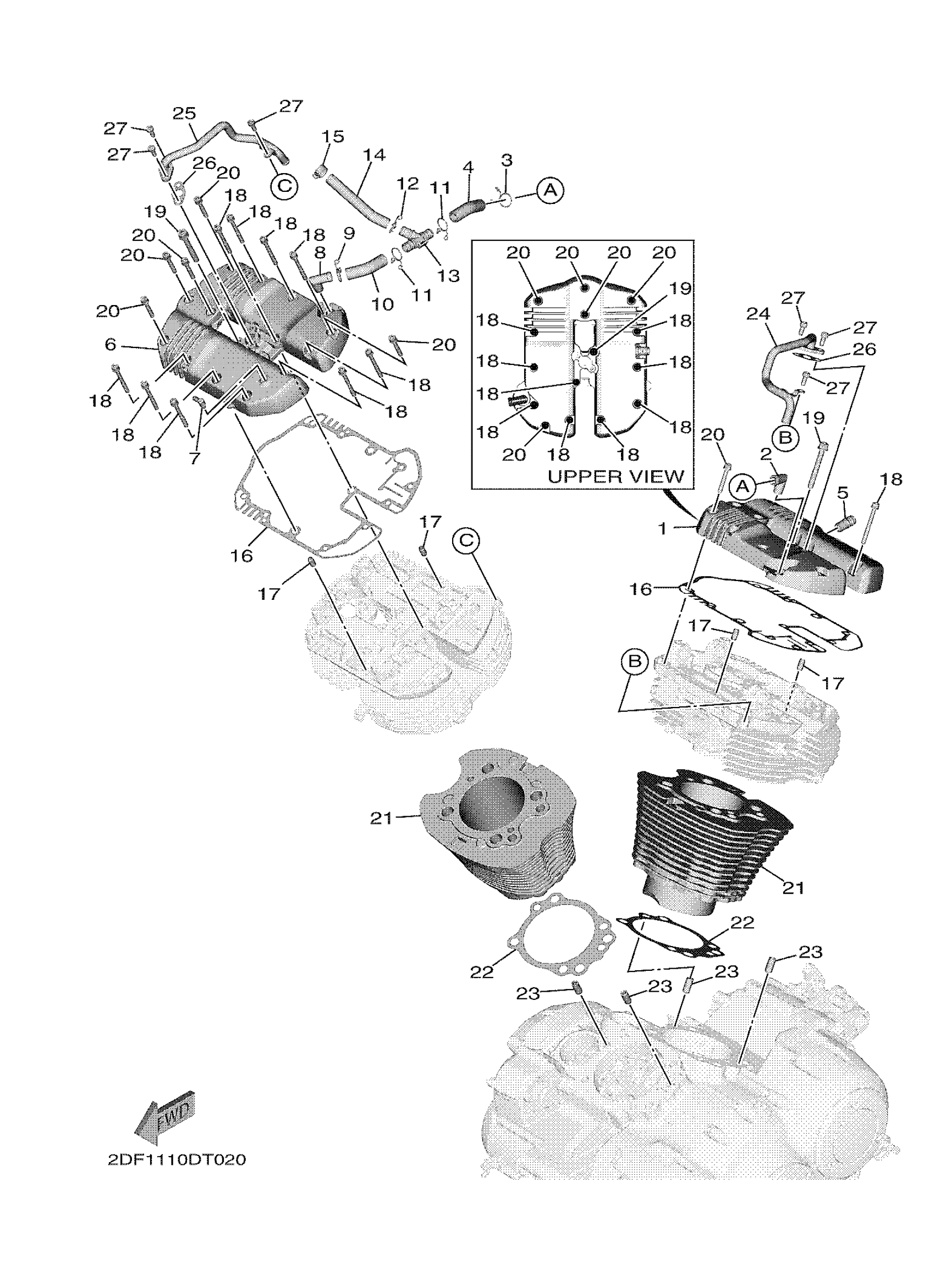

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 CYLINDER Diagram
#
Description
Price
1
COVER, CYLINDER HEAD 1
2DF-11191-10-00
Unavailable
6
COVER, CYLINDER HEAD 2
2DF-11192-10-00
Unavailable
12
CLIP(62Y)
90467-15M14-00
Unavailable
13
WAY 3
90413-14001-00
Unavailable
16
GASKET, HEAD COVER 1
2DF-11193-00-00
Unavailable
17
PIN, DOWEL(3XW)
91808-16023-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
90110-06422-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
90110-08118-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
90110-06421-00
Unavailable
21
CYLINDER 1
2DF-11311-00-00
Unavailable
22
GASKET, CYLINDER
2DF-11351-00-00
Unavailable
23
COLLAR(2JG)
90387-062T5-00
Unavailable
24
PIPE 1
2DF-14871-00-00
Unavailable
25
PIPE 2
2DF-14872-00-00
Unavailable
26
GASKET
5PX-14815-00-00
Unavailable
27
BOLT (33M)
91312-06014-00
Unavailable
