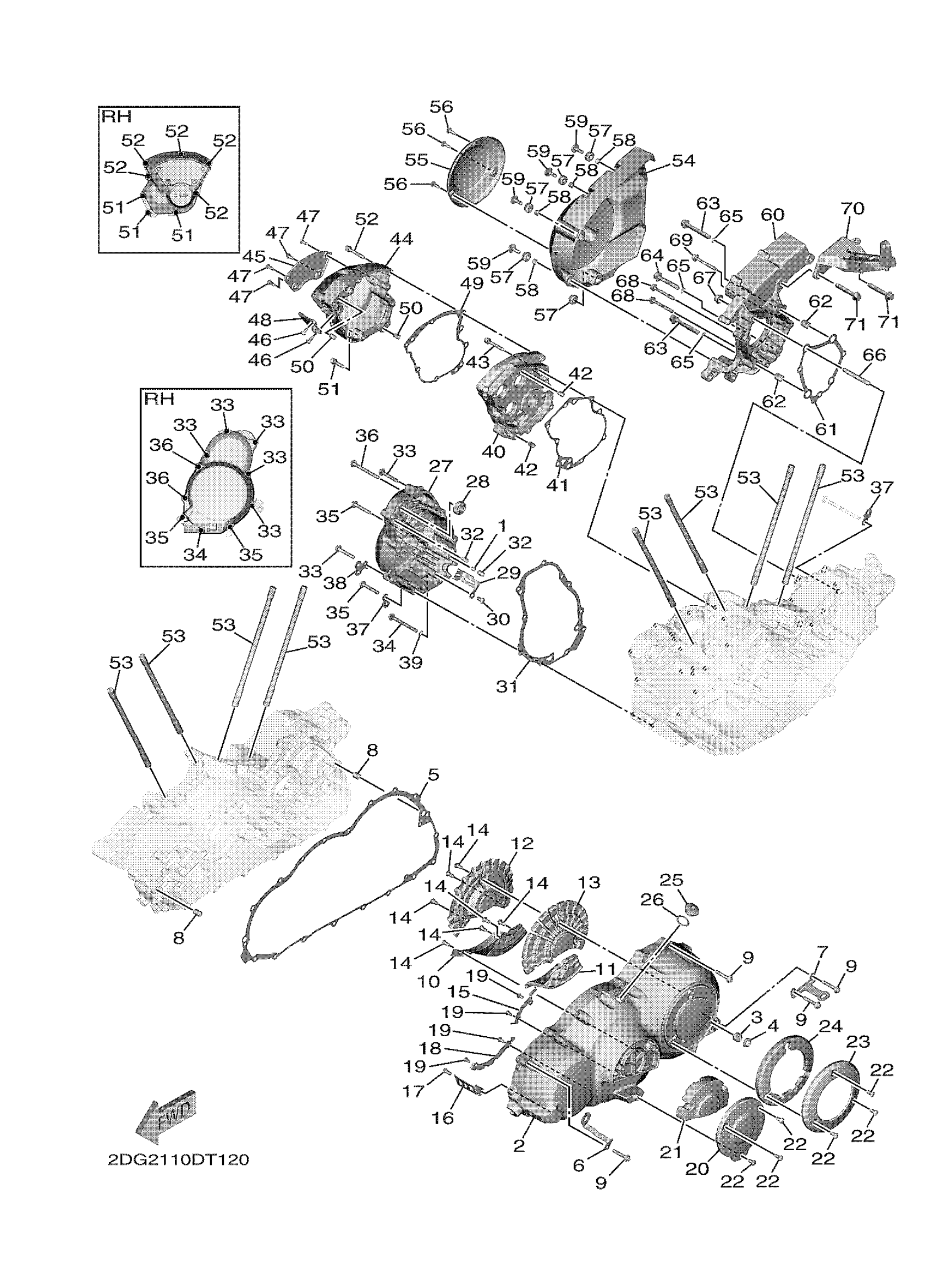

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 CRANKCASE COVER 1 Diagram

#

Description
Price

1

NOZZLE 2

2DF-15148-00-00

Unavailable

2

COVER, CRANKCASE 1

2DG-15411-00-00

Unavailable

3

BEARING

93317-11295-00

$46.99

4

OIL SEAL (4G0)

93102-12224-00

$10.49

5

GASKET, CRANKCASE COVER 1

2DF-15451-00-00

$19.99

6

HOLDER, 2

2DF-1546D-00-00

$8.99

7

CLIP, GUIDE

2DF-15759-00-00

$5.49

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

BOLT, HEXAGON SOCKET HEAD

90110-06403-00

$3.50

10

PLATE

2DF-15113-00-00

$35.99

11

DAMPER 2

2DF-1542B-00-00

Unavailable

12

PLATE

2DF-15589-00-00

$32.99

13

DAMPER 1

2DF-1542A-00-00

Unavailable

14

SCREW

90149-06156-00

$8.49

15

GUIDE 1

2DF-15142-00-00

Unavailable

16

CLAMP 2

2DF-15484-00-00

Unavailable

17

SCREW

90149-06068-00

Unavailable

18

GUIDE

2DF-15143-00-00

Unavailable

19

SCREW

90149-05030-00

Unavailable

20

COVER, GENERATOR 2

2DF-15425-10-00

Unavailable

21

DAMPER 1

2DF-15316-00-00

Unavailable

22

SCREW

90149-06191-00

Unavailable

23

COVER, 1

2DF-15415-10-00

Unavailable

24

DAMPER 3

2DF-1542C-00-00

Unavailable

25

PLUG

5PX-15189-00-00

Unavailable

26

O-RING

93210-20003-00

Unavailable

27

COVER, CRANKCASE 2

2DF-15421-00-00

Unavailable

28

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

29

GUIDE, INLET

2DF-15377-00-00

Unavailable

30

SCREW

90149-06156-00

$8.49

31

GASKET, CRANKCASE COVER 2

2DF-15461-00-00

Unavailable

32

PIN, DOWEL

99530-08012-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD

90110-06418-00

Unavailable

34

BOLT, HEXAGON SOCKET HEAD

90110-06420-00

Unavailable

35

BOLT, HEXAGON SOCKET HEAD

90110-06418-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD

90110-06420-00

Unavailable

37

PLATE, LOCK

2DF-15144-00-00

Unavailable

38

HOLDER

2DF-1546C-00-00

Unavailable

39

GASKET 256113960000

90430-06014-00

Unavailable

40

CRANKCASE COVER ASSY 3

2DF-15430-00-00

Unavailable

41

GASKET, CRANKCASE COVER 3

2DF-15462-00-00

Unavailable

42

PIN, DOWEL

99530-08012-00

Unavailable

43

BOLT, HEXAGON SOCKET HEAD

90110-06423-00

Unavailable

44

COVER, SHIFTER

2DF-15429-00-00

Unavailable

45

COVER, CAP 2

2DF-15427-10-00

Unavailable

46

BOLT,HEX. SOCKET BUTTON

90111-05053-00

Unavailable

47

BOLT,HEX. SOCKET BUTTON

90111-05053-00

Unavailable

48

PROTECTOR, COVER

2DF-15499-00-00

Unavailable

49

GASKET, DECOMPRESSION

2DF-12286-00-00

Unavailable

50

PIN, DOWEL

99530-08012-00

Unavailable

51

BOLT, HEXAGON SOCKET HEAD

90110-06413-00

Unavailable

52

BOLT, HEXAGON SOCKET HEAD

90110-06423-00

Unavailable

53

BOLT, STUD

90116-12020-00

Unavailable

54

COVER, OIL PUMP 2

2DF-15426-01-00

Unavailable

55

COVER

2DF-15779-10-00

Unavailable

56

TAPPING SCREW

90169-05003-00

Unavailable

57

GROMMET (462)

90480-13018-00

Unavailable

58

COLLAR

90387-0611W-00

Unavailable

59

BOLT,HEX. SOCKET BUTTON

90111-06130-00

Unavailable

60

STAY, CRANKCASE COVER 1

2DG-1541A-00-00

Unavailable

61

GASKET 1

2DF-17929-00-00

Unavailable

62

PIN, DOWEL

99530-12016-00

Unavailable

63

BOLT, FLANGE

95817-08055-00

Unavailable

64

BOLT, FLANGE

95814-08045-00

Unavailable

65

O-RING (11M)

93210-07540-00

Unavailable

66

BOLT, STUD

90116-08089-00

Unavailable

67

NUT

90179-08045-00

Unavailable

68

BOLT, FLANGE

95812-06050-00

Unavailable

69

BOLT, FLANGE

90105-06220-00

Unavailable

70

BRACKET

2DG-15199-00-00

Unavailable

71

BOLT, FLANGE

95812-08020-00

Unavailable
