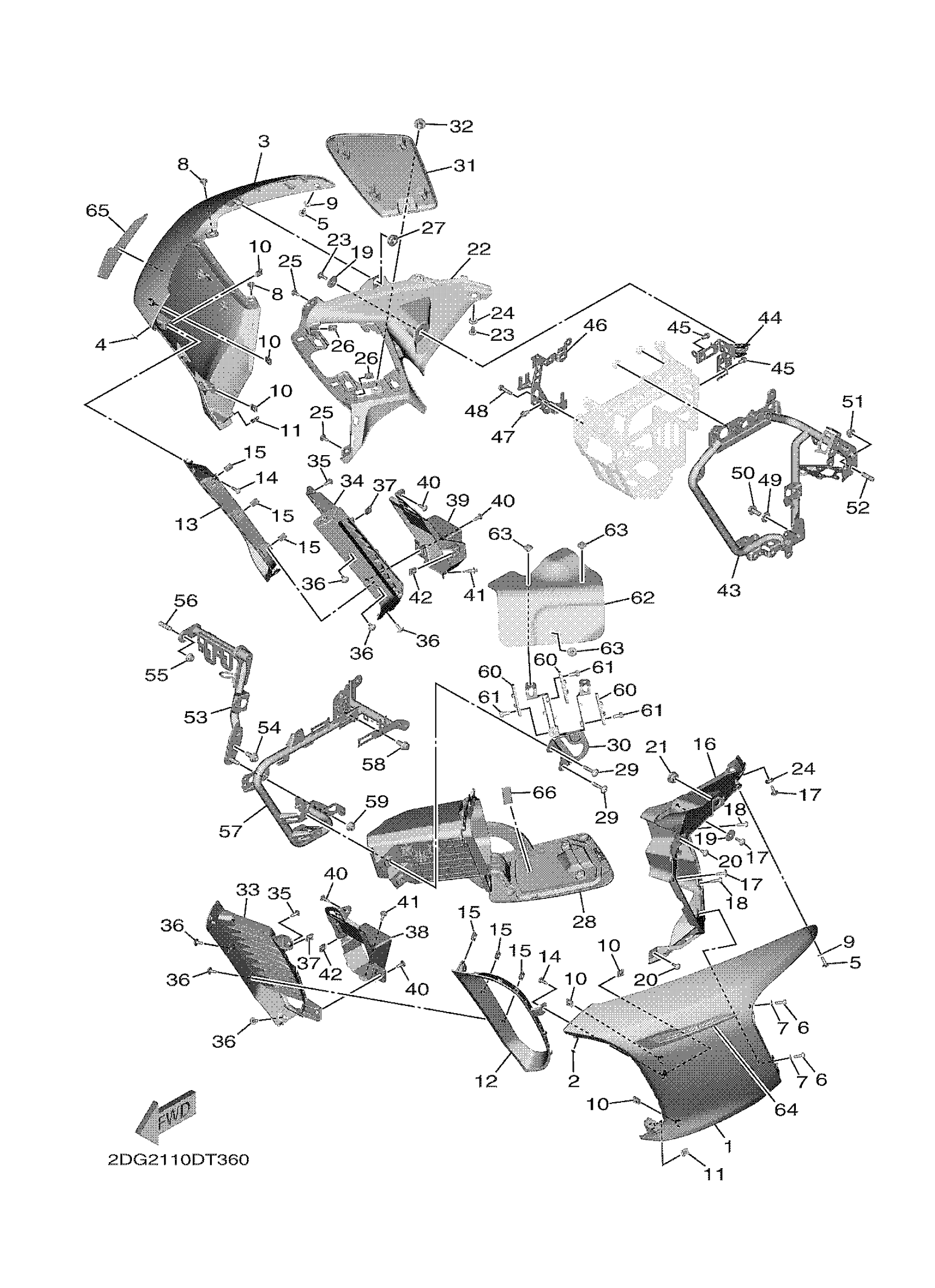

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 COWLING 2 Diagram

#

Description
Price

1

PANEL 1

2DF-2835U-00-P2

$120.99

2

PROTECTOR 1

1S4-2476U-00-00

$2.29

3

PANEL 2

2DF-2835V-00-P2

$122.99

4

PROTECTOR 1

1S4-2476U-00-00

$2.29

5

BOLT,HEX. SOCKET BUTTON

90111-05034-00

$8.49

6

BOLT,HEX. SOCKET BUTTON

90111-05021-00

$5.60

7

WASHER, PLATE(1KT)

90202-05180-00

$10.49

8

BOLT

90111-05011-00

$5.60

9

WASHER, PLATE(1KT)

90202-05180-00

$10.49

10

NUT, SPRING(1YT)

90183-05042-00

$5.60

11

NUT, SPRING

90183-050A6-00

$8.49

12

MOLE COMP. 1

2DF-2830L-10-00

Unavailable

13

MOLE COMP. 2

2DF-2830M-10-00

Unavailable

14

SCREW, TRUSS TAP.

97707-50014-00

$8.49

15

NUT, SPRING

90183-050A6-00

$8.49

16

PANEL, INNER 1

2DF-2836K-00-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-05021-00

$5.60

18

BOLT,HEX. SOCKET BUTTON

90111-05021-00

$5.60

19

COLLAR

90387-05064-00

Unavailable

20

SCREW, TAPPING

90167-05079-00

Unavailable

21

GROMMET

90480-13014-00

Unavailable

22

PANEL, INNER 2

2DF-2836L-00-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-05021-00

$5.60

24

COLLAR

90387-05063-00

Unavailable

25

SCREW, TAPPING

90167-05079-00

Unavailable

26

NUT, SPRING

90183-050A6-00

$8.49

27

GROMMET

90480-13014-00

Unavailable

28

BOX SUB ASSY

2DF-2830N-00-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-06053-00

Unavailable

30

STAY, FUSE BOX

2DF-82171-00-00

Unavailable

31

LID 1

2DF-2839K-00-00

Unavailable

32

RIVET

90269-08009-00

Unavailable

33

DUCT 1

2DF-2838N-00-00

Unavailable

34

DUCT 2

2DF-2838R-00-00

Unavailable

35

SCREW, TRUSS TAP.

97707-50014-00

$8.49

36

BOLT

90111-05002-00

Unavailable

37

NUT, SPRING(1YT)

90183-05042-00

$5.60

38

DUCT 5

2DF-2838J-00-00

Unavailable

39

DUCT 6

2DF-2838P-00-00

Unavailable

40

SCREW, TRUSS TAP.

97707-50014-00

$8.49

41

RIVET

90269-06008-00

Unavailable

42

NUT, SPRING(1YT)

90183-05042-00

$5.60

43

STAY 2

2DF-28357-00-00

Unavailable

44

BRACKET 8

2DF-2833E-00-00

Unavailable

45

BOLT, FLANGE

90105-06105-00

Unavailable

46

BRACKET 9

2DF-2833F-00-00

Unavailable

47

BOLT, FLANGE

90105-06105-00

Unavailable

48

BOLT, FLANGE

90105-06112-00

Unavailable

49

WASHER, PLATE

90201-08020-00

Unavailable

50

BOLT, HEXAGON SOCKET HEAD

90110-08043-00

Unavailable

51

NUT,FLANGE(J10)

95702-08500-00

Unavailable

52

BOLT, STUD

90116-08084-00

Unavailable

53

STAY, SUPPORT 1

2DF-2831T-00-00

Unavailable

54

BOLT, HEXAGON SOCKET HEAD

90110-08043-00

Unavailable

55

NUT,FLANGE(J10)

95702-08500-00

Unavailable

56

BOLT, STUD

90116-08084-00

Unavailable

57

STAY 3

2DF-28358-00-00

Unavailable

58

BOLT, FLANGE DEEP RECESS

95D32-08016-00

Unavailable

59

NUT,FLANGE(J10)

95702-08500-00

Unavailable

60

BRACKET

JT1-83614-00-00

Unavailable

61

BOLT,SOCKET

91317-06012-00

Unavailable

62

FLAP

2DF-21621-00-00

Unavailable

63

RIVET(4PH)

90269-07077-00

Unavailable

64

EMBLEM, 1

2DF-2834C-10-00

Unavailable

65

EMBLEM 2

2DF-2835C-10-00

Unavailable

66

LABEL, CAUTION

4BR-24877-A0-00

Unavailable
