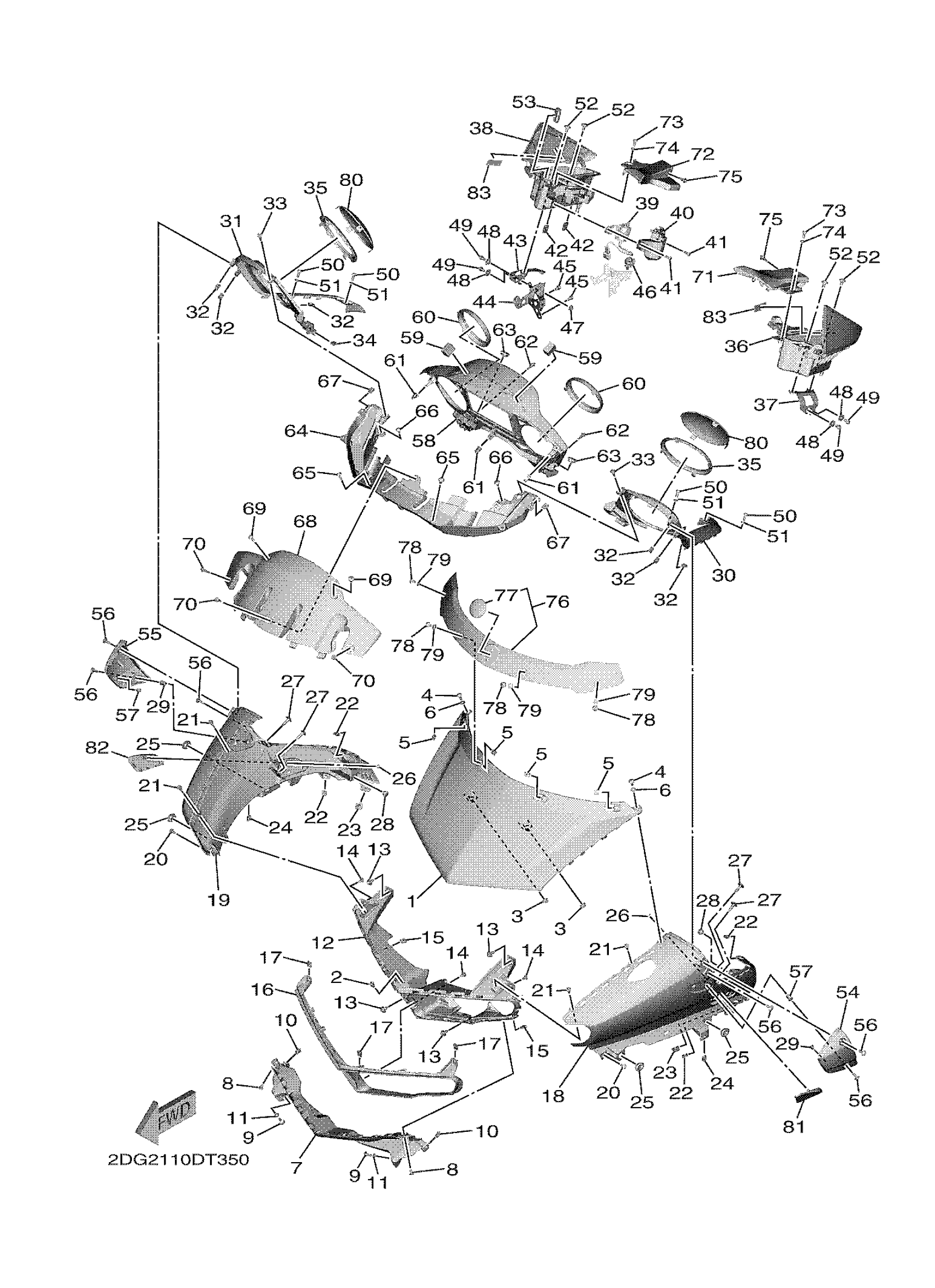

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 COWLING Diagram
#
1
BODY, COWLING
2DF-28351-00-P2
Unavailable
3
PLUG (17J)
90338-10132-00
Unavailable
7
BODY, COWLING 2
2DF-28377-00-P2
Unavailable
16
MOLE 3
2DF-28347-10-00
Unavailable
18
COVER 1
2DF-28219-00-P2
Unavailable
19
COVER 2
2DF-28229-00-P2
Unavailable
20
SCREW, TAPPING
90167-05079-00
Unavailable
21
RIVET
90269-06008-00
Unavailable
23
NUT, SPRING
90183-05008-00
Unavailable
25
GROMMET(4BH)
90480-01559-00
Unavailable
26
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06087-00
Unavailable
28
PLUG (17J)
90338-10132-00
Unavailable
29
NUT(1KT)
90179-05523-00
Unavailable
30
PANEL, CONSOLE 1
2DF-2837L-00-00
Unavailable
31
PANEL, CONSOLE 2
2DF-2837M-00-00
Unavailable
33
RIVET
90269-06008-00
Unavailable
35
MOLE 5
2DF-2834G-00-00
Unavailable
36
BOX SUB ASSY
2DF-2830R-00-00
Unavailable
37
BRACKET 4
2DF-2836G-00-00
Unavailable
38
BOX, SUB-ASSY., 3
2DF-2830T-00-00
Unavailable
39
LOCK SET
2DF-2830U-00-00
Unavailable
40
STOPPER PIN ASSY
2DF-2840L-00-00
Unavailable
41
SCREW, BINDING
98907-05014-00
Unavailable
42
NUT, SPRING
90183-051A0-00
Unavailable
43
BRACKET 5
2DF-2836H-00-00
Unavailable
44
BRACKET 10
2DF-2833G-00-00
Unavailable
45
BOLT, FLANGE
90105-06105-00
Unavailable
46
CLAMP(4TR)
90464-18246-00
Unavailable
47
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
48
WASHER, PLATE
90201-06078-00
Unavailable
49
BOLT, FLANGE
90105-06105-00
Unavailable
50
BOLT,HEX. SOCKET BUTTON
90111-05041-00
Unavailable
51
WASHER, PLATE
90202-05006-00
Unavailable
52
BOLT,HEX. SOCKET BUTTON
90111-06119-00
Unavailable
53
GROMMET
2DF-28187-00-00
Unavailable
54
COVER, HANDLE UPPER 1
2DG-26143-00-00
Unavailable
55
COVER, HANDLE UPPER 2
2DG-26145-00-00
Unavailable
56
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
57
PLUG(1NL)
90338-07180-00
Unavailable
58
COVER, METER
2DF-83559-00-00
Unavailable
59
DAMPER, PLATE
90520-19001-00
Unavailable
60
MOLE 4
2DF-28348-00-00
Unavailable
62
RIVET
90269-06008-00
Unavailable
63
GROMMET(4BH)
90480-01559-00
Unavailable
64
PANEL, INNER 5
2DF-2836R-00-00
Unavailable
65
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
66
SCREW, TAPPING
90167-05079-00
Unavailable
68
HOOD 1
2DF-2835E-00-00
Unavailable
69
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
70
RIVET
90269-06008-00
Unavailable
71
PROTECTOR 1
2DF-2834V-00-00
Unavailable
72
PROTECTOR 2
2DF-2834W-00-00
Unavailable
73
BOLT,HEX. SOCKET BUTTON
90111-05041-00
Unavailable
74
WASHER, PLATE
90202-05006-00
Unavailable
75
RIVET
90269-06008-00
Unavailable
76
BODY, COWLING
2DF-2830A-10-00
Unavailable
77
EMBLEM
1RC-2413B-02-00
Unavailable
78
BOLT,HEX. SOCKET BUTTON
90111-05019-00
Unavailable
80
GRILLE, SPEAKER 1
2DF-88163-00-00
Unavailable
81
SEAL 1
2DG-28218-00-00
Unavailable
82
SEAL 2
2DG-28228-00-00
Unavailable
83
LABEL, CAUTION
2DF-24877-00-00
Unavailable
