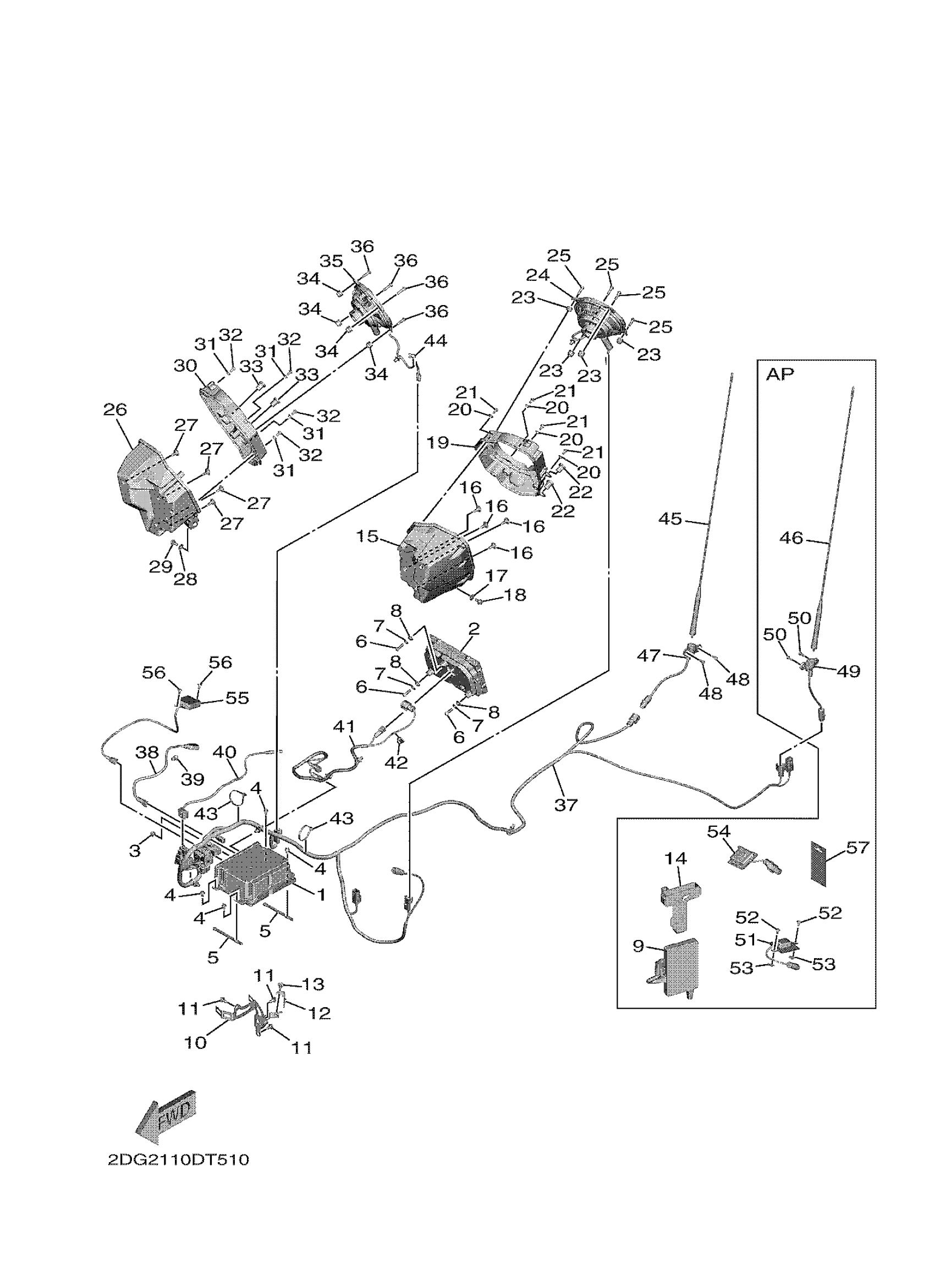

Yamaha XV19BJL (STAR ELUDER) 2DG20 2018 AUDIO EQUIPMENT 1 Diagram

#

Description
Price

1

AMP. POWER

2DF-88132-00-00

$6,296.99

2

CONT, LCD

2DF-88101-00-00

Unavailable

3

CAP, CONNECTOR

2DG-859C4-00-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

$7.49

5

HOLDER

2DF-28337-00-00

$31.99

6

BOLT, BUTTON HEAD

92012-06020-00

$8.49

7

WASHER, PLATE

90201-06045-00

$8.49

8

COLLAR

90387-06184-00

$7.49

9

BLACK BOX, CB

2DF-88182-00-00

Unavailable

10

BRKT., INNER 1

2DF-2138T-00-00

Unavailable

11

BOLT, FLANGE

90105-06064-00

$3.81

12

BRACKET

2DF-2256L-00-00

$4.37

13

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

$8.49

14

BAND

2DF-21646-00-00

$24.99

15

BOX, SPEAKER 1

2DF-88162-00-00

Unavailable

16

BOLT

90109-06084-00

Unavailable

17

COLLAR

90387-06184-00

$7.49

18

BOLT, FLANGE DEEP RECESS

95D32-06014-00

Unavailable

19

COVER 1

2DF-8818B-00-00

Unavailable

20

COLLAR

90387-06255-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-05048-00

Unavailable

22

NUT

90179-06524-00

Unavailable

23

NUT(1WT)

90179-06520-00

Unavailable

24

SPEAKER 1

2DF-88161-00-00

Unavailable

25

BOLT, BUTTON HEAD

92012-06020-00

$8.49

26

BOX, SPEAKER 2

2DF-88172-00-00

Unavailable

27

BOLT

90109-06084-00

Unavailable

28

COLLAR

90387-06184-00

$7.49

29

BOLT, FLANGE DEEP RECESS

95D32-06014-00

Unavailable

30

COVER 2

2DF-8818C-00-00

Unavailable

31

COLLAR

90387-06255-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-05048-00

Unavailable

33

NUT

90179-06524-00

Unavailable

34

NUT(1WT)

90179-06520-00

Unavailable

35

SPEAKER 1

2DF-88161-00-00

Unavailable

36

BOLT, BUTTON HEAD

92012-06020-00

$8.49

37

CORD, AMP

2DG-88136-00-00

Unavailable

38

LEAD, USB 1

2DF-821F1-00-00

Unavailable

39

CLAMP

90464-30011-00

Unavailable

40

LEAD, AUX

2DF-821G1-00-00

Unavailable

41

CORD ASSY

2DF-82174-00-00

Unavailable

42

CLAMP(1GJ)

90464-54086-00

Unavailable

43

CLAMP(4FM)

90464-15195-00

Unavailable

44

CLAMP

90464-16061-00

Unavailable

45

POLE, ANTENNA

2DF-88141-00-00

Unavailable

46

POLE, ANTENNA

2DF-88143-00-00

Unavailable

47

BRACKET, ANTENNA

2DG-88144-00-00

Unavailable

48

BOLT

91312-05010-00

Unavailable

49

BRACKET, ANTENNA

2DG-88144-10-00

Unavailable

50

BOLT

91312-05010-00

Unavailable

51

ANTENNA, GPS

2DF-881A1-00-00

Unavailable

52

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

53

NUT, SPRING(1YT)

90183-05042-00

Unavailable

54

ANTENNA COMP

2DF-86269-00-00

Unavailable

55

ANTENNA, BLUETOOTH

2DF-881A2-00-00

Unavailable

56

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

57

NAVIGATION TICKET

2DF-881C1-00-00

Unavailable
