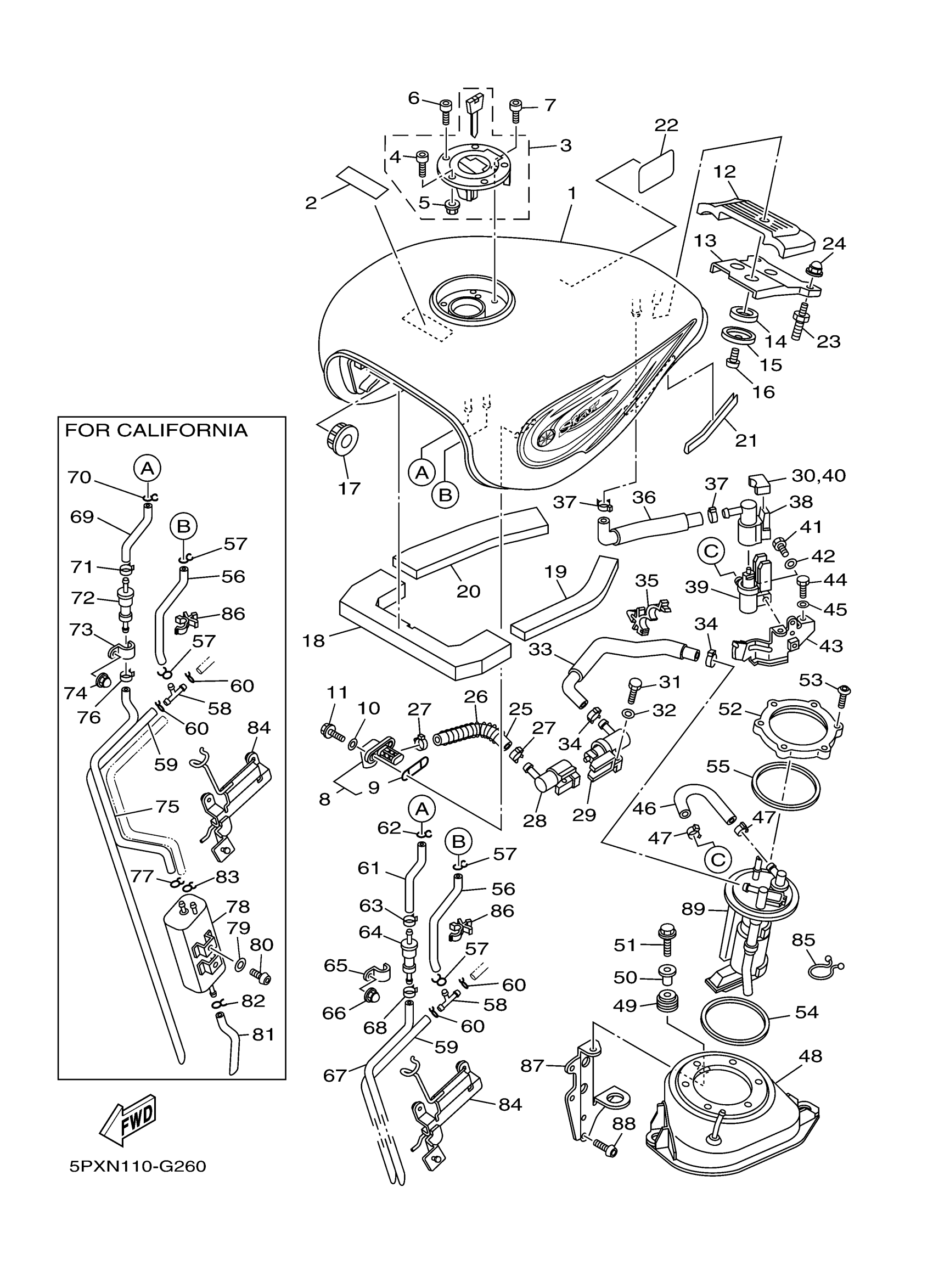

Yamaha XV17PCXR (ROAD STAR WARRIOR) 5PXN 2008 FUEL TANK Diagram
#
1
FUEL TANK COMP. (DEEP RED METALLIC K)
5PX-Y2410-10-X4
Unavailable
3
CAP ASSY
5PX-24602-02-00
Unavailable
8
FILTER ASSY
5PX-24560-00-00
Unavailable
12
DAMPER, LOCATING 2
5PX-24182-01-00
Unavailable
14
DAMPER, LOCATING 3
5PX-24183-01-00
Unavailable
15
WASHER, SPECIAL
5PX-24186-01-00
Unavailable
16
BOLT, BUTTON HEAD
92017-08012-00
Unavailable
17
DAMPER, LOCATING
4H7-24181-00-00
Unavailable
18
DAMPER, PLATE 3
5PX-2414K-00-00
Unavailable
19
DAMPER, PLATE 1
5PX-2414H-00-00
Unavailable
20
DAMPER, PLATE 2
5PX-2414J-00-00
Unavailable
21
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
22
SEAL,2
1JK-21735-00-00
Unavailable
23
BOLT 1
5PX-24176-01-00
Unavailable
24
NUT, CROWN(1FN)
90176-06055-00
Unavailable
25
PIPE, FUEL 1
5PX-24311-10-00
Unavailable
26
SPRING
5PX-24393-00-00
Unavailable
27
CLIP
5PX-2411M-00-00
Unavailable
28
FUEL PIPE JOINT COMP. 2
5PX-24305-00-00
Unavailable
29
FUEL PIPE JOINT COMP. 1
5PX-24304-01-00
Unavailable
30
DAMPER, LOCATING 4
5PX-24184-01-00
Unavailable
31
BOLT(3JK)
97027-05020-00
Unavailable
32
WASHER(1RW)
92907-05600-00
Unavailable
33
PIPE 2
5PX-24312-10-00
Unavailable
34
CLIP
5PX-2411M-00-00
Unavailable
35
CLAMP
90464-16006-00
Unavailable
36
PIPE 3
5PX-24313-10-00
Unavailable
37
CLIP
5PX-2411M-00-00
Unavailable
38
FUEL PIPE JOINT COMP. 2
5PX-24305-00-00
Unavailable
39
FUEL PIPE JOINT COMP. 1
5PX-24304-11-00
Unavailable
40
DAMPER, LOCATING 4
5PX-24184-01-00
Unavailable
41
BOLT(3JK)
97027-05020-00
Unavailable
42
WASHER(1RW)
92907-05600-00
Unavailable
43
BRACKET, CANISTOR
5PX-2419F-00-00
Unavailable
44
BOLT(4GV)
97017-05012-00
Unavailable
45
WASHER(1RW)
92907-05600-00
Unavailable
46
PIPE 4
5PX-24314-10-00
Unavailable
47
CLIP
5PX-2411M-00-00
Unavailable
48
TANK, FUEL
5PX-24280-00-00
Unavailable
49
GROMMET
90480-18003-00
Unavailable
50
COLLAR
90387-0614M-00
Unavailable
51
BOLT, FLANGE
95817-06030-00
Unavailable
52
BRACKET, FUEL PUMP
5PX-24491-00-00
Unavailable
53
BOLT,HEX. SOCKET BUTTON
90111-05026-00
Unavailable
54
O-RING
5PX-24486-00-00
Unavailable
55
PLATE, DAMPER
5PX-24145-00-00
Unavailable
56
PIPE, OVERFLOW
5PX-24318-01-00
Unavailable
57
CLIP
90467-090A2-00
Unavailable
58
WAY 3 (10L)
90413-07007-00
Unavailable
59
PIPE 10
5PX-24321-01-00
Unavailable
60
CLIP
90467-090A2-00
Unavailable
61
PIPE 11
5PX-24322-20-00
Unavailable
62
CLIP
90467-090A2-00
Unavailable
63
CLIP
90467-09001-00
Unavailable
64
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
65
CLAMP 2
5PX-24136-00-00
Unavailable
66
NUT, CROWN(47X)
90176-05054-00
Unavailable
67
PIPE 12
5PX-24323-01-00
Unavailable
68
CLIP
90467-09001-00
Unavailable
69
PIPE 11
5PX-24322-20-00
Unavailable
70
CLIP
90467-090A2-00
Unavailable
71
CLIP
90467-09001-00
Unavailable
72
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
73
CLAMP 2
5PX-24136-00-00
Unavailable
74
NUT, CROWN(47X)
90176-05054-00
Unavailable
75
PIPE 12
5PX-24323-20-00
Unavailable
76
CLIP
90467-09001-00
Unavailable
77
CLIP
90467-090A2-00
Unavailable
78
CANISTER ASSY
5PX-24170-00-00
Unavailable
79
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
80
BOLT
90111-06046-00
Unavailable
81
PIPE 14
5PX-24325-00-00
Unavailable
82
CLIP
90467-100A1-00
Unavailable
83
CLIP
90467-090A2-00
Unavailable
84
STAY
5PX-24364-01-00
Unavailable
85
CLAMP
90464-25267-00
Unavailable
86
CLAMP(6M7)
90464-10M32-00
Unavailable
87
STAY, SIDE COVER 1
5PX-2172E-00-00
Unavailable
88
BOLT, BUTTON
92017-08025-00
Unavailable
89
FUEL PUMP COMP.
5PX-13907-01-00
Unavailable
