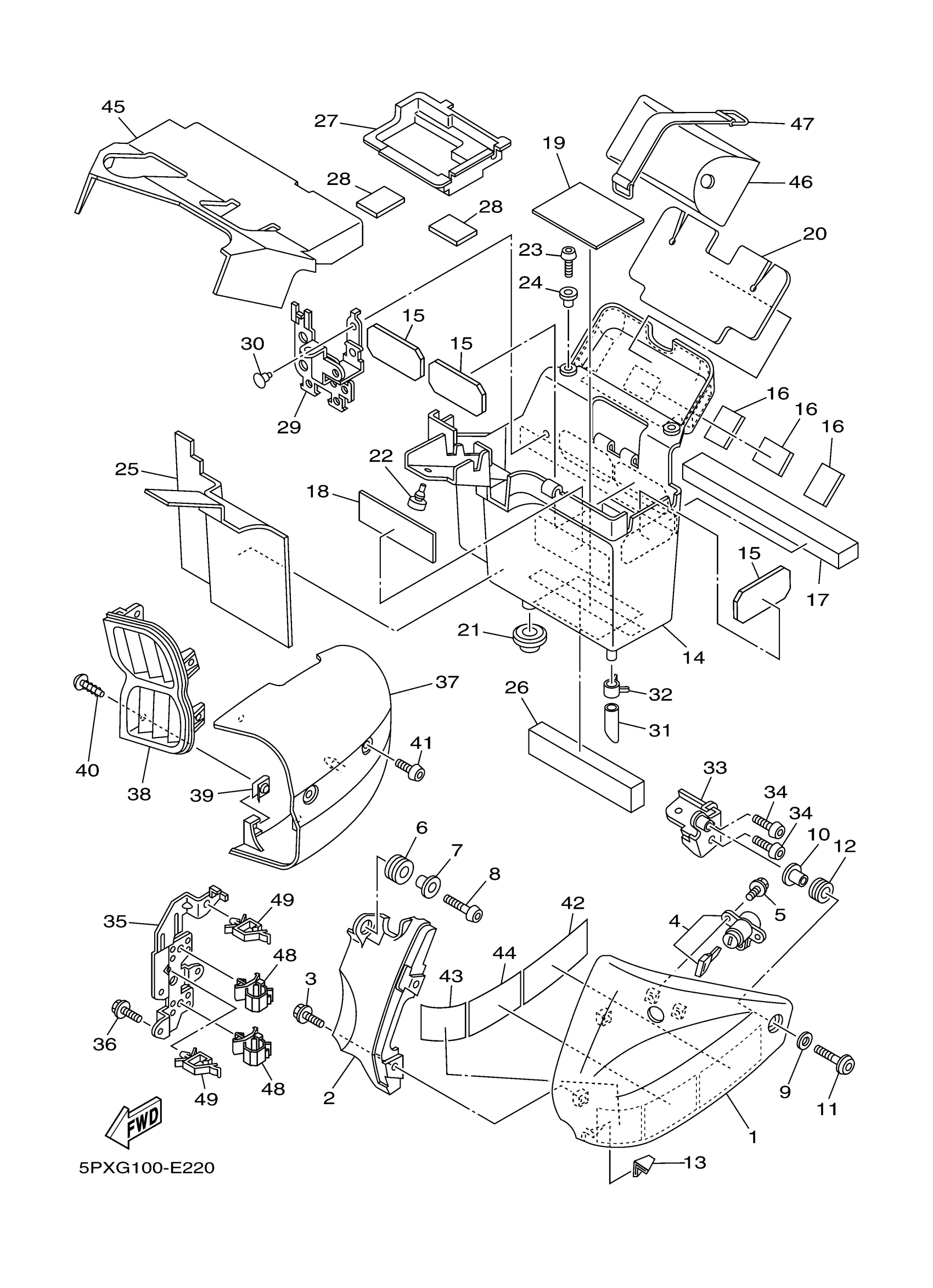

Yamaha XV17PCWC-F (ROAD STAR WARRIOR WITH FLAMES CA) 5PXL0 2007 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5PX-21711-00-P0

Unavailable

2

COVER 9

5PX-2117X-00-P0

$101.99

3

BOLT, FLANGE

95817-06014-00

Unavailable

4

ROTOR SET

5PX-W2470-00-00

Unavailable

5

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

6

GROMMET (16R)

90480-14329-00

$8.49

7

COLLAR(4BH)

90387-066Y6-00

$9.49

8

BOLT, BUTTON HEAD

92014-06020-00

Unavailable

9

WASHER, PLATE

90201-06M01-00

$8.49

10

COLLAR (2H1)

90387-06638-00

$9.49

11

SCREW

90149-06023-00

$5.60

12

GROMMET (461)

90480-12067-00

Unavailable

13

GUIDE

5PX-2171H-00-00

Unavailable

14

BOX, BATTERY

5PX-2177G-00-00

$58.99

15

PROTECTOR

5PX-21652-00-00

Unavailable

16

DAMPER

5JW-2139X-00-00

Unavailable

17

DAMPER

5PX-21747-00-00

Unavailable

18

DAMPER, LOCATING 1

5PX-21778-00-00

Unavailable

19

DAMPER, LOCATING 2

5PX-21779-00-00

Unavailable

20

DAMPER

5PX-2174Y-01-00

Unavailable

21

GROMMET(42X)

90480-20384-00

Unavailable

22

DAMPER, SEAT

35T-24724-00-00

Unavailable

23

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

24

COLLAR (3L1)

90387-07717-00

Unavailable

25

SEAL 1

5PX-21732-00-00

Unavailable

26

DAMPER

5PX-2174X-00-00

Unavailable

27

COVER, BATTERY

5PX-82129-00-00

Unavailable

28

DAMPER

5JW-2139X-00-00

Unavailable

29

BRACKET 1

5PX-2172K-00-00

Unavailable

30

RIVET(4PH)

90269-07077-00

Unavailable

31

HOSE (L35)

90445-11027-00

Unavailable

32

CLIP(3BM)

90467-10135-00

Unavailable

33

BRACKET 1

5PX-2175T-00-00

Unavailable

34

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

35

STAY, SIDE COVER 2

5PX-2174E-01-00

Unavailable

36

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

37

COVER, SIDE 3

5PX-21731-00-00

Unavailable

38

GRILL, AIR INTAKE 1

5PX-2837N-00-00

Unavailable

39

NUT, SPRING(1YT)

90183-05042-00

Unavailable

40

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

41

SCREW(4DN)

90149-06302-00

Unavailable

42

PLATE, EPA 2 (CALIFORNIA)

5PX-2179R-50-00

Unavailable

42

PLATE, EPA (NON CALIFORNIA)

5PX-2179W-50-00

Unavailable

43

PLATE, ROUTING 2

5PX-21686-00-00

Unavailable

44

PLATE,ROUTING

4YN-21684-00-00

Unavailable

45

COVER

5PX-24796-00-00

Unavailable

46

TOOL KIT

5PX-28100-10-00

Unavailable

47

BAND,BATTERY

7H3-82131-00-00

Unavailable

48

CLAMP

90464-20002-00

Unavailable

49

CLAMP (1J7)

90464-16021-00

Unavailable
