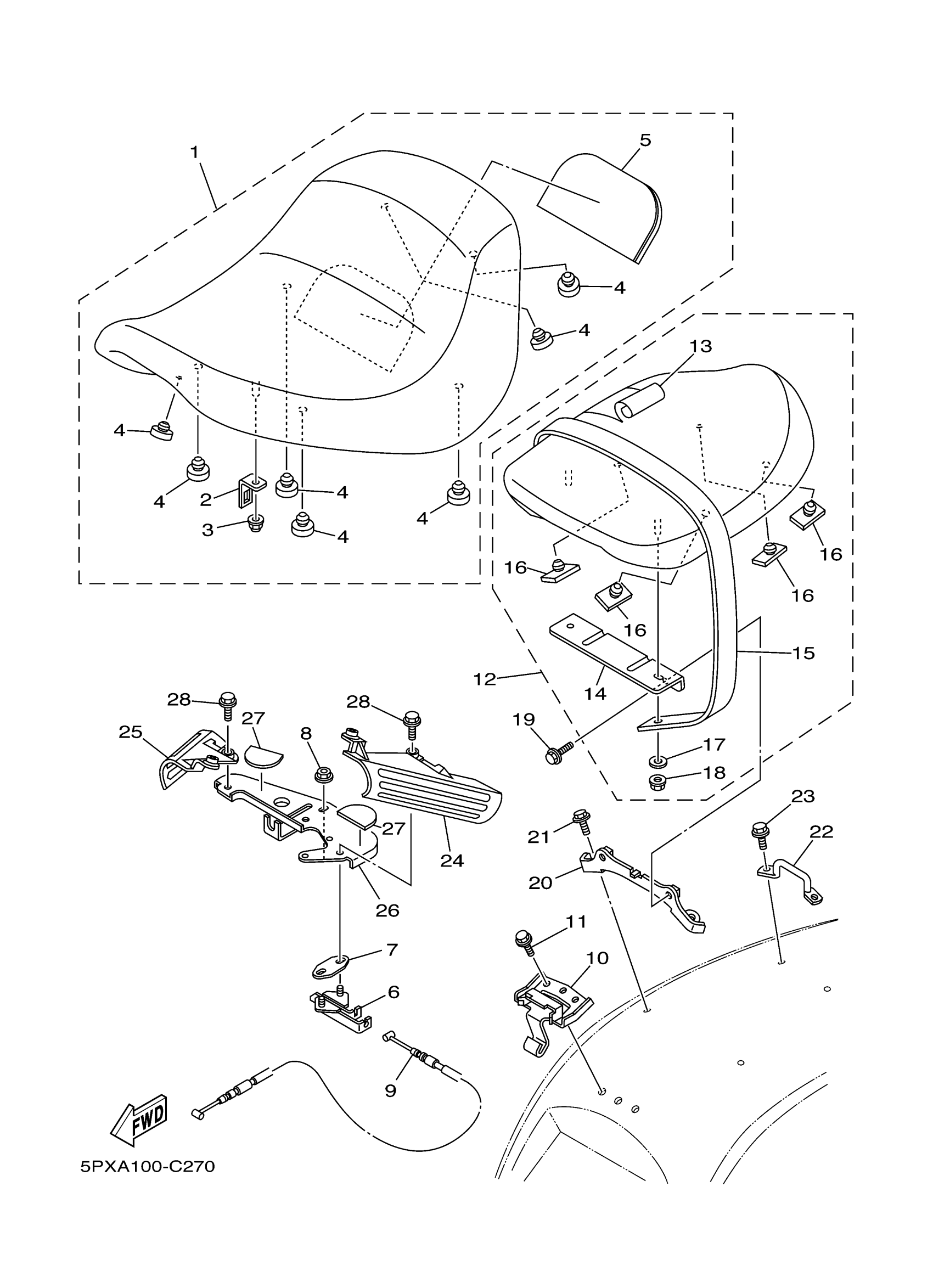

Yamaha XV17PCWC-F (ROAD STAR WARRIOR WITH FLAMES CA) 5PXL0 2007 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5PX-24710-00-00

Unavailable

2

STAY, REAR

5PX-24719-00-00

$5.49

3

NUT,SELF-LOCKING

95607-06200-00

$12.49

4

PAD, SEAT

22W-24741-00-00

$8.99

5

DAMPER, SEAT

5PX-24723-01-00

Unavailable

6

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

7

PLATE

4BP-24792-00-00

Unavailable

8

NUT, FLANGE(4MV)

95707-06500-00

$1.23

9

CABLE, SEAT LOCK

5PX-2478E-00-00

$20.99

10

BRACKET

5PX-2475N-10-00

Unavailable

11

BOLT, SMALL FLANGE

95027-08016-00

$8.49

12

TANDEM SEAT ASSY

5PX-24750-00-00

Unavailable

13

. SEAT COVER COMP

5PX-2470F-20-00

Unavailable

14

. BRACKET, SEAT LEVER 2

5PX-2475J-00-00

Unavailable

15

. BAND, SEAT

5PX-24734-00-00

Unavailable

16

DAMPER, SEAT

509-24724-00-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

NUT,SELF-LOCKING

95607-06200-00

$12.49

19

BOLT, SMALL FLANGE

95027-08016-00

$8.49

20

BRACKET, SEAT LEVER 1

5PX-2475H-00-00

Unavailable

21

BOLT, SMALL FLANGE

95027-08016-00

$8.49

22

BRACKET 6

5PX-2475R-00-00

Unavailable

23

BOLT, SMALL FLANGE

95027-08016-00

$8.49

24

PROTECTOR,1

5PX-2476U-00-00

Unavailable

25

PROTECTOR,2

5PX-2476V-00-00

Unavailable

26

BRACKET, SEAT 1

5PX-21341-00-00

Unavailable

27

SEAL 2

5PX-21735-00-00

Unavailable

28

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable
