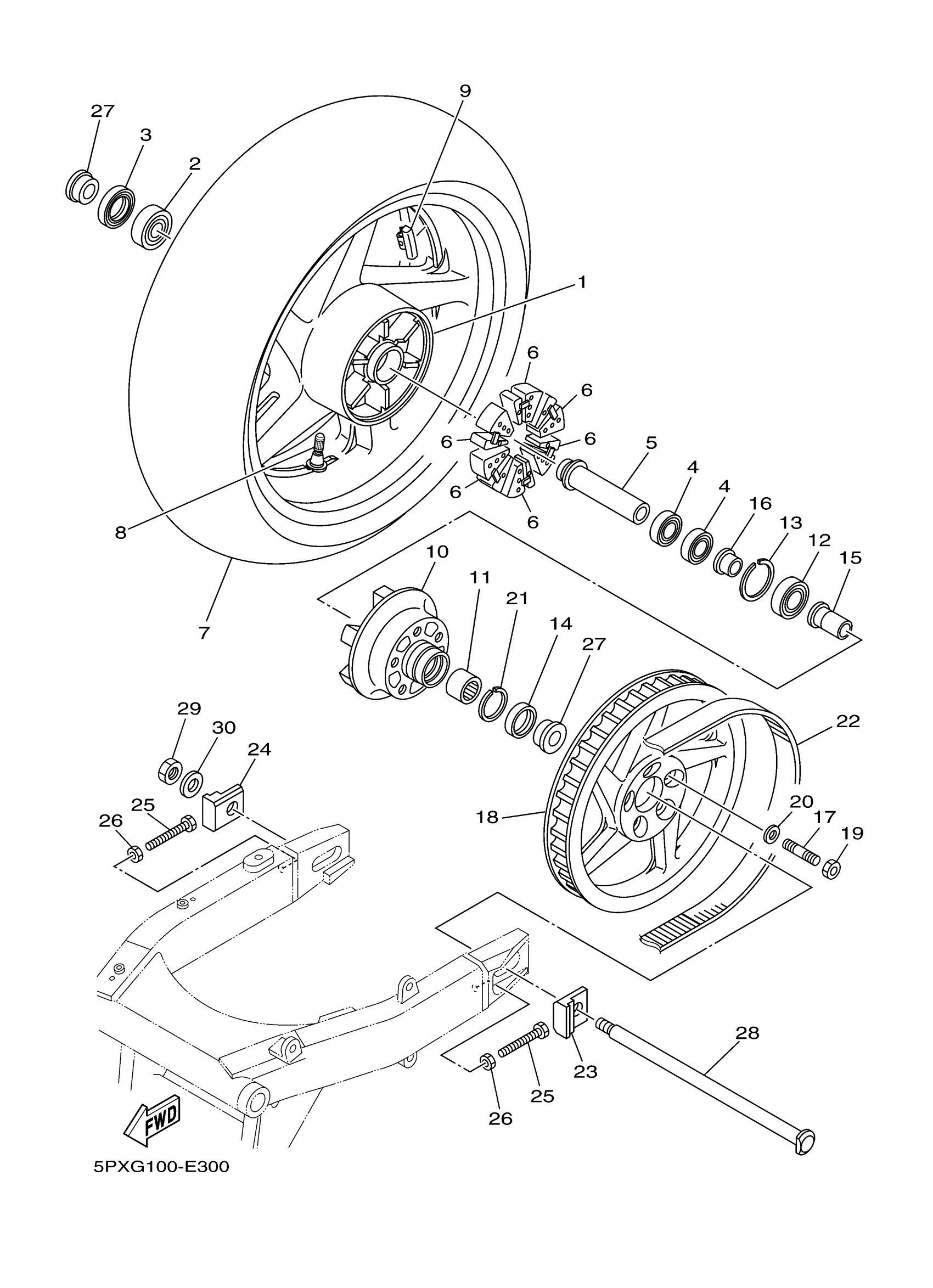

Yamaha XV17PCWC-F (ROAD STAR WARRIOR WITH FLAMES CA) 5PXL0 2007 REAR WHEEL Diagram

CAST WHEEL, REAR

5PX-25338-20-7B

Unavailable

BEARING(3BC)

93306-30437-00

$66.99

OIL SEAL(3BC)

93106-30029-00

$15.99

BEARING(8AB)

93306-00444-00

$41.99

SPACER, BEARING

5PX-25317-00-00

Unavailable

DAMPER

4WM-25364-00-00

Unavailable

TIRE (200/50ZR-17M/C75WBT020R)

94120-17008-00

Unavailable

TIRE (200/50 ZR-17M/C 75WD220)

94120-17009-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

BALANCER, WHEEL

5MT-25398-00-00

$17.49

BALANCER, WHEEL

5MT-25398-10-00

$17.49

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

CLUTCH, HUB

5PX-25366-00-00

Unavailable

BEARING

93311-32698-00

$73.99

BEARING

93306-20551-00

$58.99

CIRCLIP(26H)

99009-52500-00

Unavailable

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

COLLAR, WHEEL

4WM-25376-10-00

Unavailable

COLLAR, WHEEL

4WM-25377-00-00

Unavailable

BOLT, STUD

95617-12630-00

Unavailable

SPROCKET, DRIVEN (70T)

5PX-25470-21-00

Unavailable

NUT, U

95614-12100-00

Unavailable

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

CIRCLIP

93450-35163-00

Unavailable

BELT

5PX-46241-11-00

Unavailable

PULLER, CHAIN 1

5PX-25388-00-00

Unavailable

PULLER, CHAIN 2

5PX-25389-00-00

Unavailable

BOLT(3GM)

90101-08766-00

Unavailable

NUT(6TA)

95337-08600-00

Unavailable

COLLAR(3BC)

90387-202X9-00

Unavailable

AXLE, WHEEL

5PX-25381-00-00

Unavailable

NUT, SELF-LOCKING

90185-18009-00

Unavailable

WASHER, PLATE (1J7)

90201-18620-00

Unavailable
