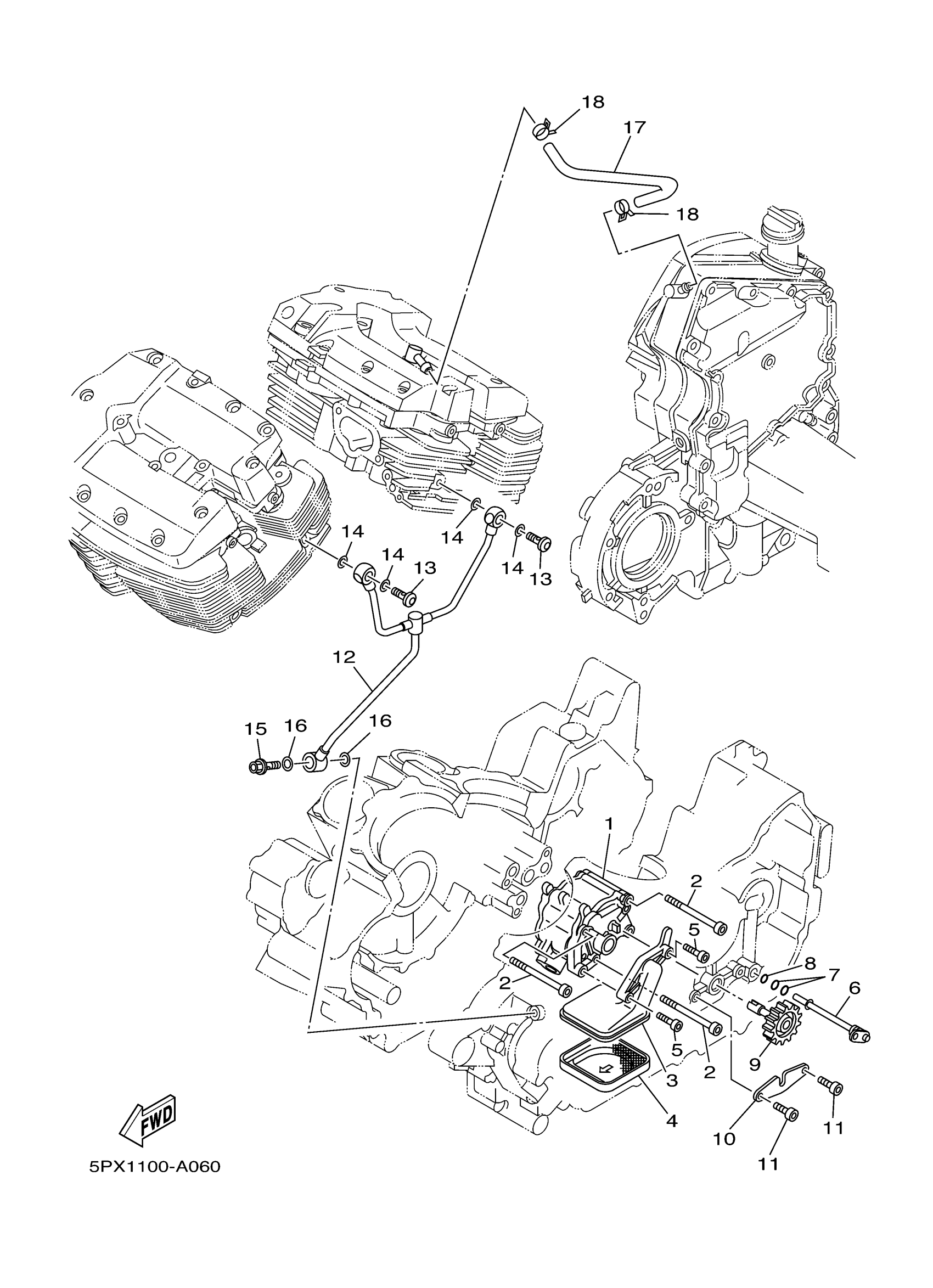

Yamaha XV17PCWC-F (ROAD STAR WARRIOR WITH FLAMES CA) 5PXL0 2007 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5PX-13300-03-00

Unavailable

2

BOLT,SOCKET

91317-06080-00

$5.60

3

HOUSING, STRAINER

4WM-13412-00-00

Unavailable

4

STRAINER, OIL

4WM-13411-00-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-06058-00

Unavailable

6

PIPE, DELIVERY 2

4WM-13171-00-00

Unavailable

7

O-RING (1J7)

93210-09350-00

$7.49

8

O-RING(26H)

93210-06667-00

$7.49

9

DRIVEN GEAR ASSY

5YU-13360-00-00

$125.99

10

PLATE, STOPPER 1

4WM-1357N-01-00

Unavailable

11

BOLT,SOCKET

91317-06016-00

$1.25

12

OIL PIPE COMP. 1

5PX-13405-00-00

Unavailable

13

BOLT, UNION

90401-10175-00

$14.99

14

GASKET

90430-10188-00

$6.99

15

BOLT, UNION

90401-08001-00

$7.49

16

GASKET

90430-08119-00

Unavailable

17

HOSE, OIL 1

5PX-13464-00-00

Unavailable

18

CLIP

90467-110A0-00

Unavailable
