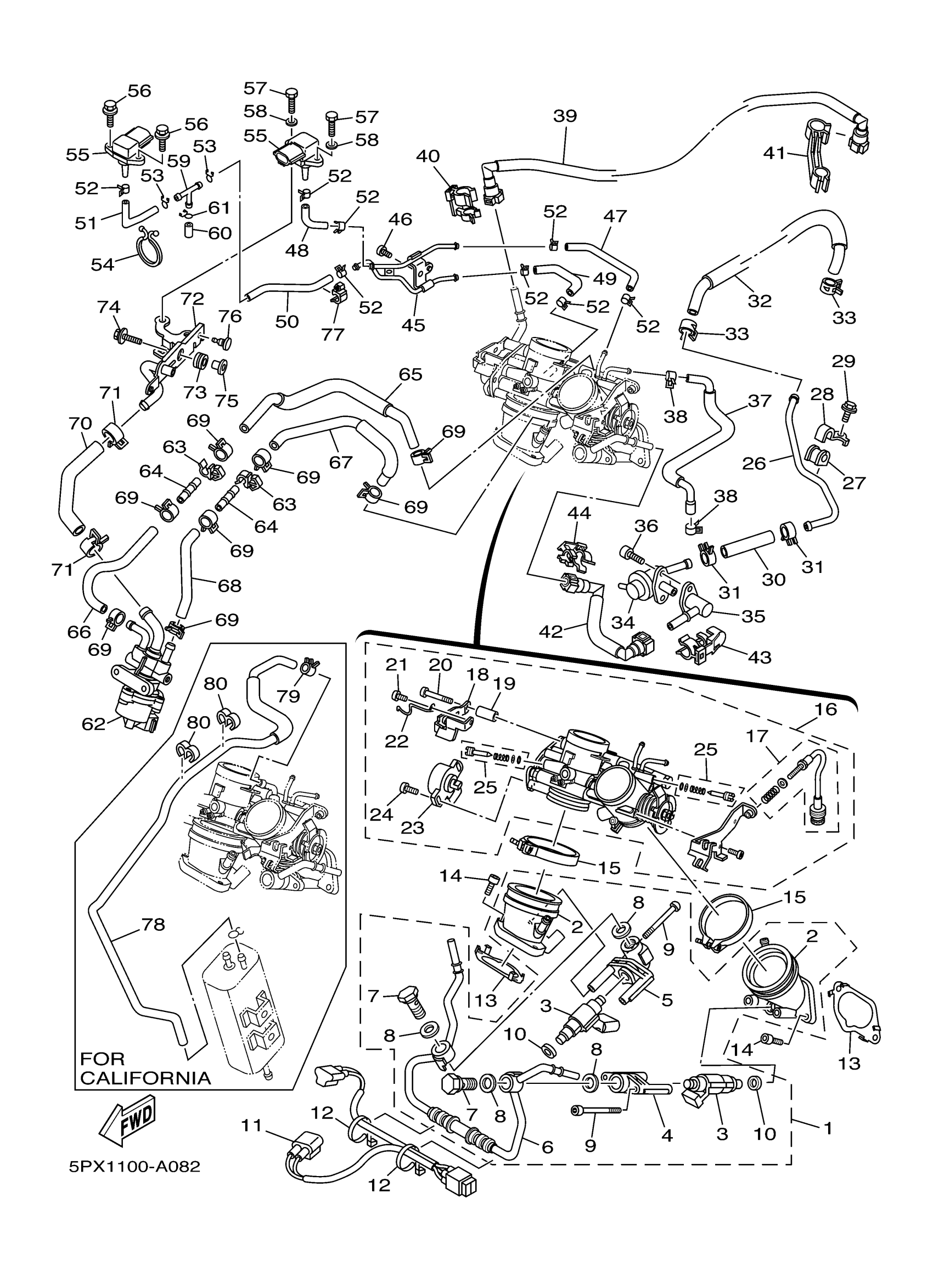

Yamaha XV17PCWC-F (ROAD STAR WARRIOR WITH FLAMES CA) 5PXL0 2007 INTAKE Diagram

#

Description
Price

1

CARBURETOR JOINT ASSY

5PX-13590-00-00

Unavailable

2

JOINT, CARBURETOR 1

5PX-13586-00-00

Unavailable

3

INJECTOR ASSY

5FL-13761-00-00

Unavailable

4

CONNECTOR

5PX-14188-00-00

Unavailable

5

CONNECTOR

5PX-14189-00-00

Unavailable

6

PIPE

5PX-13938-00-00

Unavailable

7

BOLT 1

4BH-13573-00-00

Unavailable

8

GASKET(4BH)

90430-12219-00

$7.49

9

SCREW, PAN

98507-06050-00

$3.28

10

GASKET

90430-09002-00

$11.49

11

WIRE, SUB LEAD

5PX-82509-10-00

Unavailable

12

CLAMP

90465-10098-00

Unavailable

13

SEAL

5PX-14239-01-00

$14.49

14

BOLT,SOCKET HEAD

91314-06020-00

$1.49

15

HOSE CLAMP ASSY

90450-57010-00

$20.99

16

THROTTLE BODY ASSY

5PX-13750-02-00

Unavailable

16

THROTTLE BODY ASSY

5PX-13750-11-00

Unavailable

17

THROTTLE SCREW SET

5PX-14103-00-00

Unavailable

18

. BRACKET

5PX-14995-00-00

Unavailable

19

PIPE

5PX-14149-00-00

Unavailable

20

SCREW, PAN

98507-05035-00

Unavailable

21

SCREW, PAN

98517-05012-00

Unavailable

22

CLIP

5PX-14137-00-00

Unavailable

23

THROTTLE SENSOR ASSY

3P6-85885-01-00

Unavailable

24

SCREW

4KM-24453-00-00

Unavailable

25

AIR SCREW SET

5JW-14104-00-00

Unavailable

26

PIPE, FUEL

5PX-14295-01-00

Unavailable

27

GROMMET

5PX-14435-00-00

Unavailable

28

HOLDER

5PX-14261-01-00

Unavailable

29

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

30

PIPE, FUEL 3

5PX-13973-01-00

Unavailable

31

CLIP

90467-12003-00

Unavailable

32

PIPE, FUEL 4

5PX-13974-01-00

Unavailable

33

CLIP

90467-12003-00

Unavailable

34

REGULATOR, PRESSURE

5PX-13906-00-00

Unavailable

35

JOINT

5PX-13595-00-00

Unavailable

36

BOLT, SOCKET

91317-05016-00

Unavailable

37

HOSE, VACUUM SENSING 2

5PX-13544-00-00

Unavailable

38

CLIP(42X)

90467-07093-00

Unavailable

39

PIPE, FUEL 1

5PX-13971-01-00

Unavailable

40

CLAMP

90464-15003-00

Unavailable

41

CLAMP

90464-15004-00

Unavailable

42

PIPE, FUEL 2

5PX-13972-00-00

Unavailable

43

CLAMP

90464-15002-00

Unavailable

44

CLAMP

90464-15003-00

Unavailable

45

PIPE

5PX-14465-00-00

Unavailable

46

SCREW(2VK)

90149-06250-00

Unavailable

47

HOSE, AIR

5PX-13895-00-00

Unavailable

48

HOSE, AIR 2

5PX-13892-00-00

Unavailable

49

HOSE, AIR 3

5PX-13893-00-00

Unavailable

50

HOSE, AIR 4

5PX-13894-01-00

Unavailable

51

HOSE, AIR 4

5PX-13894-12-00

Unavailable

52

CLIP(42X)

90467-07093-00

Unavailable

53

CLIP (16G)

90467-08021-00

Unavailable

54

CLAMP (8M1)

90464-30040-00

Unavailable

55

SENSOR, PRESSURE

5JW-82380-00-00

Unavailable

56

BOLT, WITH WASHER

90119-05008-00

Unavailable

57

BOLT(4TW)

97017-05016-00

Unavailable

58

WASHER(1RW)

92907-05600-00

Unavailable

59

WAY 3(33M)

90413-05014-00

Unavailable

60

PLUG, BLIND

5PX-13569-00-00

Unavailable

61

CLIP (16G)

90467-08021-00

Unavailable

62

LINEAR, CONTROL VALVE

5PX-85880-00-00

Unavailable

63

CLAMP (26H)

90464-08051-00

Unavailable

64

PIPE

5PX-14466-00-00

Unavailable

65

HOSE 1

5PX-13545-00-00

Unavailable

66

HOSE 2

5PX-13546-00-00

Unavailable

67

HOSE 3

5PX-13547-00-00

Unavailable

68

HOSE, AIR 4

5PX-13548-00-00

Unavailable

69

CLIP(3BM)

90467-10135-00

Unavailable

70

PIPE, AIR

5PX-13897-00-00

Unavailable

71

CLIP

90467-15001-00

Unavailable

72

JOINT

5PX-14454-01-00

Unavailable

73

GROMMET

90480-13009-00

Unavailable

74

BOLT, WITH WASHER

90119-06051-00

Unavailable

75

COLLAR(50M)

90387-087L0-00

Unavailable

76

PLUG(7NN)

90338-04208-00

Unavailable

77

CLAMP (26H)

90464-08051-00

Unavailable

78

PIPE

5PX-14349-00-00

Unavailable

79

CLIP

90467-09120-00

Unavailable

80

CLAMP(6M7)

90464-09M31-00

Unavailable
