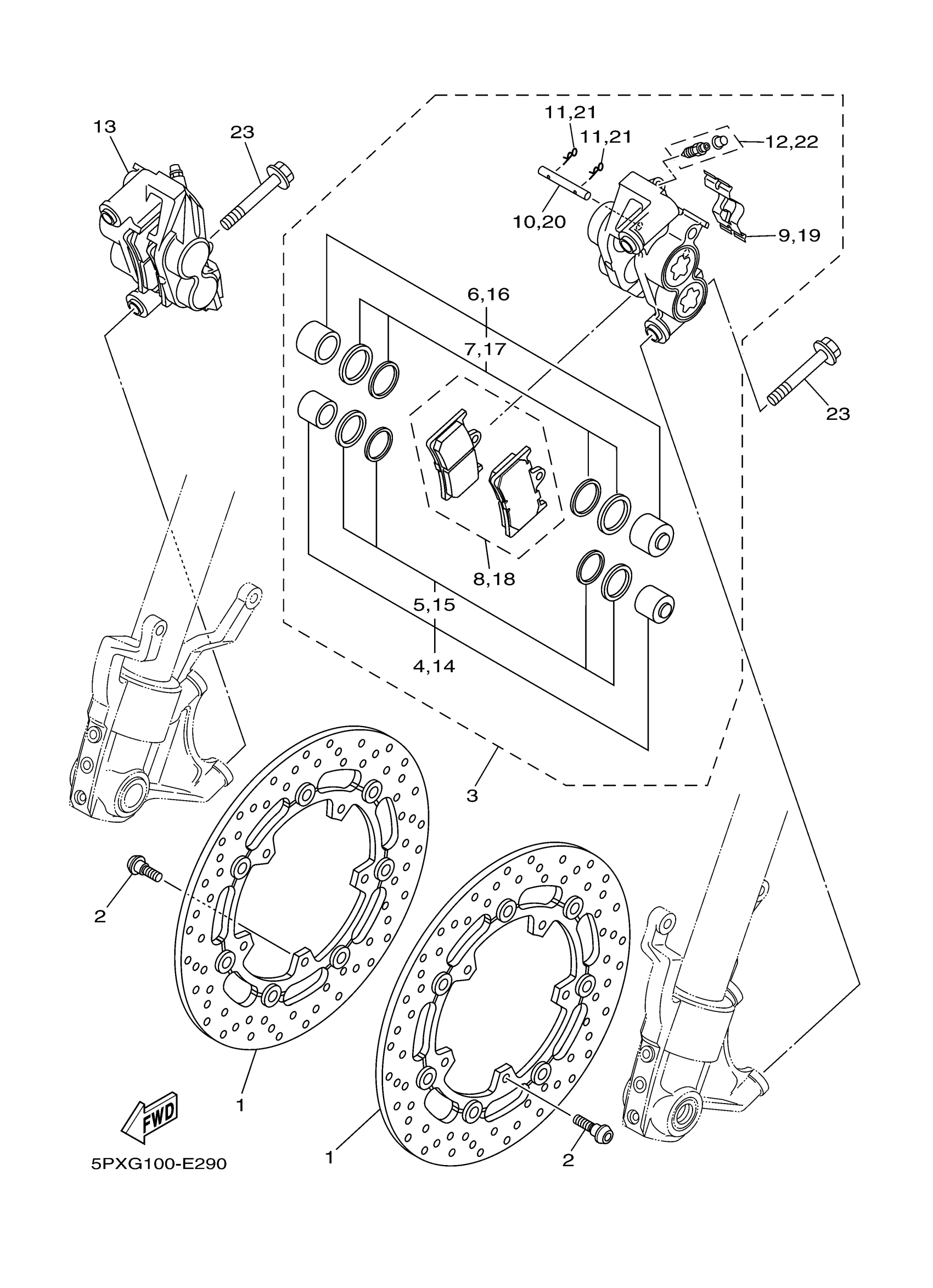

Yamaha XV17PCWC-F (ROAD STAR WARRIOR WITH FLAMES CA) 5PXL0 2007 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC BRAKE ASSY

5SL-2581T-00-00

Unavailable

2

BOLT

90109-06254-00

$8.49

3

CALIPER ASSY (LEFT)

5PX-2580T-10-00

$391.99

4

PISTON ASSY, CALIP

5PW-25802-00-00

$97.99

5

CALIPER SEAL KIT

5PW-25803-00-00

$17.49

6

PISTON ASSY, CALIP

5PW-25802-10-00

$97.99

7

CALIPER SEAL KIT

5PW-25803-10-00

$17.49

8

BRAKE PAD KIT

5PX-W0045-00-00

$69.99

9

SUPPORT, PAD

4SV-25919-00-00

$35.99

10

PIN, PAD

4SV-25924-00-00

$42.99

11

CLIP, PAD PIN

3GM-25925-00-00

$11.99

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

CALIPER ASSY (RIGHT)

5PX-2580U-10-00

Unavailable

14

PISTON ASSY, CALIP

5PW-25802-00-00

$97.99

15

CALIPER SEAL KIT

5PW-25803-00-00

$17.49

16

PISTON ASSY, CALIP

5PW-25802-10-00

$97.99

17

CALIPER SEAL KIT

5PW-25803-10-00

$17.49

18

BRAKE PAD KIT

5PX-W0045-00-00

$69.99

19

SUPPORT, PAD

4SV-25919-00-00

$35.99

20

PIN, PAD

4SV-25924-00-00

$42.99

21

CLIP, PAD PIN

3GM-25925-00-00

$11.99

22

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

23

BOLT, UNION

90401-10012-00

Unavailable
