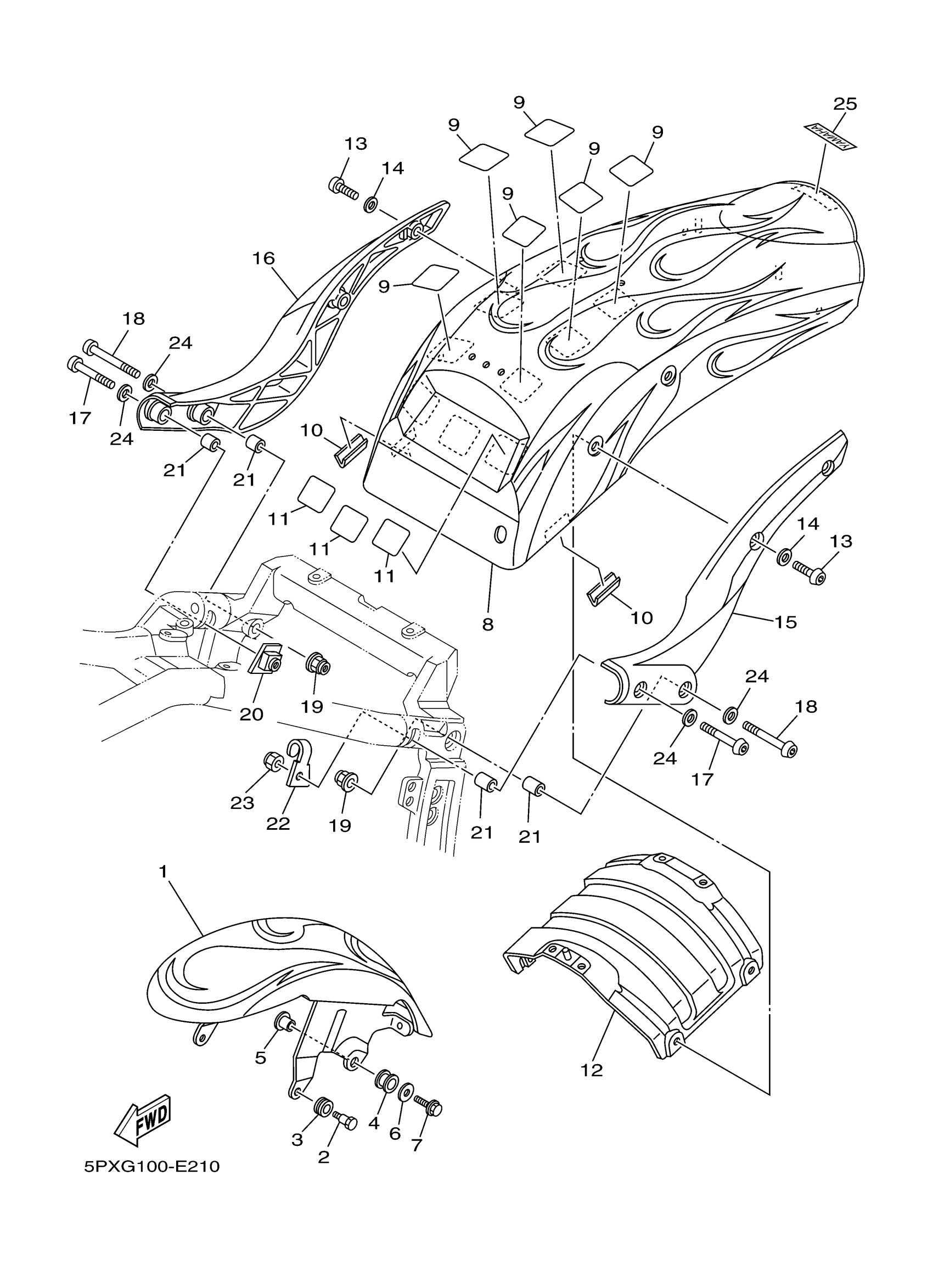

Yamaha XV17PCWC-F (ROAD STAR WARRIOR WITH FLAMES CA) 5PXL0 2007 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

5PX-Y2150-41-P8

Unavailable

1

FRONT FENDER COMP.

5PX-YK215-11-P0

Unavailable

2

BOLT

90109-08020-00

$8.49

3

GROMMET(47X)

90480-15397-00

$8.49

4

GROMMET

90480-15007-00

Unavailable

5

COLLAR(2KF)

90387-087T7-00

Unavailable

6

WASHER, PLATE (33N)

90201-094G1-00

$9.49

7

BOLT, FLANGE(4MY)

95027-08025-00

$9.49

8

REAR FENDER COMP.

5PX-Y2161-60-P5

Unavailable

8

REAR FENDER C0MP.

5PX-YK216-10-P0

Unavailable

9

SEAL

5PX-21669-01-00

$11.99

10

MOLD, FUEL TANK

3VD-24188-00-00

Unavailable

11

SEAL

5PX-21669-01-00

$11.99

12

STAY, REAR

5PX-21643-10-00

Unavailable

13

BOLT, BUTTON HEAD(3YF)

92014-08025-00

$7.49

14

WASHER, PLAIN

92990-08200-00

Unavailable

15

STAY, FENDER 1

5PX-21613-00-P0

Unavailable

16

STAY, FENDER 2 (MAT BLACK 2)

5PX-21614-00-P0

Unavailable

17

BOLT, BUTTON HEAD

92014-10060-00

Unavailable

18

BOLT

90111-10005-00

Unavailable

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

20

NUT

5PX-21295-00-00

Unavailable

21

PIN, DOWEL

99530-14016-00

Unavailable

22

HANGER, HELMET

5PX-21398-00-00

Unavailable

23

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

24

WASHER, PLATE

90201-10081-00

Unavailable

25

EMBLEM, YAMAHA

3WF-2153E-71-00

Unavailable
