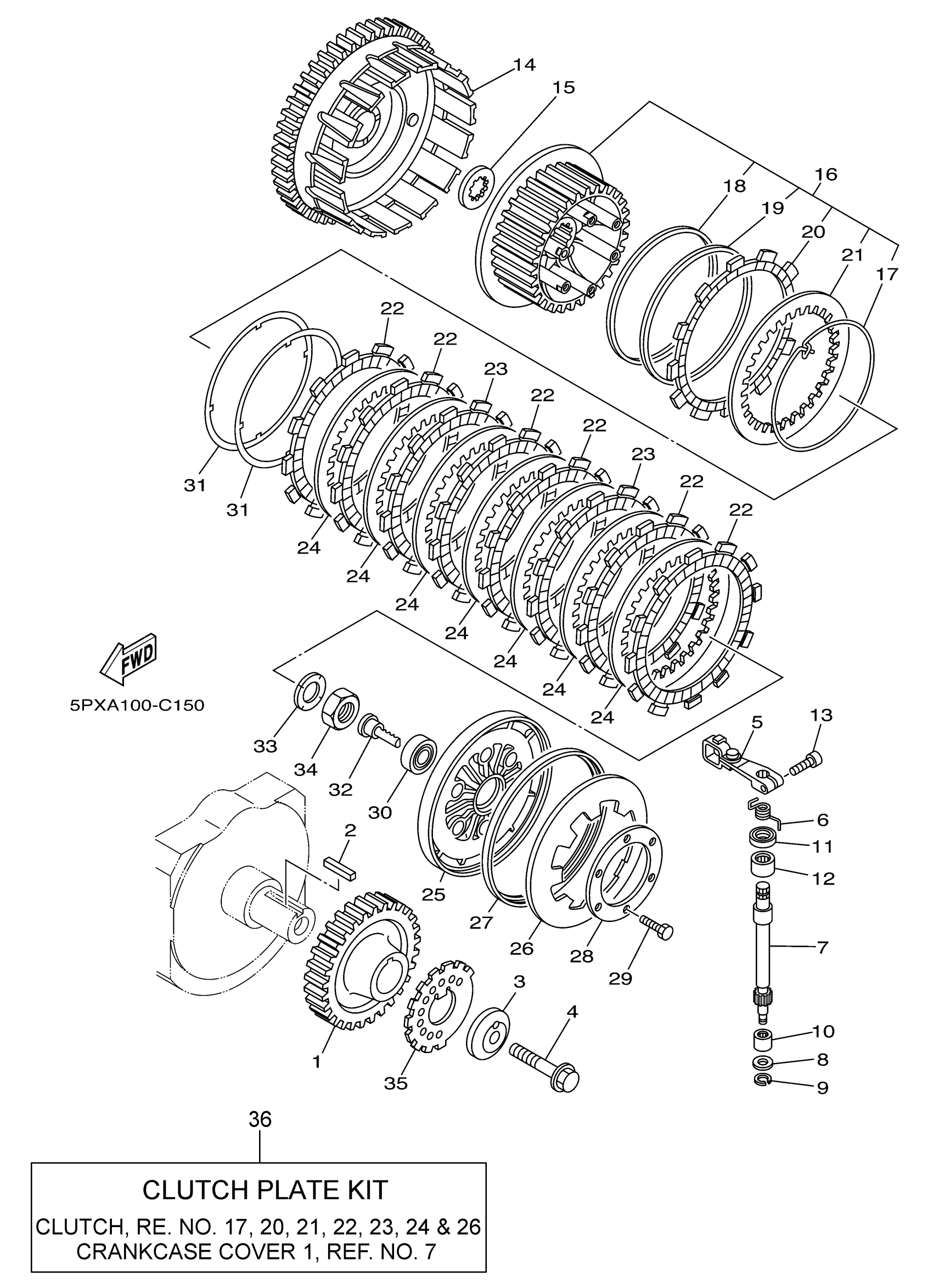

Yamaha XV17PCWC-F (ROAD STAR WARRIOR WITH FLAMES CA) 5PXL0 2007 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

4WM-16111-00-00

Unavailable

2

KEY, FEATHER

4WM-16193-00-00

Unavailable

3

SPACER 1

4WM-16181-00-00

Unavailable

4

BOLT

90101-12011-00

$13.99

5

PUSH LEVER ASSY

5PX-16340-01-00

Unavailable

6

SPRING, TORSION

90508-16007-00

$8.49

7

AXLE, PUSH LEVER

4WM-16382-00-00

Unavailable

8

WASHER(6TA)

92907-08600-00

$3.03

9

CIRCLIP

99080-07600-00

Unavailable

10

BEARING

93317-11096-00

$23.99

11

OIL SEAL (3X3)

93102-15212-00

$9.49

12

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

13

BOLT,SOCKET HEAD

91314-06020-00

$1.49

14

PRIMARY DRIVEN GEAR COMP.

4WM-16150-00-00

Unavailable

15

PLATE, THRUST 1

5VN-16154-00-00

Unavailable

16

CLUTCH BOSS ASSY

5PX-16370-10-00

Unavailable

17

RING, CLUTCH BOSS

26H-16385-00-00

Unavailable

18

PLATE, SEAT

26H-16384-00-00

Unavailable

19

SPRING, CLUTCH BOSS

1FK-16383-00-00

Unavailable

20

PLATE, FRICTION

26H-16321-01-00

Unavailable

21

PLATE, CLUTCH 1

26H-16324-10-00

Unavailable

22

PLATE, FRICTION 3

26H-16307-01-00

Unavailable

23

PLATE, FRICTION

26H-16321-01-00

Unavailable

24

PLATE, CLUTCH 1

26H-16324-10-00

Unavailable

25

PLATE, PRESSURE 1

1FK-16351-00-00

Unavailable

26

SPRING, CLUTCH 2

1FK-16334-00-00

Unavailable

26

SPRING, CLUTCH 2

1FK-16334-00-00

Unavailable

27

HOUSING, SPRING

1FK-16335-00-00

Unavailable

28

PLATE, PRESSURE 2

5PX-16352-00-00

Unavailable

29

BOLT, HEXAGON

97017-06025-00

Unavailable

30

BEARING(2JN)

93306-00315-00

Unavailable

31

SPRING, CLUTCH BOSS

5PX-16383-00-00

Unavailable

32

ROD, PUSH 1

4XV-16356-01-00

Unavailable

33

WASHER, CONICAL SPRING

90208-20001-00

Unavailable

34

NUT

90179-20022-00

Unavailable

35

ROTOR

5PX-81673-00-00

Unavailable

36

CLUTCH PLATE KIT

5VR-W001G-10-00

Unavailable
