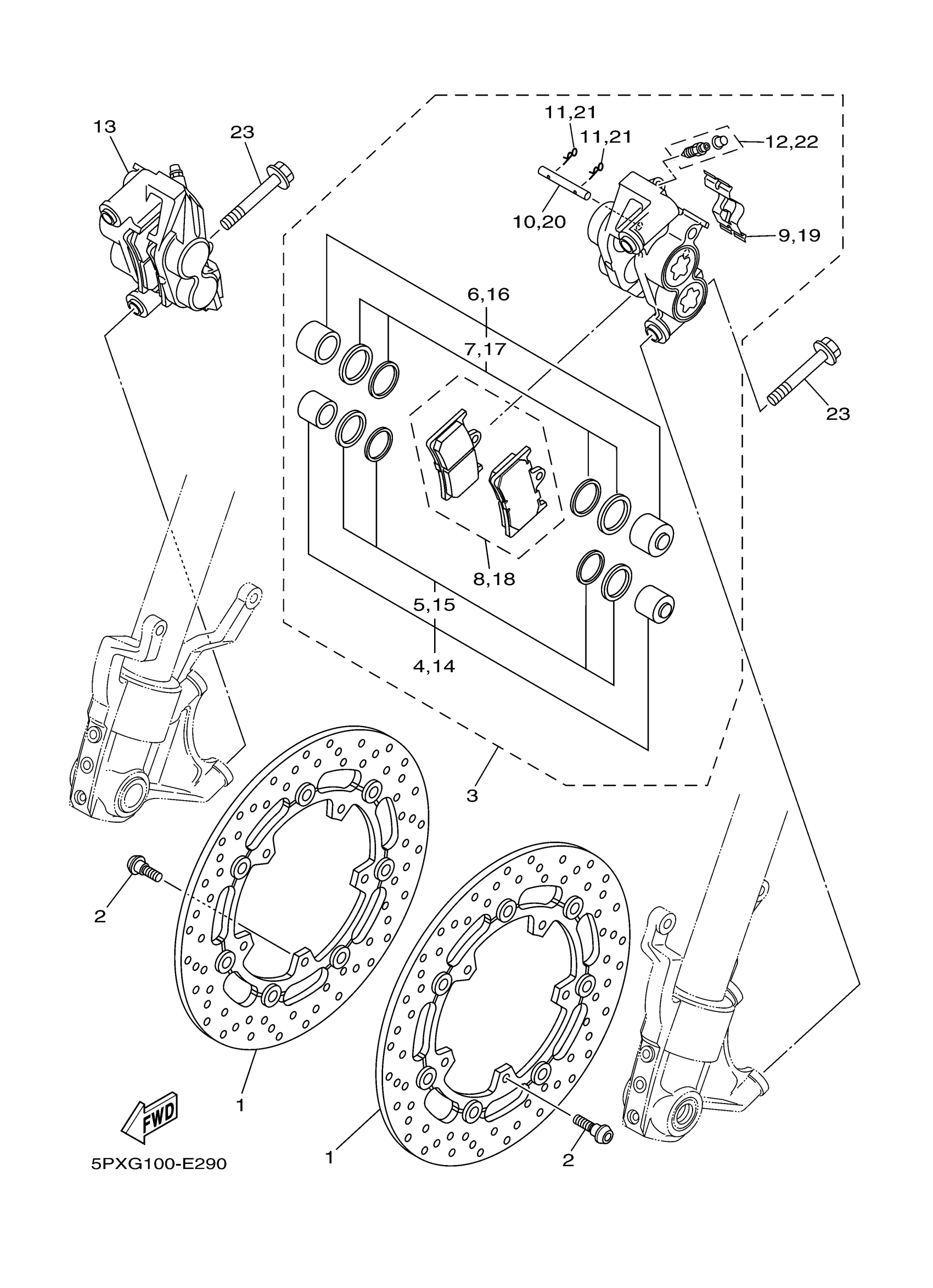

Yamaha XV17PCVC-F (ROAD STAR WARRIOR CA w/flames) 5PXH0 2006 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC BRAKE ASSY

5SL-2581T-00-00

Unavailable

2

BOLT

90109-06254-00

$2.57

3

CALIPER ASSY (LEFT)

5PX-2580T-10-00

$554.99

4

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

5

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

6

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

7

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

8

BRAKE PAD KIT

5PX-W0045-00-00

$54.82

9

SUPPORT, PAD

4SV-25919-00-00

$20.59

10

PIN, PAD

4SV-25924-00-00

$34.81

11

CLIP, PAD PIN

3GM-25925-00-00

$9.15

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

CALIPER ASSY (RIGHT)

5PX-2580U-10-00

Unavailable

14

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

15

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

16

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

17

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

18

BRAKE PAD KIT

5PX-W0045-00-00

$54.82

19

SUPPORT, PAD

4SV-25919-00-00

$20.59

20

PIN, PAD

4SV-25924-00-00

$34.81

21

CLIP, PAD PIN

3GM-25925-00-00

$9.15

22

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

23

BOLT, UNION

90401-10012-00

Unavailable
