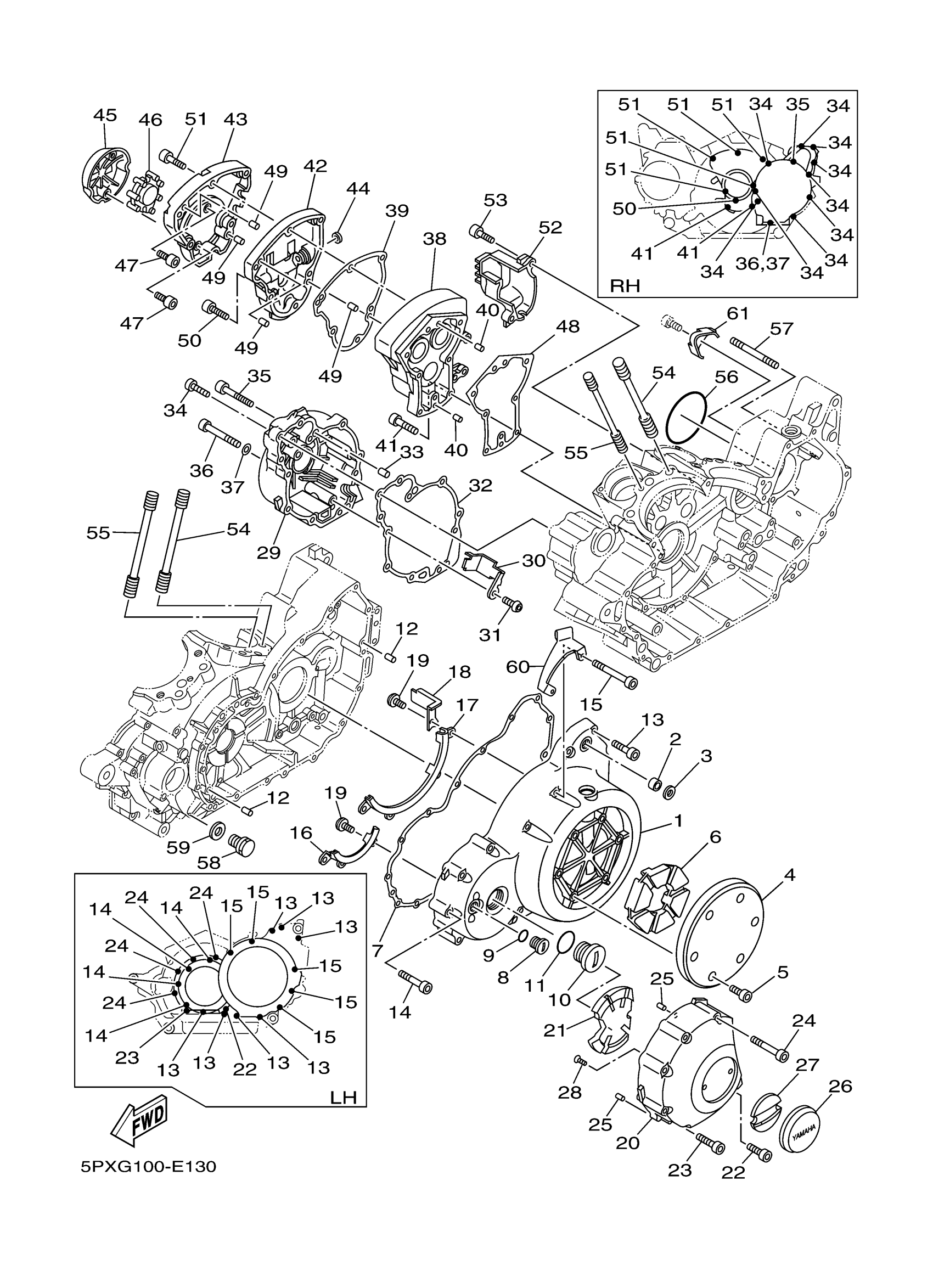

Yamaha XV17PCVC-F (ROAD STAR WARRIOR CA w/flames) 5PXH0 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5PX-15411-00-00

$280.99

2

BEARING

93317-11287-00

$23.99

3

OIL SEAL (4G0)

93102-12224-00

$10.49

4

COVER, AIR CLEANER

5PX-15414-00-00

Unavailable

5

BOLT, SOCKET

91314-06016-00

$8.49

6

DAMPER 1

5PX-1542A-00-00

Unavailable

7

GASKET, CRANKCASE COVER 1

5VN-15451-00-00

$28.99

7

GASKET, CRANKCASE COVER 1

5VR-15451-00-00

Unavailable

8

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

9

O-RING (2H9)

93210-14369-00

$7.49

10

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$32.99

11

O-RING (341)

93210-32172-00

$7.49

12

PIN, DOWEL(3VD)

99530-10114-00

$2.55

13

BOLT, SOCKET

91314-06035-00

$8.49

14

BOLT, SOCKET

91314-06045-00

$8.49

15

BOLT, SOCKET

91314-06070-00

Unavailable

16

GUIDE 1

4WM-15142-00-00

Unavailable

17

GUIDE

4WM-15143-00-00

Unavailable

18

CLAMP 2

4WM-15484-00-00

Unavailable

19

SCREW

90149-06187-00

Unavailable

20

COVER 2

5PX-15423-00-00

Unavailable

21

DAMPER, ENGINE MOUNT 2

4WM-15326-00-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

23

BOLT, SOCKET

91314-06035-00

$8.49

24

BOLT, SOCKET

91314-06060-00

Unavailable

25

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

26

COVER, GENERATOR 2

5PX-15425-00-00

Unavailable

27

DAMPER, ENGINE MOUNT 1

4WM-15316-00-00

Unavailable

28

SCREW, FLAT

98707-05012-00

Unavailable

29

COVER, CRANKCASE 2

5PX-15421-00-00

Unavailable

30

GUIDE, INLET

4WM-15377-00-00

Unavailable

31

SCREW

90149-06187-00

Unavailable

32

GASKET, CRANKCASE COVER 2

5PX-15461-02-00

Unavailable

33

PIN, DOWEL(3VD)

99530-10114-00

$2.55

34

BOLT, SOCKET

91314-06030-00

Unavailable

35

BOLT,SOCKET

91314-06050-00

Unavailable

36

BOLT, SOCKET

91314-06065-00

Unavailable

37

GASKET 256113960000

90430-06014-00

Unavailable

38

COVER, CRANKCASE 3

5PX-15431-00-00

Unavailable

39

GASKET, CRANKCASE COVER 3

5YU-15462-01-00

Unavailable

40

PIN, DOWEL(2JG)

93606-10227-00

Unavailable

41

BOLT, SOCKET

91314-06035-00

$8.49

42

COVER, DECOMP.

5PX-12278-00-00

Unavailable

43

COVER, SHIFTER

5PX-15429-00-00

Unavailable

44

OIL SEAL

93109-08803-00

Unavailable

45

COVER, CAP 2

5PX-15427-00-00

Unavailable

46

DAMPER 3

4WM-15335-00-00

Unavailable

47

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

48

GASKET, DECOMPRESSION

5PX-12286-00-00

Unavailable

49

PIN, DOWEL(2JG)

93606-10227-00

Unavailable

50

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

51

BOLT, SOCKET

91314-06040-00

Unavailable

52

COVER, DECOMP LEVER

5PX-12275-00-00

Unavailable

53

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

54

BOLT, STUD

90116-12240-00

Unavailable

55

BOLT, STUD (4X7)

90116-10344-00

Unavailable

56

O-RING(N21)

93210-750A1-00

Unavailable

57

BOLT STUD 276113610000

90116-08065-00

Unavailable

58

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

59

GASKET

214-11198-01-00

Unavailable

60

HOLDER, CLUTCH CABLE

5PX-15441-00-00

Unavailable

61

COVER

5PX-15413-00-00

Unavailable
