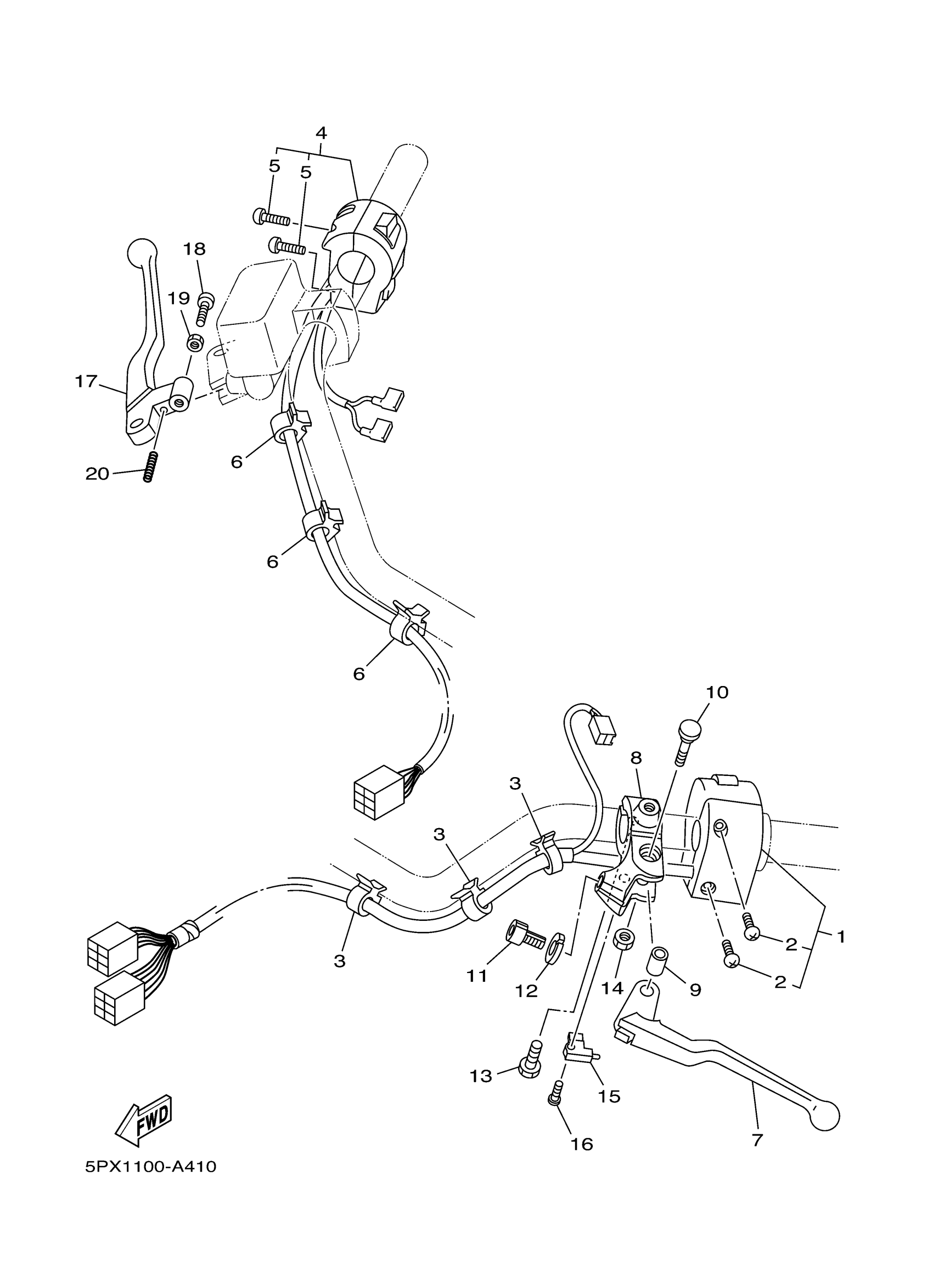

Yamaha XV17PCTC-F (ROAD STAR WARRIOR w/flames CA) 5PXE 2005 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

5PX-83973-20-00

Unavailable

2

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

3

CLAMP(4HM)

90464-15192-00

$5.75

4

SWITCH, HANDLE 2

5PX-83975-20-00

Unavailable

5

SCREW, PAN HEAD(4MY)

98507-05025-00

$5.76

6

CLAMP(4GY)

90464-10190-00

$6.76

7

LEVER 1

4WM-83912-00-00

$45.19

8

HOLDER, LEVER 1

5BN-82911-00-00

Unavailable

9

COLLAR, LEVER 1

4TR-83913-00-00

$6.22

10

BOLT, LEVER

4TR-83945-00-00

$11.89

11

BOLT

90123-08002-00

$8.57

12

NUT

90179-08030-00

$3.63

13

BOLT(3DM)

97024-06020-00

$5.75

14

NUT, U(4NK)

95604-06100-00

$6.22

15

SWITCH

3YX-82917-01-00

$37.06

16

SCREW, FLAT HEAD(4BP)

98707-03020-00

Unavailable

17

LEVER 2

5EY-83922-00-00

Unavailable

18

SCREW (2L0)

90149-06131-00

Unavailable

19

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

20

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable
