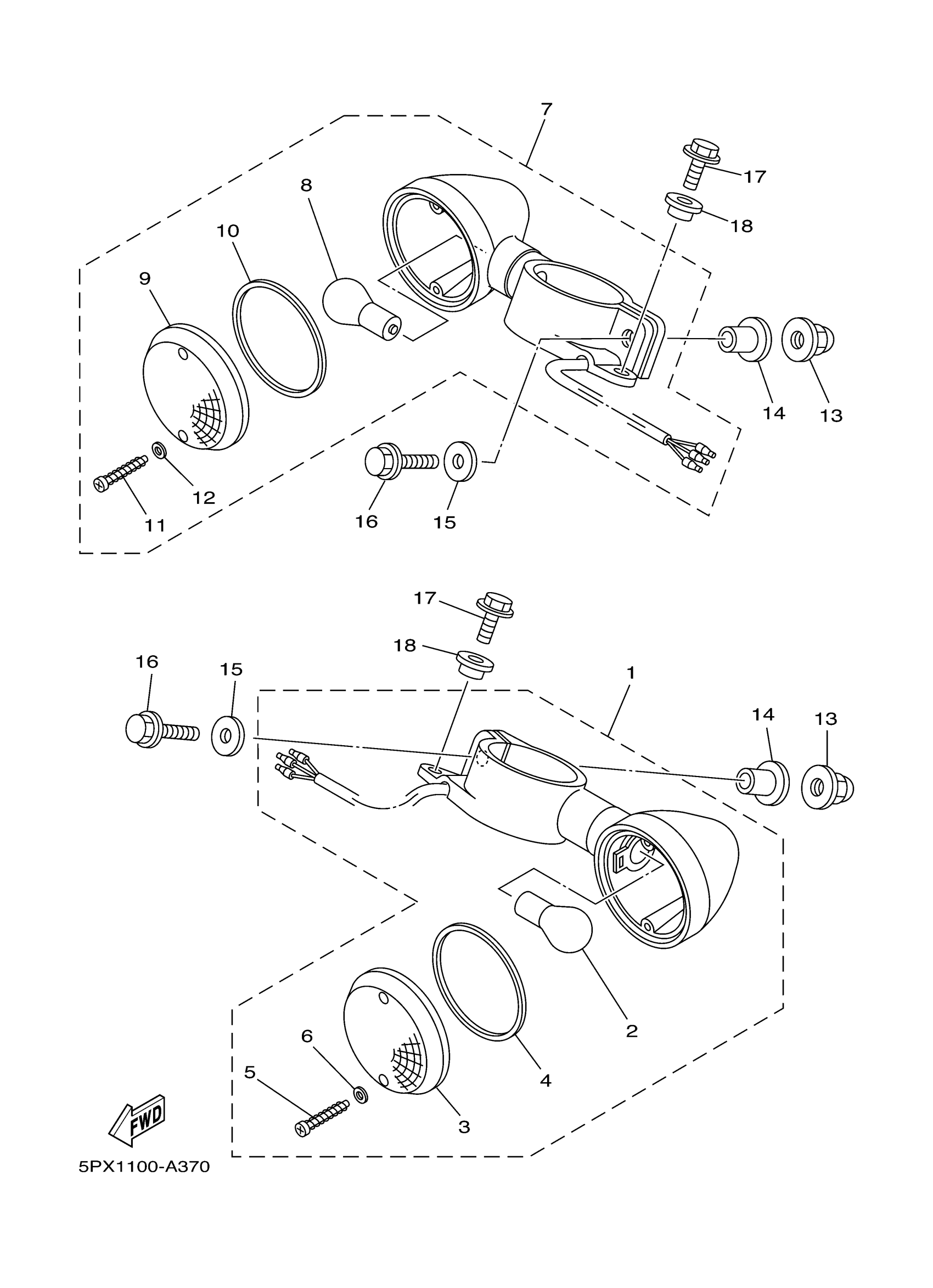

Yamaha XV17PCTC-F (ROAD STAR WARRIOR w/flames CA) 5PXE 2005 FLASHER LIGHT Diagram

FRONT FLASHER LIGHT ASSY 1

5PX-83310-10-00

Unavailable

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

LENS, FLASHER

5PX-83312-10-00

$9.99

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

SCREW, TAPPING

97704-40625-00

$8.49

WASHER

5PX-83348-00-00

$6.99

FRONT FLASHER LIGHT ASSY 2

5PX-83320-10-00

Unavailable

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

LENS, FLASHER

5PX-83312-10-00

$9.99

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

SCREW, TAPPING

97704-40625-00

$8.49

WASHER

5PX-83348-00-00

$6.99

NUT, CROWN(1FN)

90176-06055-00

$5.60

COLLAR

90387-06076-00

$5.60

WASHER, PLATE

90201-06045-00

$8.49

BOLT, FLANGE

95817-06025-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

SPACER (25G)

90560-06244-00

Unavailable
