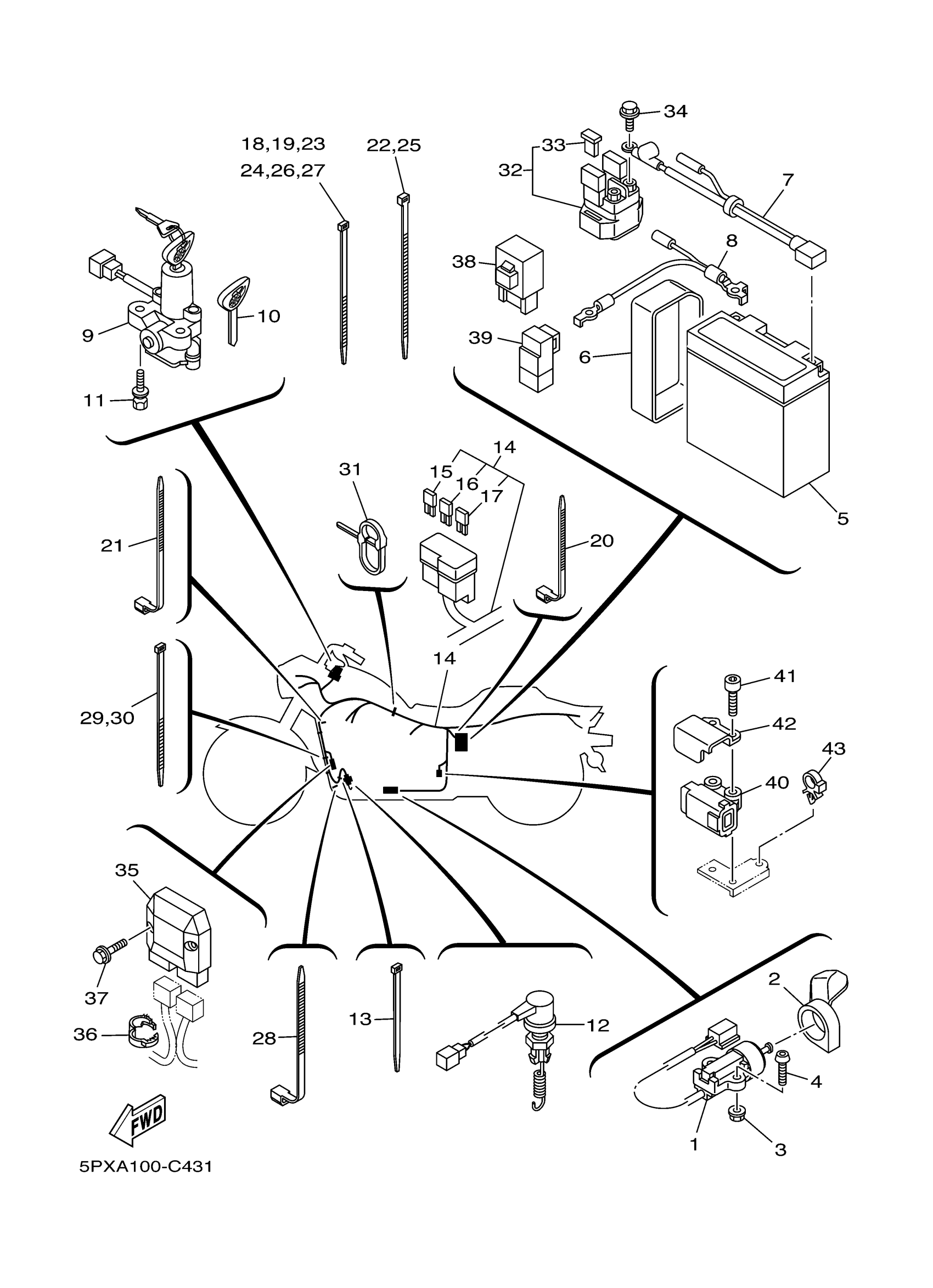

Yamaha XV17PCTC-F (ROAD STAR WARRIOR w/flames CA) 5PXE 2005 ELECTRICAL 2 Diagram

#

Description
Price

1

SWITCH, SIDE STAND

5VS-82566-C0-00

Unavailable

2

COVER

4WM-8252U-00-00

$15.49

3

NUT, S/L FLANGE

95607-05200-00

$9.49

4

BOLT, BUTTON HEAD

92017-05025-00

$7.49

5

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

Unavailable

6

BAND, BATTERY

4AS-82131-01-00

$15.49

7

WIRE, PLUS LEAD

5PX-82115-00-00

Unavailable

8

WIRE, MINUS LEAD

5PX-82116-00-00

Unavailable

9

MAIN SWITCH STEERING LOCK

5PX-82501-10-00

Unavailable

10

BLANK KEY

5PX-82511-09-00

$73.99

11

BOLT

90109-08196-00

$8.49

12

STOP SWITCH ASSY

5PX-82530-10-00

Unavailable

13

CLAMP

90464-16061-00

$8.49

14

WIRE HARNESS ASSY

5PX-82590-20-00

Unavailable

15

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

16

. FUSE (10A)

67F-82151-40-00

Unavailable

17

FUSE (15A)

67F-82151-50-00

Unavailable

18

BAND

1UA-82591-00-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

CLAMP

90464-13077-00

Unavailable

21

CLAMP(4FM)

90464-15195-00

Unavailable

22

BAND

3MA-82591-00-00

Unavailable

23

BAND

1UA-82591-00-00

Unavailable

24

BAND

1UA-82591-00-00

Unavailable

25

BAND

3MA-82591-00-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable

27

BAND

1UA-82591-00-00

Unavailable

28

CLAMP(4FM)

90464-15195-00

Unavailable

29

BAND

1UA-82591-00-00

Unavailable

30

BAND

1UA-82591-00-00

Unavailable

31

CLAMP

90464-28001-00

Unavailable

32

STARTER RELAY ASSY (RC19-018)

4YR-81940-02-00

Unavailable

33

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

34

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

35

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

Unavailable

36

CLAMP

90464-16003-00

Unavailable

37

BOLT, WASHER BASED

90105-06009-00

Unavailable

38

RELAY ASSY

5KS-81950-32-00

Unavailable

39

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

40

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

41

BOLT,SOCKET

91317-04025-00

Unavailable

42

PLATE

5PX-82388-00-00

Unavailable

43

CLAMP

90464-16006-00

Unavailable
