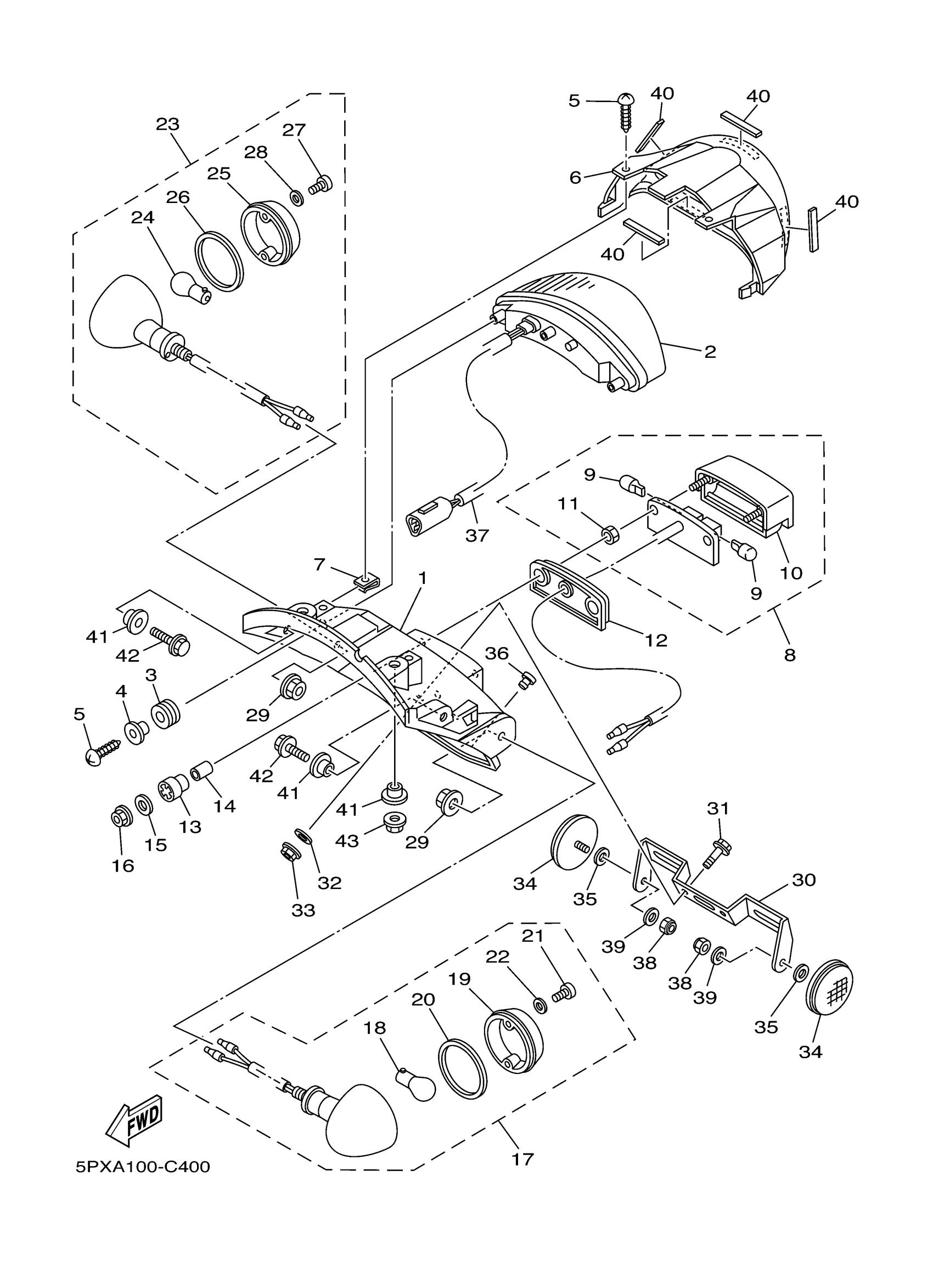

Yamaha XV17PCSC (ROAD STAR WARRIOR CA) 5PXB 2004 TAILLIGHT Diagram

BASE, TAILLIGHT

5PX-84711-00-00

Unavailable

TAILLIGHT UNIT ASSY

5PX-84710-00-00

Unavailable

DAMPER

5PX-84553-00-00

$3.64

COLLAR

5PX-84557-00-00

$3.74

SCREW, TRUSS TAP.

97707-50012-00

$4.63

COVER, TAILLIGHT

5PX-84716-00-00

Unavailable

NUT, SPRING(1YT)

90183-05042-00

$5.60

LICENCE LIGHT UNIT ASSY

5PX-84745-00-00

Unavailable

BULB

5PX-84744-00-00

$3.22

BODY, LICENCE LIGHT

5PX-84749-00-00

$83.99

NUT, SPECIAL

5PX-84748-00-00

Unavailable

SEAT, BASE

5PX-84742-00-00

$7.99

DAMPER

3F9-84553-00-00

Unavailable

COLLAR (420)

90387-06241-00

$8.49

WASHER PLATE 829771780000

90201-05033-00

$10.49

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

REAR FLASHER LIGHT ASSY 1

5PX-83330-01-00

Unavailable

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

. LENS, FLASHER

5PX-83312-00-00

Unavailable

GASKET, FLASHER LENS

5PX-83313-00-00

Unavailable

. SCREW, SPECIAL

5PX-83358-00-00

Unavailable

WASHER

5PX-83348-00-00

Unavailable

REAR FLASHER LIGHT ASSY 2

5PX-83340-01-00

Unavailable

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

. LENS, FLASHER 2

5PX-83342-00-00

Unavailable

GASKET, FLASHER LENS

5PX-83313-00-00

Unavailable

. SCREW, SPECIAL

5PX-83358-00-00

Unavailable

WASHER

5PX-83348-00-00

Unavailable

NUT(3GG)

90179-12588-00

Unavailable

BRACKET, LICENSE

5PX-84751-00-00

Unavailable

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

WASHER, PLATE

90201-06380-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

Unavailable

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

WASHER PLATE 829771780000

90201-05033-00

$10.49

PLUG(1NL)

90338-07180-00

Unavailable

CORD, TAILLIGHT

5PX-84717-00-00

Unavailable

NUT,U

5PX-84548-00-00

Unavailable

WASHER,PLATE

5PX-84754-00-00

Unavailable

DAMPER

5PX-84753-00-00

Unavailable

COLLAR (8G8)

90387-06648-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

NUT,SELF-LOCKING

95607-06200-00

Unavailable
