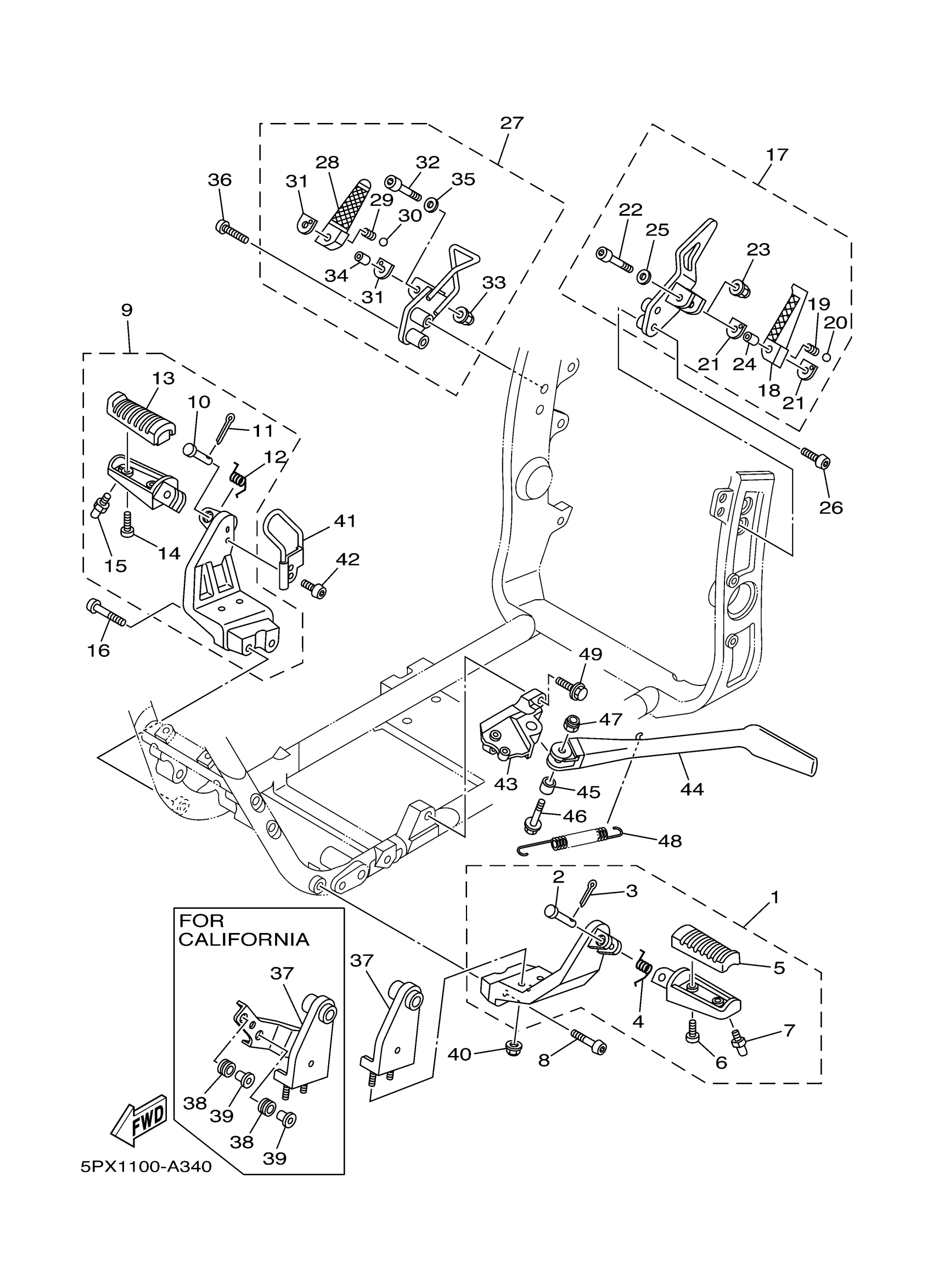

Yamaha XV17PCPC (ROAD STAR WARRIOR CA) 5PX2 2002 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

5PX-27410-00-00

Unavailable

2

PIN (3L5)

91701-08035-00

$7.49

3

PIN, COTTER

91490-25020-00

$3.19

4

SPRING, TORSION (22N)

90508-20572-00

$8.49

5

COVER, FOOTREST

4BP-27413-00-00

$30.99

6

SCREW, PAN HEAD

98507-05014-00

$8.49

7

BOLT

5PX-27435-09-00

Unavailable

8

BOLT, BUTTON HEAD(3LS)

92014-10050-00

$8.49

9

FRONT FOOTREST ASSY (RIGHT)

5PX-27420-00-00

Unavailable

10

PIN (3L5)

91701-08035-00

$7.49

11

PIN, COTTER

91490-25020-00

$3.19

12

SPRING, TORSION (22N)

90508-20572-00

$8.49

13

COVER, FOOTREST

4BP-27413-00-00

$30.99

14

SCREW, PAN HEAD

98507-05014-00

$8.49

15

BOLT

5PX-27435-09-00

Unavailable

16

BOLT, BUTTON HEAD(3LS)

92014-10050-00

$8.49

17

REAR FOOTREST ASSY 1

5PX-27430-00-00

Unavailable

18

FOOTREST, REAR 1

5PX-27431-00-00

Unavailable

19

SPRING, COMPRESSION

90501-15001-00

Unavailable

20

BALL

93501-04011-00

Unavailable

21

. WASHER, SPECIAL

2NT-27437-00-00

Unavailable

22

. BOLT

91380-06040-00

Unavailable

23

NUT, U FLANGE

95604-06200-00

Unavailable

24

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

25

WASHER, PLATE (70R)

90201-066G5-00

Unavailable

26

BOLT

90111-10010-00

Unavailable

27

REAR FOOTREST ASSY 2

5PX-27440-00-00

Unavailable

28

. FOOTREST, REAR 2

5PX-27441-00-00

Unavailable

29

SPRING, COMPRESSION

90501-15001-00

Unavailable

30

BALL

93501-04011-00

Unavailable

31

. WASHER, SPECIAL

2NT-27437-00-00

Unavailable

32

. BOLT

91380-06040-00

Unavailable

33

NUT, U FLANGE

95604-06200-00

Unavailable

34

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

35

WASHER, PLATE (70R)

90201-066G5-00

Unavailable

36

BOLT

90111-10011-00

Unavailable

37

BRACKET 3

5PX-27443-00-00

Unavailable

37

BRACKET 3

5PX-27443-10-00

Unavailable

38

GROMMET (1E5)

90480-13163-00

Unavailable

39

COLLAR(42G)

90387-062L2-00

Unavailable

40

NUT, SELF-LOCKING

90185-08169-00

Unavailable

41

GUIDE, PLATE

5PX-2721A-00-00

Unavailable

42

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

43

BRACKET, SIDE STAND

5PX-27321-00-00

Unavailable

44

STAND, SIDE

5PX-27311-00-00

Unavailable

45

COLLAR

90387-1215U-00

Unavailable

46

BOLT, FLANGE

90105-12018-00

Unavailable

47

NUT, U (4PM)

95617-12100-00

Unavailable

48

SPRING, TENSION

90506-35003-00

Unavailable

49

BOLT, FLANGE

95817-10030-00

Unavailable
