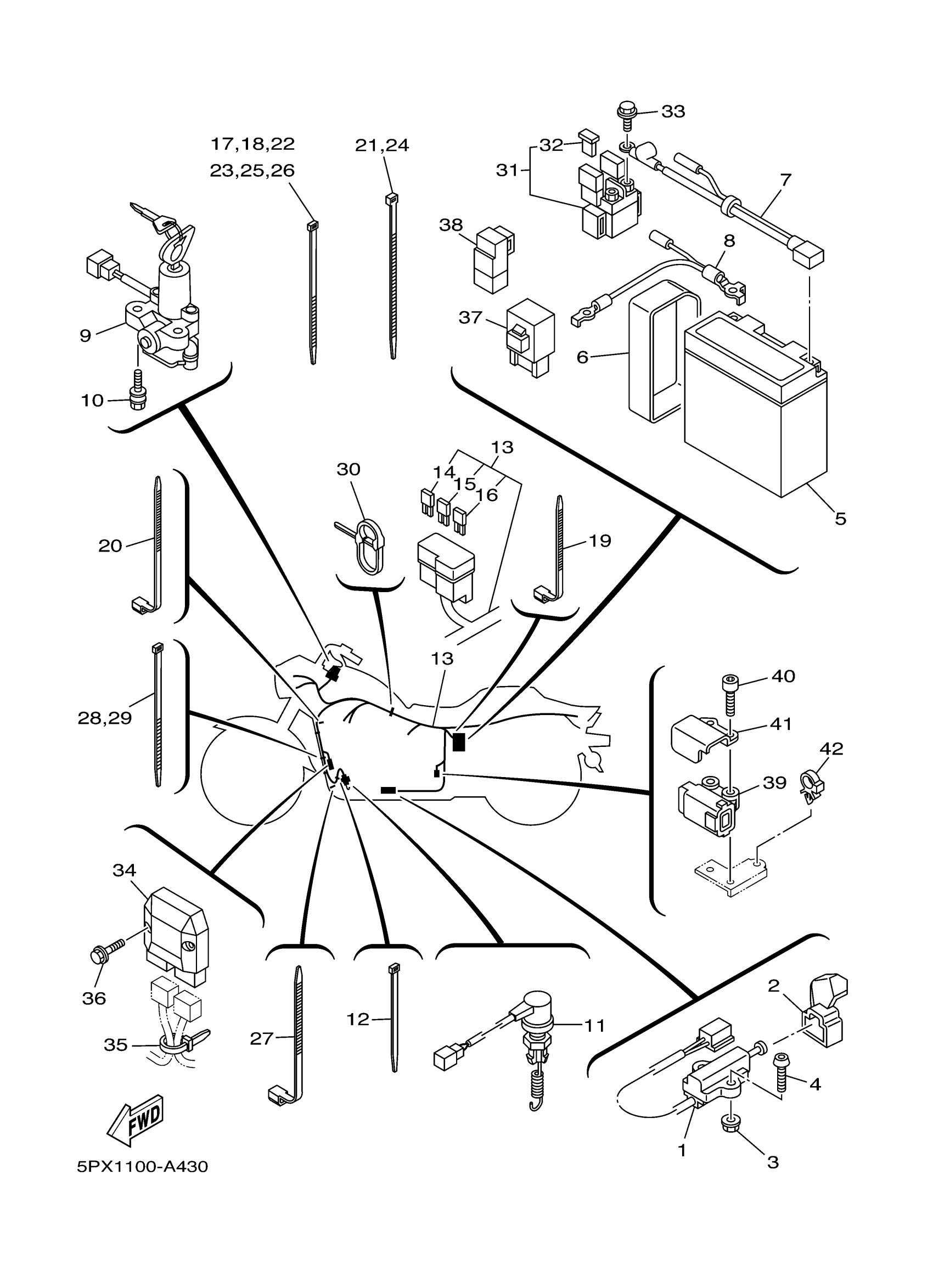

Yamaha XV17PCPC (ROAD STAR WARRIOR CA) 5PX2 2002 ELECTRICAL 2 Diagram
#
1
SWITCH, SIDE STAND
5PX-82566-C1-00
Unavailable
2
COVER
5PX-8252U-00-00
Unavailable
5
GT14B4 GS BATTERY - FA
GT1-4B400-00-00
Unavailable
6
BAND, BATTERY
4AS-82131-00-00
Unavailable
7
WIRE, PLUS LEAD
5PX-82115-00-00
Unavailable
8
WIRE, MINUS LEAD
5PX-82116-00-00
Unavailable
9
MAIN SWITCH STEERING LOCK
5PX-82501-10-00
Unavailable
11
STOP SWITCH ASSY
5PX-82530-10-00
Unavailable
13
WIRE HARNESS ASSY
5PX-82590-00-00
Unavailable
15
. FUSE (10A)
67F-82151-40-00
Unavailable
16
FUSE (15A)
67F-82151-50-00
Unavailable
19
CLAMP(4FM)
90464-15195-00
Unavailable
20
CLAMP(4FM)
90464-15195-00
Unavailable
21
BAND
3MA-82591-00-00
Unavailable
24
BAND
3MA-82591-00-00
Unavailable
27
CLAMP(4FM)
90464-15195-00
Unavailable
30
CLAMP
90464-28001-00
Unavailable
31
STARTER RELAY ASSY (RC19-018)
4YR-81940-02-00
Unavailable
32
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
33
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
34
RECTIFIER & REGULATOR ASSY
5JW-81960-00-00
Unavailable
35
CLAMP(4FM)
90464-15195-00
Unavailable
36
BOLT, WASHER BASED
90105-06009-00
Unavailable
37
RELAY ASSY (5PX-00)
5PX-81950-00-00
Unavailable
38
RELAY ASSY (5JJ-20)
5JJ-81950-20-00
Unavailable
39
SENSOR, LEAN ANGLE
5PS-82576-02-00
Unavailable
40
BOLT, SOCKET
91317-04020-00
Unavailable
41
PLATE
5PX-82388-00-00
Unavailable
42
CLAMP
90464-16006-00
Unavailable
