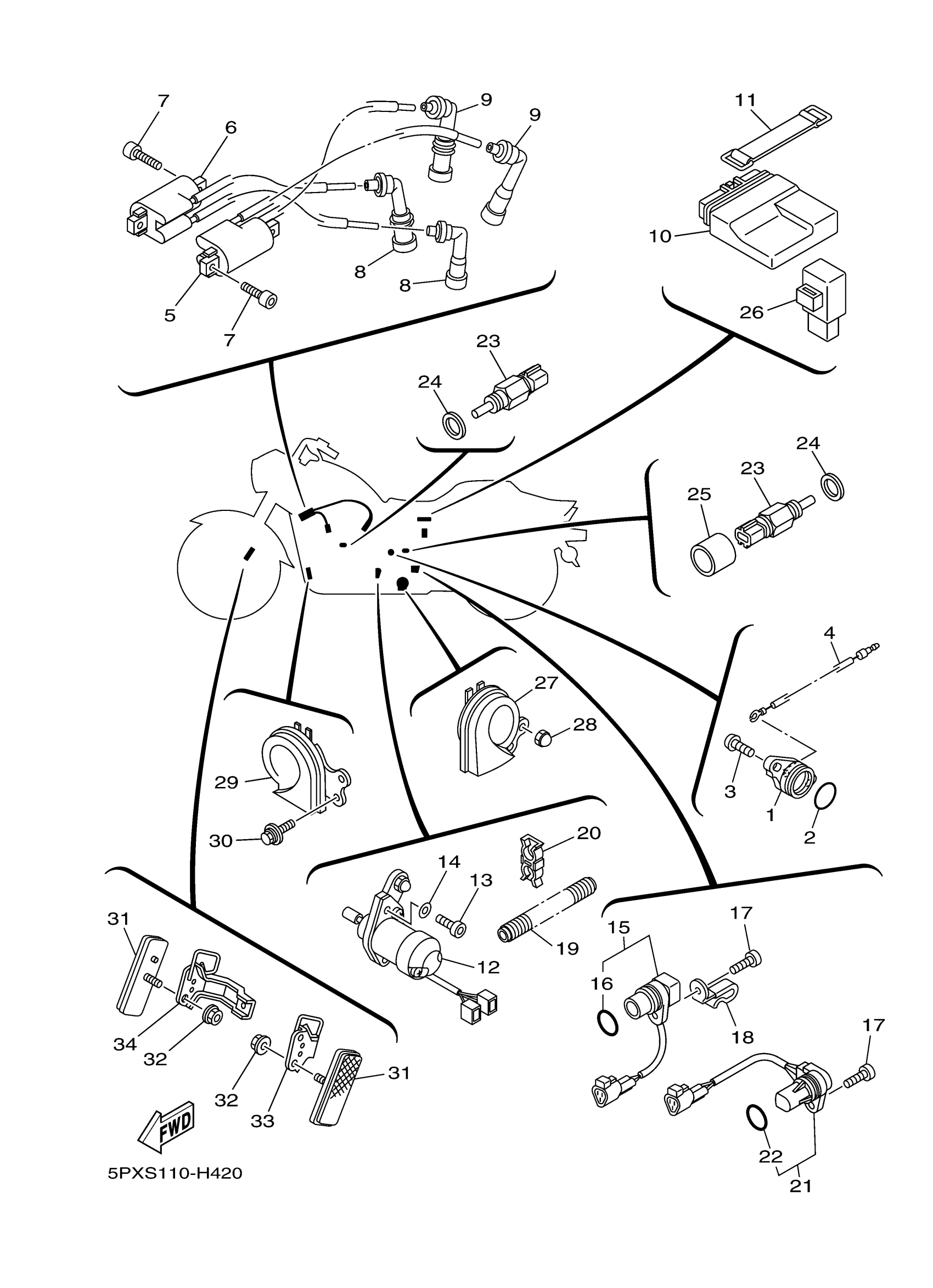

Yamaha XV17PCMYC (ROAD STAR MIDNIGHT WARRIOR CA) 2D8E 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

2

O-RING (371)

93210-29196-00

$8.49

3

SCREW

90149-06041-00

$1.28

4

WIRE, SUB LEAD

5PX-82509-00-00

Unavailable

5

IGNITION COIL ASSY

5PX-82310-00-00

Unavailable

6

IGNITION COIL ASSY

5PX-82310-10-00

Unavailable

7

BOLT,SOCKET

91380-06025-00

$8.49

8

PLUG CAP ASSY

4VW-82370-00-00

$69.99

9

PLUG CAP ASSY

4NK-82370-00-00

$73.99

10

ENGINE CONTROL UNIT ASSY

5PX-8591A-01-00

Unavailable

11

BAND,BATTERY

7H3-82131-00-00

$17.49

12

SOLENOID

5PX-86110-20-00

$384.99

13

BOLT, HEXAGON SOCKET HEAD(1JK)

90110-06114-00

$10.49

14

WASHER, PLATE

90202-06002-00

Unavailable

15

SENSOR, SPEED

5PX-83755-11-00

Unavailable

16

O-RING

4D9-81168-00-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06014-00

Unavailable

18

CLAMP(4MX)

90465-06376-00

Unavailable

19

COVER

4WM-81842-00-00

Unavailable

20

CLAMP

90464-18266-00

Unavailable

21

SENSOR, CAM POSITION

5PX-85896-11-00

Unavailable

22

O-RING

4D9-81168-00-00

Unavailable

23

THERMO UNIT

5PX-83591-00-00

Unavailable

24

WASHER, PLATE 3412175700

90201-12172-00

Unavailable

25

CAP, OUT

5PX-1319W-00-00

Unavailable

26

FLASHER RELAY ASSY

5PX-83350-00-00

Unavailable

27

HORN

4WM-83371-00-00

Unavailable

28

NUT, CROWN (21G)

90176-06041-00

Unavailable

29

HORN

5PX-83371-00-00

Unavailable

30

BOLT, WITH WASHER

90119-06001-00

Unavailable

31

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

32

NUT, S/L FLANGE

95607-05200-00

Unavailable

33

BRACKET, REFLECTOR 1

5PX-85112-00-00

Unavailable

34

BRACKET, REFLECTOR 2

5PX-85122-00-00

Unavailable
