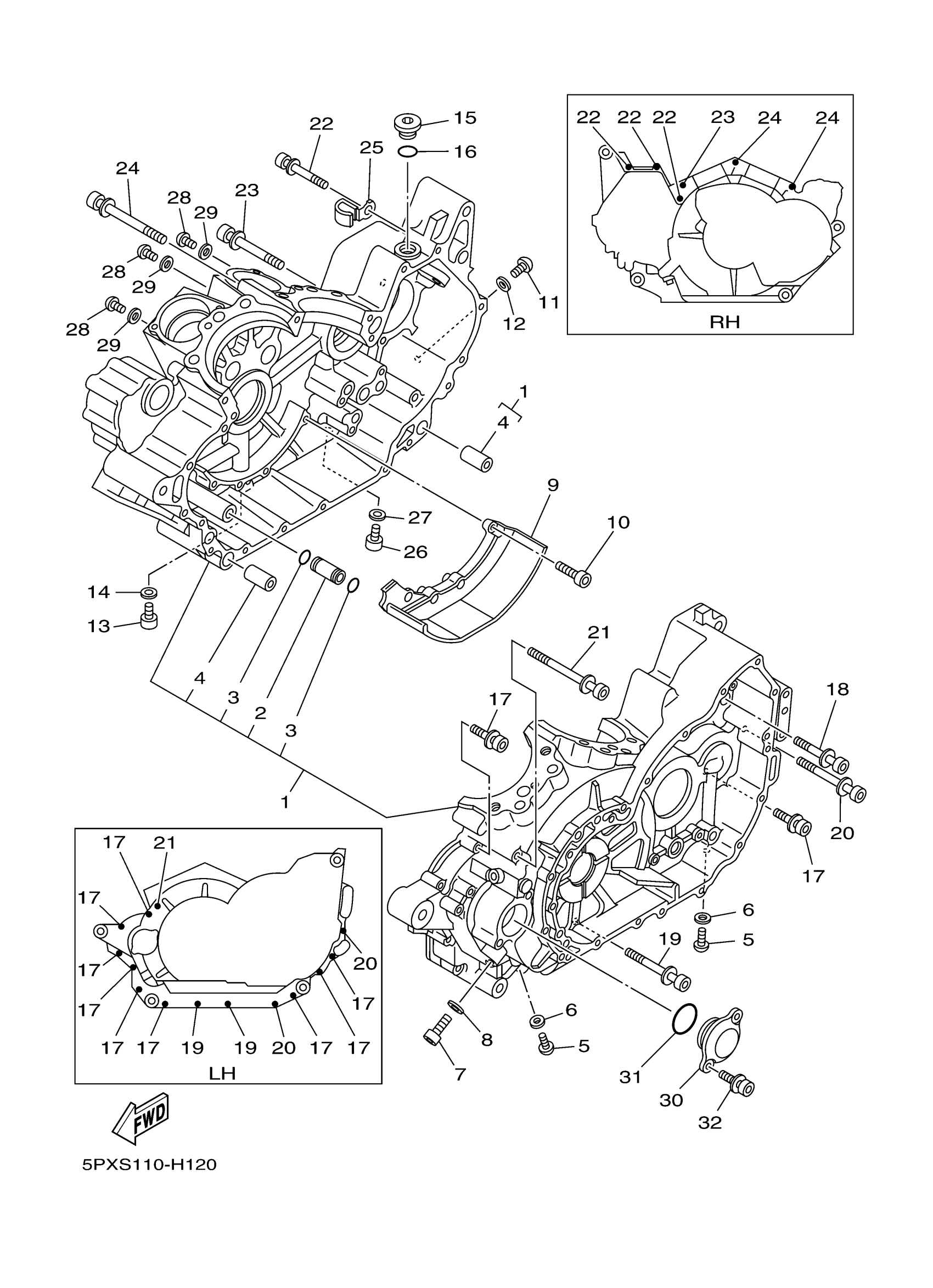

Yamaha XV17PCMYC (ROAD STAR MIDNIGHT WARRIOR CA) 2D8E 2009 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5VN-15100-20-00

Unavailable

2

NOZZLE 1

4WM-15138-00-00

Unavailable

3

O-RING

93210-10001-00

$2.18

4

PIN, DOWEL

99530-14016-00

$3.80

5

SCREW

90149-05010-00

$8.49

6

GASKET

90430-05126-00

Unavailable

7

BOLT,SOCKET

91314-08014-00

$5.60

8

WASHER, PLATE 3411117500

90201-08087-00

$3.71

9

PLATE, BUFFLE 1

4WM-15123-00-00

Unavailable

10

BOLT,SOCKET

91317-06020-00

Unavailable

11

SCREW

90149-05010-00

$8.49

12

GASKET

90430-05126-00

Unavailable

13

BOLT,SOCKET

91314-08014-00

$5.60

14

WASHER, PLATE 3411117500

90201-08087-00

$3.71

15

PLUG

5PX-15189-00-00

$32.99

16

O-RING

93210-20003-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06299-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06298-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-06313-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-06314-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-06315-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06298-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-08095-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-08098-00

Unavailable

25

CLAMP

90465-08037-00

Unavailable

26

BOLT,SOCKET

91314-08014-00

$5.60

27

WASHER, PLATE 3411117500

90201-08087-00

$3.71

28

BOLT, BUTTON HEAD(4NK)

92014-05010-00

Unavailable

29

GASKET

90430-05126-00

Unavailable

30

COVER, CAP

5VN-15417-00-00

Unavailable

31

O-RING(2TY)

93210-36769-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD

90110-06310-00

Unavailable
