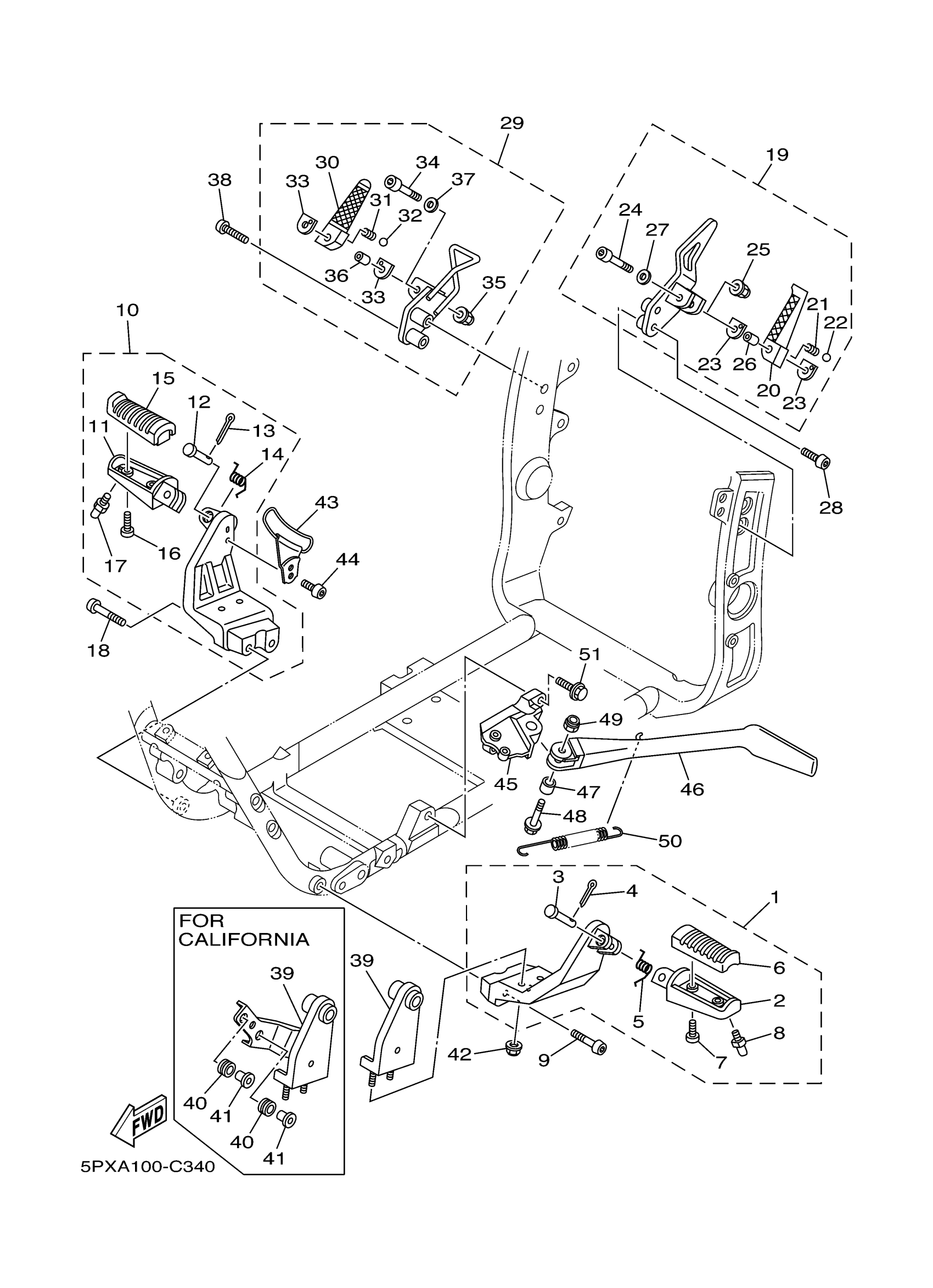

Yamaha XV17PCMXC (ROAD STAR MIDNIGHT WARRIOR CA) 2D8B 2008 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

5PX-27410-20-00

Unavailable

2

FOOTREST

4BH-27451-01-00

$58.99

3

PIN (3L5)

91701-08035-00

$7.49

4

PIN, COTTER

91490-25020-00

$3.19

5

SPRING, TORSION (22N)

90508-20572-00

$8.49

6

COVER, FOOTREST

4BP-27413-00-00

$30.99

7

SCREW, PAN HEAD

98507-05014-00

$8.49

8

. BOLT

5PX-27435-29-00

Unavailable

9

BOLT, BUTTON HEAD(3LS)

92014-10050-00

$8.49

10

FRONT FOOTREST ASSY (RIGHT)

5PX-27420-20-00

Unavailable

11

FOOTREST

4BH-27461-01-00

$58.99

12

PIN (3L5)

91701-08035-00

$7.49

13

PIN, COTTER

91490-25020-00

$3.19

14

SPRING, TORSION (22N)

90508-20572-00

$8.49

15

COVER, FOOTREST

4BP-27413-00-00

$30.99

16

SCREW, PAN HEAD

98507-05014-00

$8.49

17

. BOLT

5PX-27435-29-00

Unavailable

18

BOLT, BUTTON HEAD(3LS)

92014-10050-00

$8.49

19

REAR FOOTREST ASSY 1

5PX-27430-12-00

Unavailable

20

FOOTREST, REAR 1

5PX-27431-10-00

Unavailable

21

SPRING, COMPRESSION

90501-15001-00

Unavailable

22

BALL

93501-04011-00

Unavailable

23

WASHER, SPECIAL

5PX-27437-00-00

Unavailable

24

. BOLT

91380-06040-00

Unavailable

25

NUT, U FLANGE

95604-06200-00

Unavailable

26

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

27

WASHER, PLATE (70R)

90201-066G5-00

Unavailable

28

BOLT

90111-10010-00

Unavailable

29

REAR FOOTREST ASSY 2

5PX-27440-10-00

Unavailable

30

FOOTREST, REAR 2

5PX-27441-10-00

Unavailable

31

SPRING, COMPRESSION

90501-15001-00

Unavailable

32

BALL

93501-04011-00

Unavailable

33

. WASHER, SPECIAL

2NT-27437-00-00

Unavailable

34

. BOLT

91380-06040-00

Unavailable

35

NUT, U FLANGE

95604-06200-00

Unavailable

36

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

37

WASHER, PLATE (70R)

90201-066G5-00

Unavailable

38

BOLT

90111-10011-00

Unavailable

39

BRACKET 3

5PX-27443-00-00

Unavailable

39

BRACKET 3

5PX-27443-10-00

Unavailable

40

GROMMET (1E5)

90480-13163-00

Unavailable

41

COLLAR(42G)

90387-062L2-00

Unavailable

42

NUT, SELF-LOCKING

90185-08169-00

Unavailable

43

GUIDE, PLATE

5PX-2721A-10-00

Unavailable

44

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

45

BRACKET, SIDE STAND

5PX-27321-00-00

Unavailable

46

STAND, SIDE

5PX-27311-00-00

Unavailable

47

COLLAR

90387-1215U-00

Unavailable

48

BOLT, FLANGE

90105-12018-00

Unavailable

49

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

50

SPRING, TENSION

90506-35003-00

Unavailable

51

BOLT, FLANGE

95817-10030-00

Unavailable
