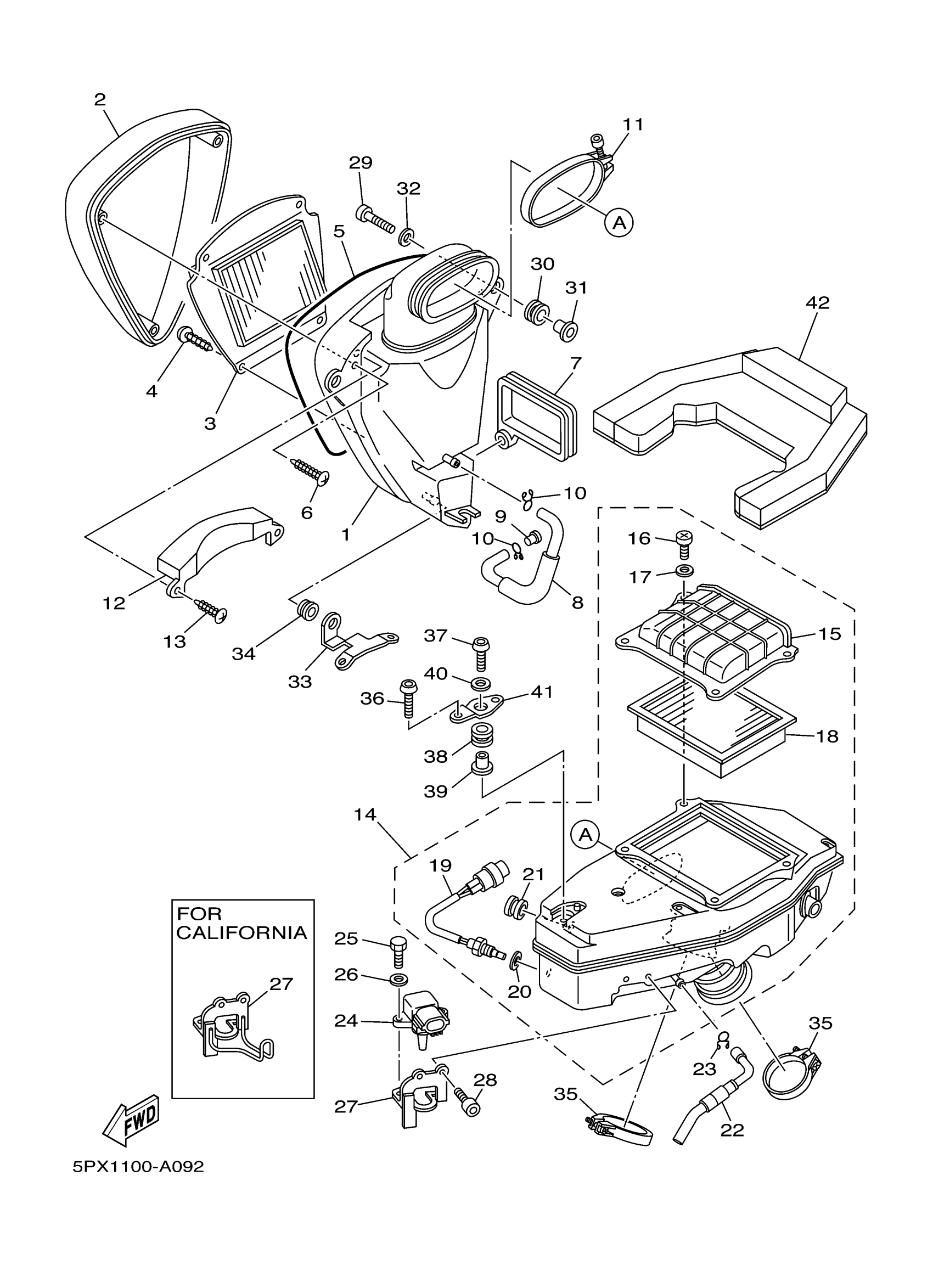

Yamaha XV17PCMXC (ROAD STAR MIDNIGHT WARRIOR CA) 2D8B 2008 INTAKE 2 Diagram

#

Description
Price

1

AIR CLEANER CASE COMP.

5PX-W1441-00-00

Unavailable

2

CASE, AIR CLEANER 2

5PX-14421-10-00

Unavailable

3

ELEMENT, AIR CLEANER

5PX-14451-00-00

$25.99

4

SCREW, PAN TAP.2

97707-50516-00

$0.80

5

SEAL

5PX-14452-00-00

$3.54

6

SCREW, TAPPING

97707-60525-00

$8.49

7

DUCT

5PX-14437-00-00

Unavailable

8

PIPE

5PX-14148-00-00

Unavailable

9

PLUG (1HX)

90338-08174-00

$8.49

10

CLIP(1JH)

90467-11106-00

$3.76

11

BAND

5PX-14455-00-00

Unavailable

12

COVER, CLEANER CASE 1

5PX-1441A-00-00

Unavailable

13

SCREW, TAPPING(JN5)

97707-50010-00

$0.27

14

SILENCER ASSY, INTAKE

5PX-14440-01-00

Unavailable

15

CAP, CLEANER CASE 1

5PX-14412-00-00

Unavailable

16

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

17

WASHER(1RW)

92907-05600-00

Unavailable

18

ELEMENT, AIR CLEANER 2

5PX-14461-00-00

Unavailable

19

THERMOSENSOR ASSY

5PX-85790-00-00

Unavailable

20

GASKET(2GH)

90430-12202-00

Unavailable

21

GROMMET

90480-16001-00

Unavailable

22

PIPE, DRAIN

5PX-1443E-01-00

Unavailable

23

CLIP

90467-090A2-00

Unavailable

24

SENSOR, PRESSURE

5JW-82380-00-00

Unavailable

25

BOLT(4TW)

97017-05016-00

Unavailable

26

WASHER(1RW)

92907-05600-00

Unavailable

27

STAY

5PX-14413-00-00

Unavailable

27

STAY

5PX-14413-10-00

Unavailable

28

BOLT, SOCKET

91317-05010-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

Unavailable

30

GROMMET 839774310000

90480-14023-00

Unavailable

31

COLLAR 437216330000

90387-07391-00

Unavailable

32

WASHER

90209-06250-00

Unavailable

33

STAY 1

5PX-14498-00-00

Unavailable

34

GROMMET

90480-13014-00

Unavailable

35

HOSE CLAMP ASSY

90450-52004-00

Unavailable

36

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

37

BOLT, BUTTON HEAD

92017-06025-00

Unavailable

38

GROMMET 839774310000

90480-14023-00

Unavailable

39

COLLAR 437216330000

90387-07391-00

Unavailable

40

WASHER

90209-06250-00

Unavailable

41

STAY 2

5PX-14414-01-00

Unavailable

42

COVER, AIR CLEANER

5PX-1449E-00-00

Unavailable
