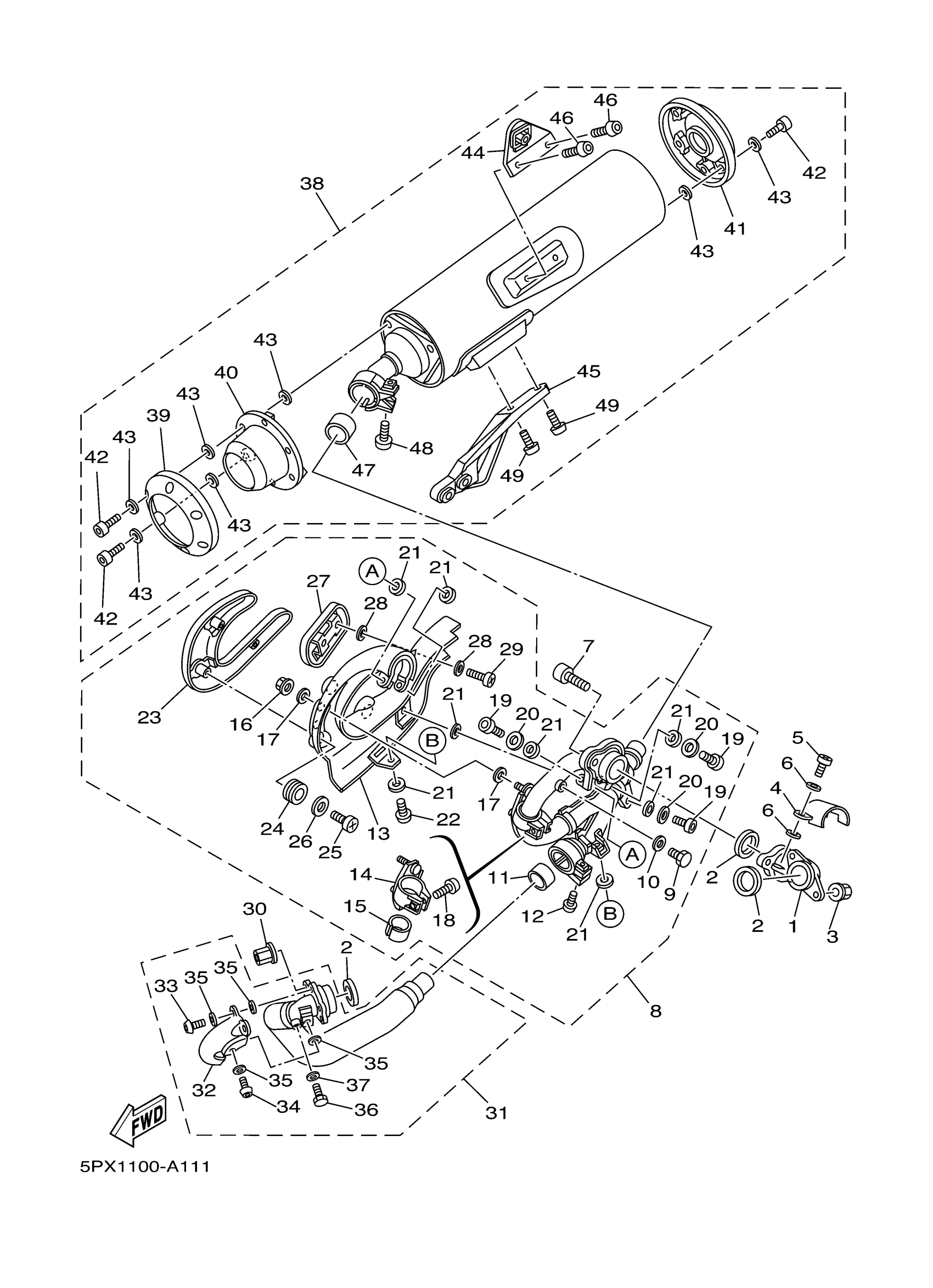

Yamaha XV17PCMXC (ROAD STAR MIDNIGHT WARRIOR CA) 2D8B 2008 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

5PX-14615-00-00

Unavailable

2

GASKET, EXHAUST PIPE

3EG-14613-00-00

$23.99

3

NUT, SELF-LOCKING(3BN)

90185-08146-00

$9.49

4

PROTECTOR, EXHAUST PIPE

5PX-14628-10-00

Unavailable

5

SCREW, BIND(J45)

98980-06012-00

$8.49

6

WASHER, PLATE

90201-05015-00

$8.49

7

BOLT,SOCKET

91314-08030-00

$2.34

8

EXHAUST PIPE ASSY 1

5PX-14610-10-00

Unavailable

9

BOLT (FJ1)

97080-06008-00

$2.34

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

GASKET, SILENCER

5PX-14755-00-00

$29.99

12

BOLT, BUTTON HEAD(3YF)

92014-08025-00

$7.49

13

PROTECTOR, MUFFLER 1

5PX-14718-10-00

Unavailable

14

BAND, MUFFLER

5PX-14715-00-00

Unavailable

15

GASKET, MUFFLER

5PX-14714-00-00

Unavailable

16

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

17

WASHER, PLATE

90201-05015-00

$8.49

18

BOLT, BUTTON

92014-08020-00

Unavailable

19

BOLT, SOCKET

91314-06016-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

WASHER, PLATE

90201-05015-00

$8.49

22

SCREW, BIND(J45)

98980-06012-00

$8.49

23

PROTECTER, MUFFLER 3

5PX-14738-10-00

Unavailable

24

GROMMET

90480-17001-00

Unavailable

25

SCREW, BIND(J45)

98980-06012-00

$8.49

26

WASHER, PLATE(1JK)

90201-064K6-00

Unavailable

27

PROTECTOR, MUFFLER 2

5PX-14728-10-00

Unavailable

28

WASHER, PLATE

90201-05015-00

$8.49

29

SCREW, BIND(J45)

98980-06012-00

$8.49

30

NUT (22U)

90179-08410-00

Unavailable

31

EXHAUST PIPE ASSY 2

5PX-14620-10-00

Unavailable

32

COVER, EXHAUST

5PX-14624-10-00

Unavailable

33

BOLT

90111-06020-00

Unavailable

34

BOLT

90111-06031-00

Unavailable

35

WASHER, PLATE

90201-05015-00

$8.49

36

BOLT (FJ1)

97080-06008-00

$2.34

37

WASHER, PLAIN (646)

92990-06600-00

$2.80

38

MUFFLER ASSY 1

5PX-14710-10-00

Unavailable

39

. CAP, SILENCER 2

5PX-14798-00-00

Unavailable

40

COVER, 1

5PX-1479H-10-00

Unavailable

41

. CAP

5PX-14799-00-00

Unavailable

42

BOLT,SOCKET

91380-06014-00

Unavailable

43

WASHER, PROTECTOR

4BD-14766-00-00

Unavailable

44

STAY, MUFFLER 1

5PX-14771-10-00

Unavailable

45

STAY, MUFFLER 2

5PX-14772-00-00

Unavailable

46

BOLT, BUTTON HEAD

92014-08012-00

Unavailable

47

GASKET, SILENCER

4WM-14755-00-00

Unavailable

48

BOLT, BUTTON HEAD

92014-08045-00

Unavailable

49

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

Unavailable
