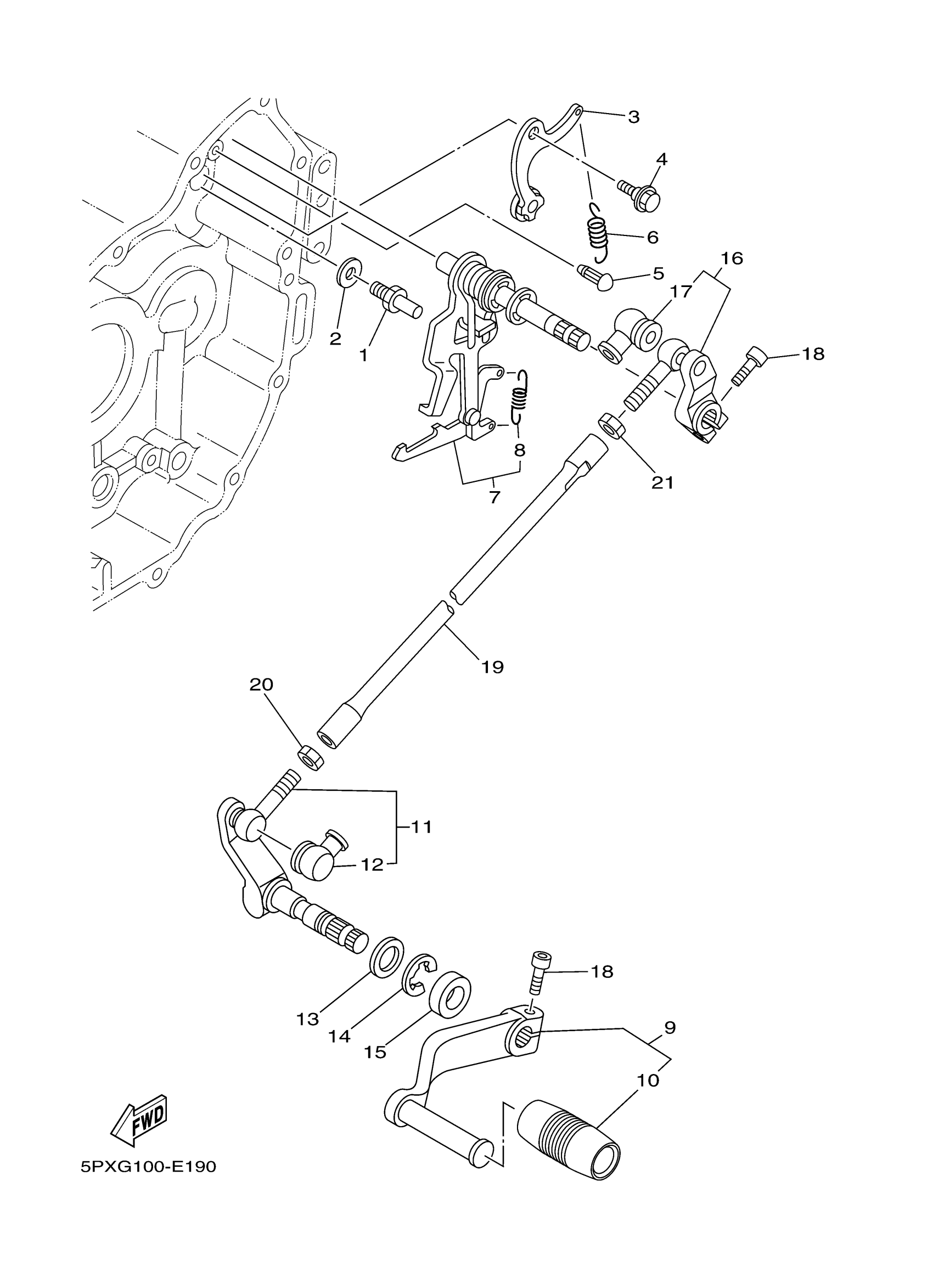

Yamaha XV17PCMWC (ROAD STAR MIDNIGHT WARRIOR CA) 2D88 2007 SHIFT SHAFT Diagram

#

Description
Price

1

BOLT (1J7)

90109-08441-00

$8.49

2

WASHER PLATE 141181390000

90201-08085-00

$9.49

3

STOPPER LEVER ASSY

26H-18140-02-00

Unavailable

4

BOLT

90109-06036-00

$9.49

5

HOOK, SPRING

132-16346-00-00

$9.99

6

SPRING, TENSION

90506-18007-00

Unavailable

7

SHIFT SHAFT ASSY

4WM-18101-01-00

Unavailable

8

SPRING, TENSION (4H7)

90506-08227-00

$4.19

9

SHIFT PEDAL ASSY

5PX-18110-30-00

Unavailable

10

COVER, SHIFT PEDAL

5VN-18113-00-00

$15.49

11

KNOB, SHIFTER

5PX-18164-10-00

Unavailable

12

COVER, DUST

2H9-18154-00-00

$5.49

13

WASHER, PLATE(52G)

90201-144J2-00

$8.49

14

. CIRCLIP

99001-12600-00

Unavailable

15

COVER, DUST

5PX-18154-00-00

$10.99

16

SHIFT LEVER ASSY

5VN-18150-10-00

Unavailable

17

COVER, DUST

2H9-18154-00-00

$5.49

18

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

19

ROD, SHIFT

5PX-18115-10-00

Unavailable

20

. NUT

95380-08700-00

Unavailable

21

NUT(1KT)

90170-08358-00

Unavailable
