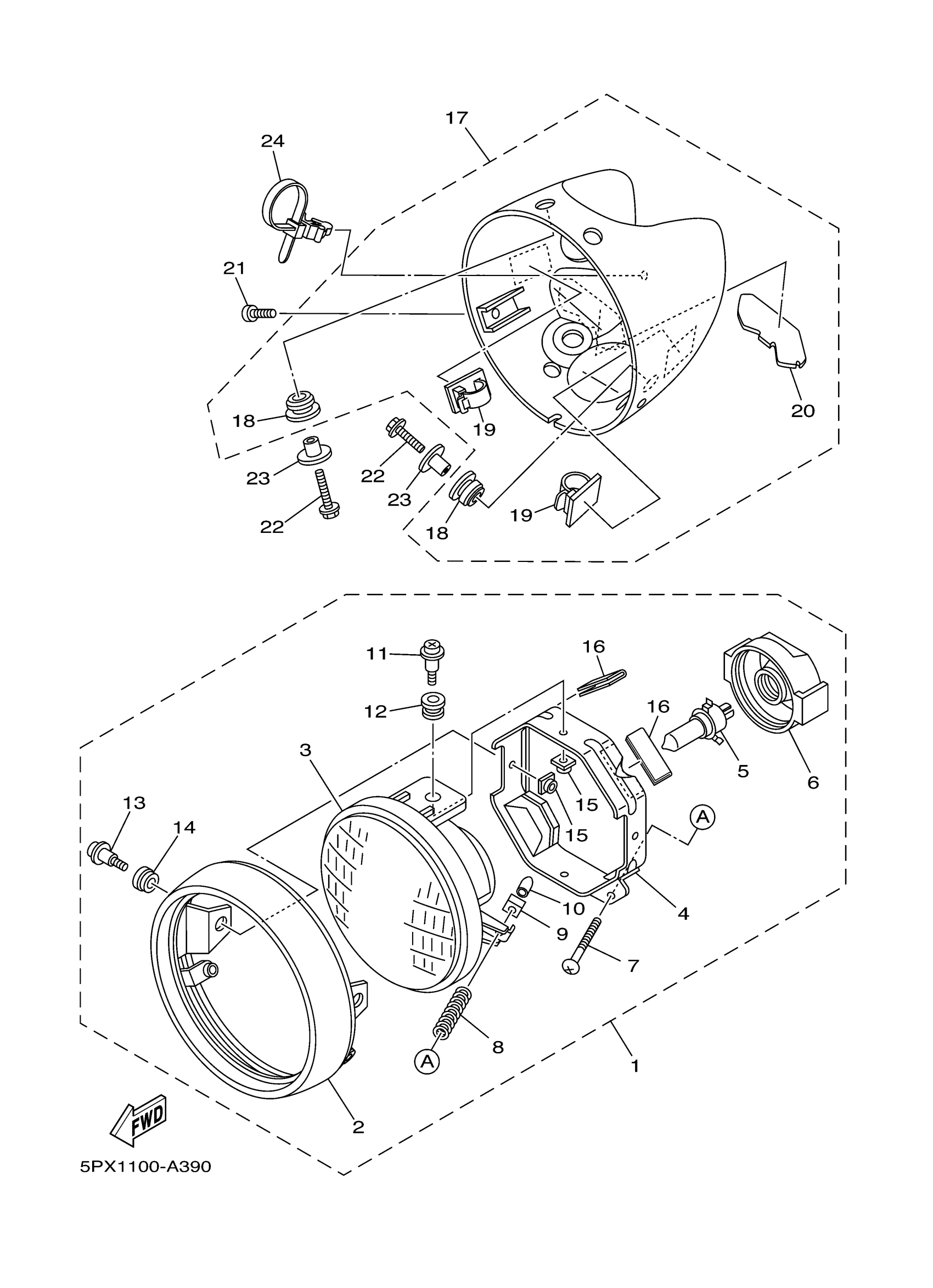

Yamaha XV17PCMWC (ROAD STAR MIDNIGHT WARRIOR CA) 2D88 2007 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

5PX-84310-01-00

Unavailable

2

. RIM, HEADLIGHT

5PX-84315-00-00

Unavailable

3

LENS ASSY

5PX-84320-00-00

$181.41

4

STAY, HEADLIGHT 1

5PX-84318-00-00

$60.64

5

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

6

COVER, SOCKET

5PX-84397-00-00

$33.53

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

$6.29

8

SPRING, SCREW

5PX-84332-00-00

$6.29

9

NUT, ADJUSTING

5PX-84334-00-00

$6.29

10

CAP,1

5PX-84385-00-00

$6.29

11

SCREW, RIM FITTING

5PX-84325-00-00

$6.33

12

GROMMET

5PX-84354-00-00

$4.83

13

SCREW, RIM FITTING

5PX-84125-00-00

$5.99

14

GROMMET

5PX-84352-00-00

$5.55

15

NUT

5PX-84317-00-00

$6.59

16

SEAL

5PX-21669-01-00

Unavailable

17

BODY ASSY

5PX-84330-10-00

Unavailable

18

DAMPER, HEADLIGHT 1

5PX-84366-00-00

Unavailable

19

CLAMP(4FM)

90464-13185-00

Unavailable

20

PLATE, GUIDE

5PX-8413G-00-00

Unavailable

21

SCREW, BIND(4DN)

98980-05014-00

Unavailable

22

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

23

COLLAR

90387-06175-00

Unavailable

24

CLAMP(2TV)

90464-10112-00

Unavailable
