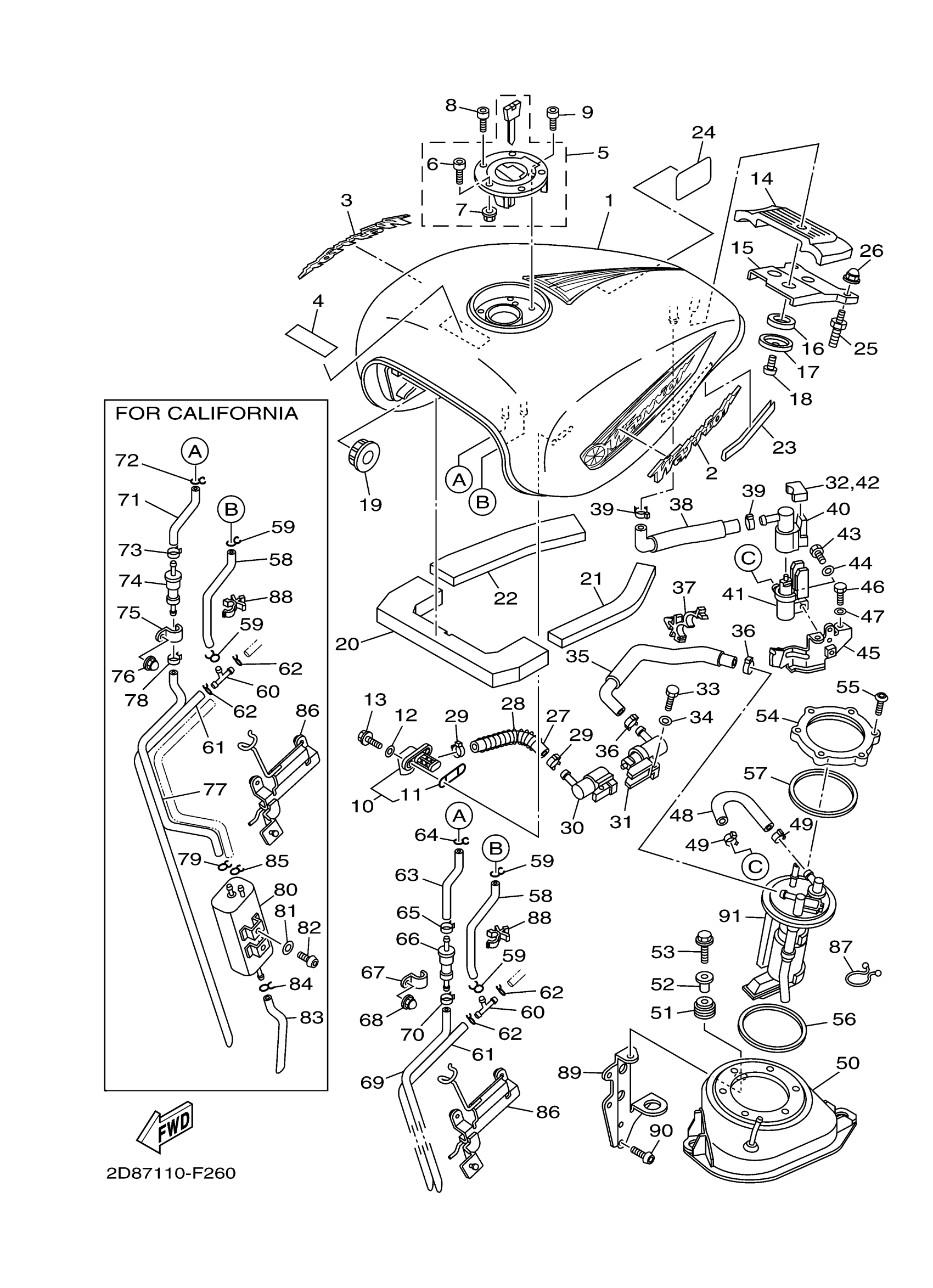

Yamaha XV17PCMWC (ROAD STAR MIDNIGHT WARRIOR CA) 2D88 2007 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (YAMAHA BLACK)

5PX-Y2410-10-X1

Unavailable

2

EMBLEM

5PX-2416B-10-00

Unavailable

3

EMBLEM

5PX-2417B-10-00

Unavailable

4

LABEL, CAUTION

5GK-2118K-00-00

$6.99

5

CAP ASSY

5PX-24602-02-00

Unavailable

6

BOLT,SOCKET

91380-05012-00

$5.60

7

NUT, FLANGE(3GM)

95707-05500-00

$8.49

8

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

9

BOLT, SOCKET

91317-05010-00

$2.55

10

FILTER ASSY

5PX-24560-00-00

Unavailable

11

O-RING

4X8-24512-00-00

$8.99

12

WASHER, PLATE(3MB)

90202-05187-00

$1.38

13

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

14

DAMPER, LOCATING 2

5PX-24182-01-00

Unavailable

15

BRACKET, TANK FITTING

5PX-2413Y-01-00

$46.99

16

DAMPER, LOCATING 3

5PX-24183-01-00

Unavailable

17

WASHER, SPECIAL

5PX-24186-01-00

Unavailable

18

BOLT, BUTTON HEAD

92017-08012-00

Unavailable

19

DAMPER, LOCATING

4H7-24181-00-00

Unavailable

20

DAMPER, PLATE 3

5PX-2414K-00-00

Unavailable

21

DAMPER, PLATE 1

5PX-2414H-00-00

Unavailable

22

DAMPER, PLATE 2

5PX-2414J-00-00

Unavailable

23

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

24

SEAL,2

1JK-21735-00-00

Unavailable

25

BOLT 1

5PX-24176-01-00

Unavailable

26

NUT, CROWN(1FN)

90176-06055-00

Unavailable

27

PIPE, FUEL 1

5PX-24311-00-00

Unavailable

28

SPRING

5PX-24393-00-00

Unavailable

29

CLIP

5PX-2411M-00-00

Unavailable

30

FUEL PIPE JOINT COMP. 2

5PX-24305-00-00

Unavailable

31

FUEL PIPE JOINT COMP. 1

5PX-24304-01-00

Unavailable

32

DAMPER, LOCATING 4

5PX-24184-01-00

Unavailable

33

BOLT(3JK)

97027-05020-00

Unavailable

34

WASHER(1RW)

92907-05600-00

Unavailable

35

PIPE 2

5PX-24312-00-00

Unavailable

36

CLIP

5PX-2411M-00-00

Unavailable

37

CLAMP

90464-16006-00

Unavailable

38

PIPE 3

5PX-24313-00-00

Unavailable

39

CLIP

5PX-2411M-00-00

Unavailable

40

FUEL PIPE JOINT COMP. 2

5PX-24305-00-00

Unavailable

41

FUEL PIPE JOINT COMP. 1

5PX-24304-11-00

Unavailable

42

DAMPER, LOCATING 4

5PX-24184-01-00

Unavailable

43

BOLT(3JK)

97027-05020-00

Unavailable

44

WASHER(1RW)

92907-05600-00

Unavailable

45

BRACKET, CANISTOR

5PX-2419F-00-00

Unavailable

46

BOLT(4GV)

97017-05012-00

Unavailable

47

WASHER(1RW)

92907-05600-00

Unavailable

48

PIPE 4

5PX-24314-00-00

Unavailable

49

CLIP

5PX-2411M-00-00

Unavailable

50

TANK, FUEL

5PX-24280-00-00

Unavailable

51

GROMMET

90480-18003-00

Unavailable

52

COLLAR

90387-0614M-00

Unavailable

53

BOLT, FLANGE

95817-06030-00

Unavailable

54

BRACKET, FUEL PUMP

5PX-24491-00-00

Unavailable

55

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

56

O-RING

5PX-24486-00-00

Unavailable

57

PLATE, DAMPER

5PX-24145-00-00

Unavailable

58

PIPE, OVERFLOW

5PX-24318-01-00

Unavailable

59

CLIP

90467-090A2-00

Unavailable

60

WAY 3 (10L)

90413-07007-00

Unavailable

61

PIPE 10

5PX-24321-01-00

Unavailable

62

CLIP

90467-090A2-00

Unavailable

63

PIPE 11

5PX-24322-20-00

Unavailable

64

CLIP

90467-090A2-00

Unavailable

65

CLIP

90467-09001-00

Unavailable

66

ROLL OVER VALVE ASSY

5PX-24180-00-00

Unavailable

67

CLAMP 2

5PX-24136-00-00

Unavailable

68

NUT, CROWN(47X)

90176-05054-00

Unavailable

69

PIPE 12

5PX-24323-01-00

Unavailable

70

CLIP

90467-09001-00

Unavailable

71

PIPE 11

5PX-24322-20-00

Unavailable

72

CLIP

90467-090A2-00

Unavailable

73

CLIP

90467-09001-00

Unavailable

74

ROLL OVER VALVE ASSY

5PX-24180-00-00

Unavailable

75

CLAMP 2

5PX-24136-00-00

Unavailable

76

NUT, CROWN(47X)

90176-05054-00

Unavailable

77

PIPE 12

5PX-24323-20-00

Unavailable

78

CLIP

90467-09001-00

Unavailable

79

CLIP

90467-090A2-00

Unavailable

80

CANISTER ASSY

5PX-24170-00-00

Unavailable

81

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

82

BOLT

90111-06046-00

Unavailable

83

PIPE 14

5PX-24325-00-00

Unavailable

84

CLIP

90467-100A1-00

Unavailable

85

CLIP

90467-090A2-00

Unavailable

86

STAY

5PX-24364-01-00

Unavailable

87

CLAMP

90464-25267-00

Unavailable

88

CLAMP(6M7)

90464-10M32-00

Unavailable

89

STAY, SIDE COVER 1

5PX-2172E-00-00

Unavailable

90

BOLT, BUTTON

92017-08025-00

Unavailable

91

FUEL PUMP COMP.

5PX-13907-01-00

Unavailable
