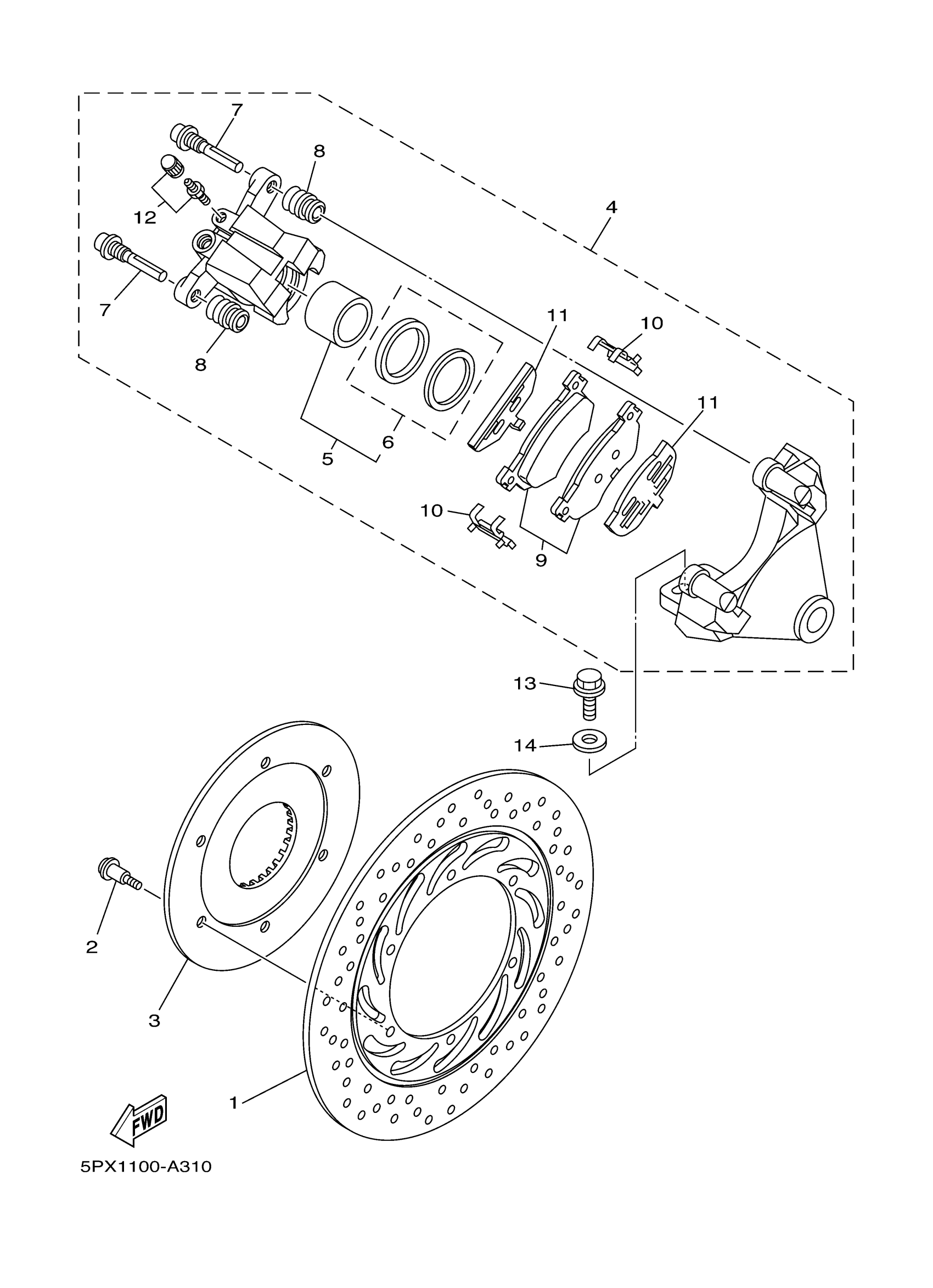

Yamaha XV17PCMVC (ROAD STAR MIDNIGHT WARRIOR CA) 2D85 2006 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

5EL-2582W-00-00

Unavailable

2

BOLT

90109-06050-00

$7.49

3

INSERT, PLATE

5PX-25345-00-00

$153.99

4

CALIPER ASSY, REAR 2

5PX-2580W-00-00

Unavailable

5

PISTON ASSY, CALIPER

1D7-25802-00-00

$56.99

6

CALIPER SEAL KIT

5JW-25803-00-00

$16.49

7

PIN, SLIDE

5JW-25914-10-00

$22.99

8

BOOT 2

4TT-25937-00-00

$16.49

9

BRAKE PAD KIT 2

5JW-W0046-00-00

$51.99

10

SUPPORT, PAD

5JW-25919-00-00

$17.49

11

SHIM, CALIPER

5JW-25827-00-00

$6.99

12

BLEED SCREW KIT

15B-W0048-00-00

$19.99

13

BOLT, FLANGE(4TV)

95814-10025-00

$8.49

14

WASHER, PLATE (17K)

90201-106F2-00

$10.49
