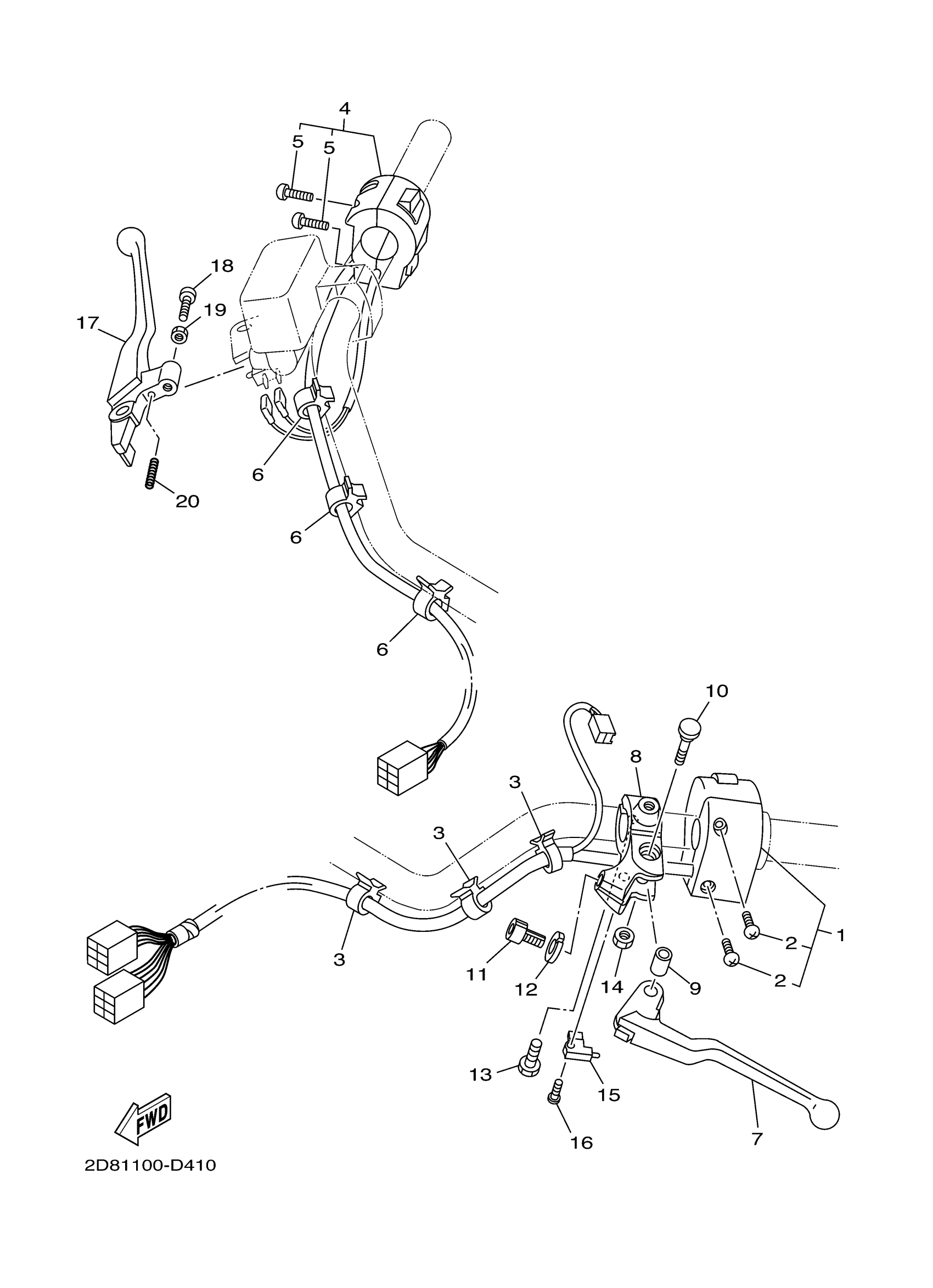

Yamaha XV17PCMVC (ROAD STAR MIDNIGHT WARRIOR CA) 2D85 2006 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

5PX-83973-30-00

Unavailable

2

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

3

CLAMP(4HM)

90464-15192-00

$8.49

4

SWITCH, HANDLE 2

5PX-83975-30-00

Unavailable

5

SCREW, PAN HEAD(4MY)

98507-05025-00

$8.49

6

CLAMP(4GY)

90464-10190-00

$9.49

7

LEVER 1

4WM-83912-10-00

Unavailable

8

HOLDER, LEVER 1

5BN-82911-20-00

$56.99

9

COLLAR, LEVER 1

4TR-83913-00-00

$7.99

10

BOLT, LEVER

4TR-83945-10-00

$14.49

11

BOLT

90123-08002-00

$10.49

12

NUT

90179-08030-00

$5.49

13

BOLT, HEXAGON

97017-06020-00

$4.06

14

NUT, U(4NK)

95604-06100-00

$8.49

15

SWITCH

3YX-82917-01-00

$43.99

16

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

17

LEVER 2

5EY-83922-10-00

Unavailable

18

SCREW (2L0)

90149-06131-00

Unavailable

19

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

20

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable
