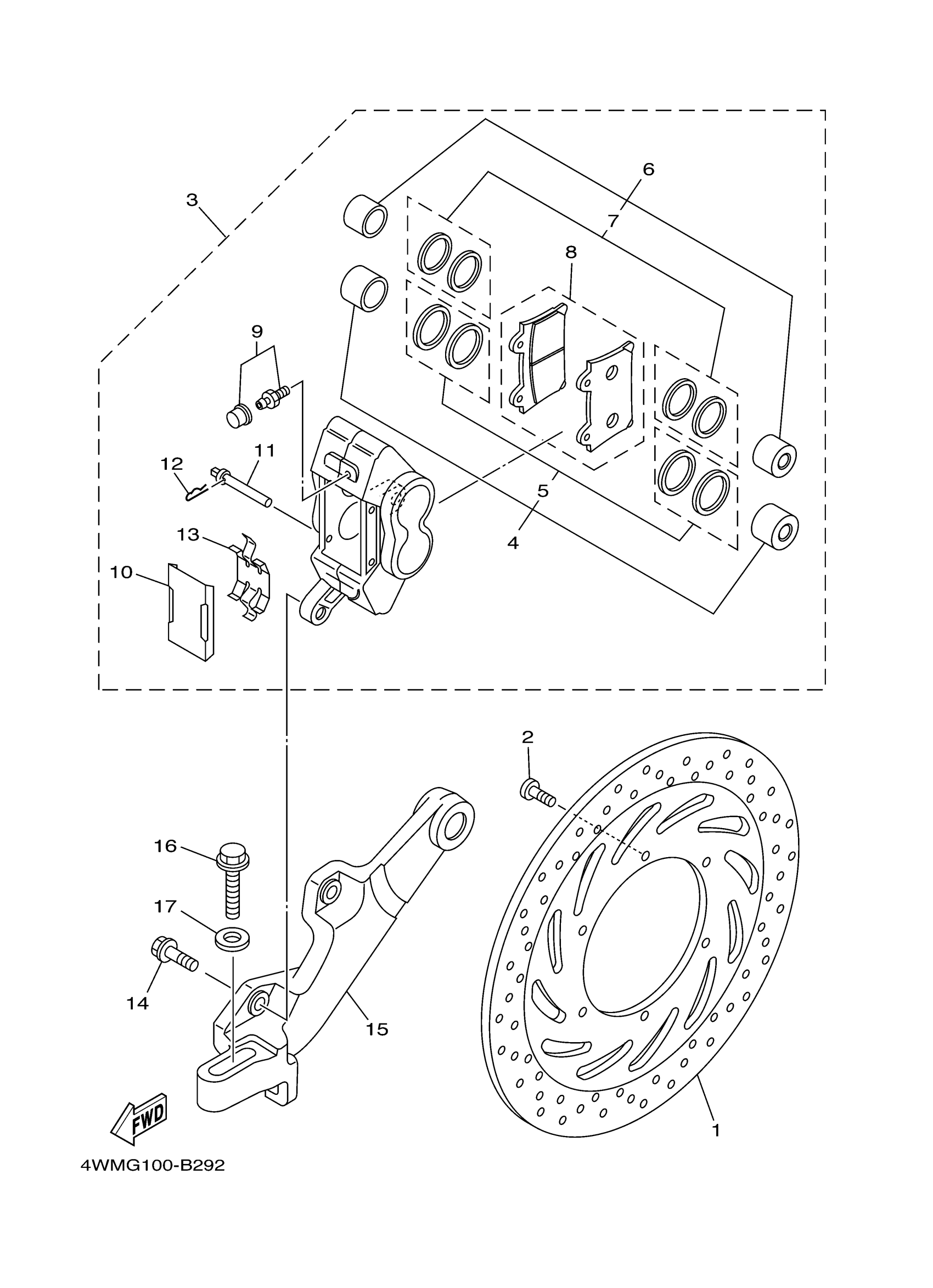

Yamaha XV17AWXL (ROAD STAR) 5VNR 2008 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4WM-2582W-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

CALIPER ASSY, REAR 2

4WM-2580W-11-00

$373.99

PISTON ASSY, CALIPER

1KT-25802-00-00

$193.99

CALIPER SEAL KIT

1KT-25803-00-00

$58.99

PISTON ASSY, CALIPER

4NK-25802-00-00

Unavailable

CALIPER SEAL KIT

4NK-25803-00-00

$62.99

BRAKE PAD KIT

4KG-25805-00-00

$49.99

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

COVER, DUST

1NL-25836-01-00

$36.99

PIN, PAD

3HE-25924-00-00

Unavailable

CLIP, PAD PIN

3GM-25925-00-00

$11.99

SUPPORT, PAD

1NL-25919-00-00

$24.99

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

BRACKET, CALIPER

4WM-25819-00-00

Unavailable

BOLT, FLANGE(8AB)

95817-10050-00

Unavailable

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable
