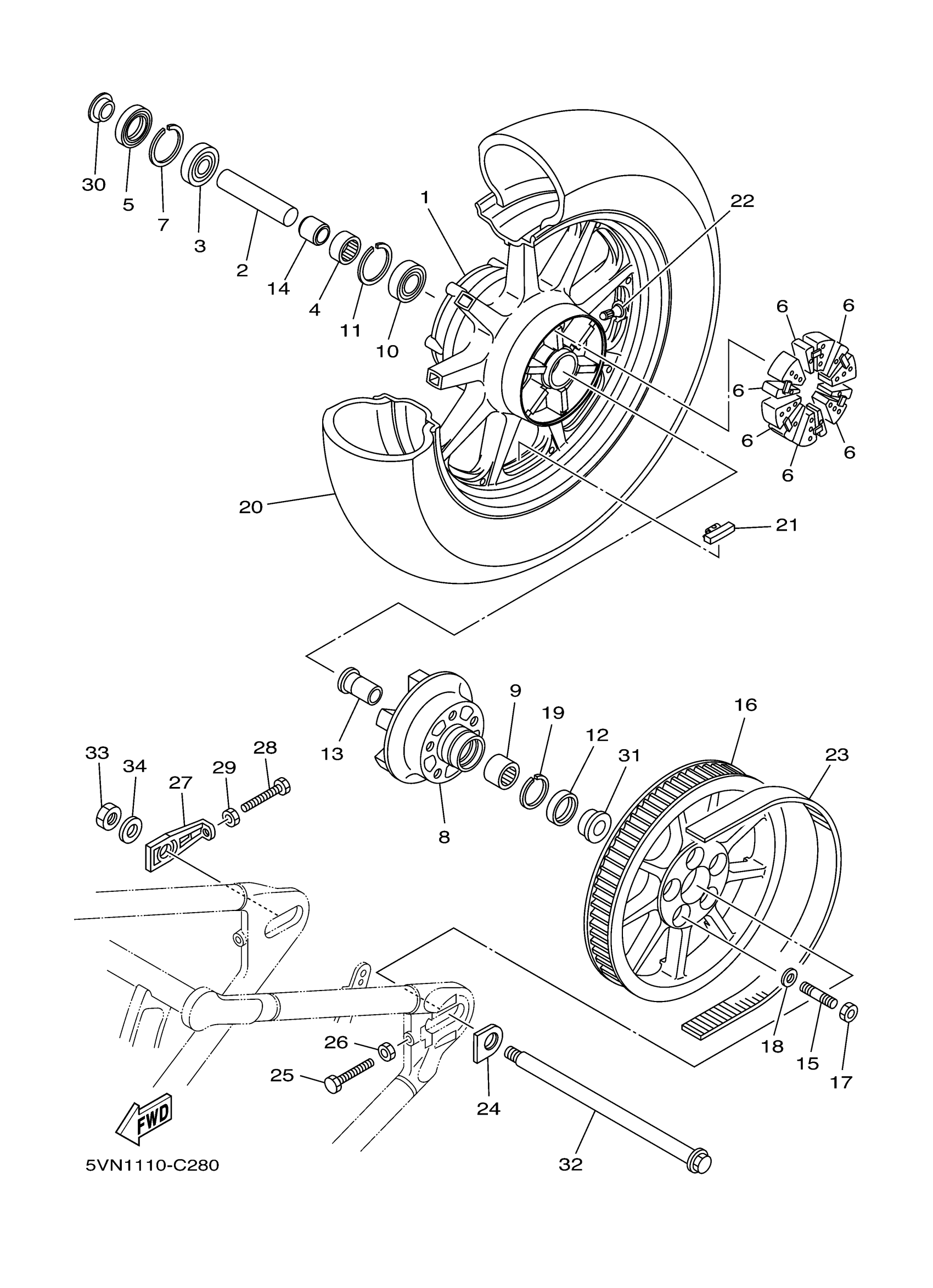

Yamaha XV17AWWC (ROAD STAR CA) 5VNN 2007 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5VN-25338-00-7B

Unavailable

2

SPACER(3BC)

90560-20339-00

$26.99

3

BEARING(3BC)

93306-30437-00

$66.99

4

BEARING

93317-33590-00

$75.99

5

OIL SEAL

93106-28001-00

Unavailable

6

DAMPER

4WM-25364-00-00

Unavailable

7

CIRCLIP(26H)

99009-52500-00

$12.49

8

CLUTCH, HUB

5PX-25366-00-00

Unavailable

9

BEARING

93311-32698-00

$73.99

10

BEARING(3BC)

93306-30437-00

$66.99

11

CIRCLIP(26H)

99009-52500-00

$12.49

12

OIL SEAL (30X42X8-102)

93106-30004-00

$13.49

13

COLLAR, WHEEL

4WM-25376-10-00

$44.99

14

COLLAR, WHEEL

5VN-25383-00-00

Unavailable

15

BOLT, STUD

95617-12630-00

$11.49

16

SPROCKET, DRIVEN (70T)

5VN-25470-11-00

Unavailable

17

NUT, U

95614-12100-00

Unavailable

18

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

19

CIRCLIP

93450-35163-00

Unavailable

20

TIRE (150/80-16 M/C 71H)

94115-16012-00

Unavailable

21

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

21

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

21

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

22

VALVE, RIM(2GH)

93900-00030-00

Unavailable

23

BELT

5PX-46241-11-00

Unavailable

24

PULLER, CHAIN 1

4WM-25388-00-00

Unavailable

25

BOLT

90101-10001-00

Unavailable

26

NUT

90170-10003-00

Unavailable

27

PULLER, CHAIN 2

4WM-25389-00-00

Unavailable

28

BOLT

90101-10001-00

Unavailable

29

NUT

90170-10003-00

Unavailable

30

COLLAR

90387-20033-00

Unavailable

31

COLLAR(3BC)

90387-202X9-00

Unavailable

32

AXLE, WHEEL

4WM-25381-00-00

Unavailable

33

NUT, SELF-LOCKING

90185-18009-00

Unavailable

34

WASHER, PLATE (1J7)

90201-18620-00

Unavailable
