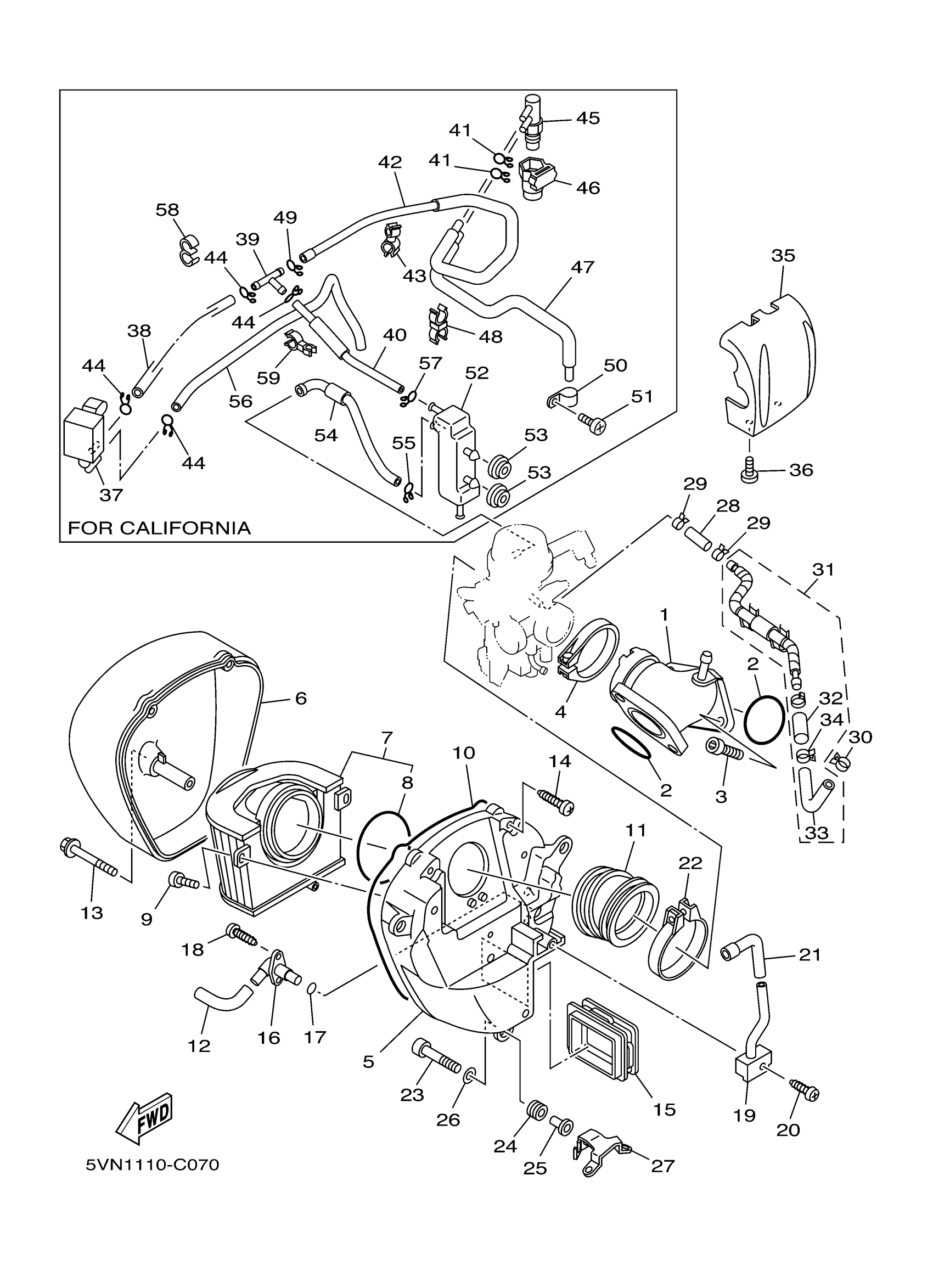

Yamaha XV17AWVC (ROAD STAR CAST CA) 5VNF 2006 INTAKE Diagram
#
3
BOLT,SOCKET
91317-06020-00
Unavailable
5
CASE, AIR CLEANER 1
5VN-14411-00-00
Unavailable
6
CASE, AIR CLEANER 2
4WM-14421-00-00
Unavailable
13
SCREW
90149-06331-00
Unavailable
15
DUCT
5VN-14437-00-00
Unavailable
16
PIPE, JOINT
5VN-14485-00-00
Unavailable
17
O-RING (2H7)
93210-13361-00
Unavailable
18
SCREW, PAN TAP.2
97707-50525-00
Unavailable
19
STAY
5VN-14413-00-00
Unavailable
20
SCREW, PAN TAP.2
97707-50516-00
Unavailable
21
PIPE
5VN-14419-00-00
Unavailable
22
HOSE CLAMP ASSY
90450-67002-00
Unavailable
23
BOLT,SOCKET HEAD
91314-06025-00
Unavailable
24
GROMMET 839774310000
90480-14023-00
Unavailable
25
COLLAR 437216330000
90387-07391-00
Unavailable
26
WASHER PLATE 256216150000
90201-06062-00
Unavailable
27
STAY 1
5VN-14498-00-00
Unavailable
28
HOSE (L30)
90445-146K8-00
Unavailable
29
CLIP(3YX)
90467-13133-00
Unavailable
30
CLIP
90467-11028-00
Unavailable
31
PIPE, FUEL
5VN-14295-01-00
Unavailable
32
. PROTECTOR
5VN-1442F-00-00
Unavailable
33
. HOSE
5VN-14294-00-00
Unavailable
34
CLIP
90467-11028-00
Unavailable
35
COVER, CONTROL RACK
4WM-13993-01-00
Unavailable
36
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
37
VALVE, OUTER VENT CONTROL 2
4WM-14896-00-00
Unavailable
38
PIPE 14
5VN-24325-00-00
Unavailable
39
WAY 3 (10L)
90413-07007-00
Unavailable
40
PIPE 13
5VN-24324-00-00
Unavailable
41
CLIP (16G)
90467-08021-00
Unavailable
42
PIPE, DRAIN 2
5VN-1443G-00-00
Unavailable
43
CLIP(J38)
90468-80181-00
Unavailable
44
CLIP
90467-100A1-00
Unavailable
45
COMPENSATOR ASSY
5VN-14303-00-00
Unavailable
46
HOLDER
5VN-14261-00-00
Unavailable
47
PIPE, DRAIN 3
5VN-1443H-00-00
Unavailable
48
CLAMP
90464-13260-00
Unavailable
49
CLIP
90467-090A2-00
Unavailable
50
CLAMP
90464-15014-00
Unavailable
51
SCREW, BINDING
98907-05012-00
Unavailable
52
TANK, SURGE
4WM-1446E-00-00
Unavailable
53
GROMMET(4FU)
90480-13567-00
Unavailable
54
PIPE
4WM-14349-02-00
Unavailable
55
CLIP
90467-100A1-00
Unavailable
56
PIPE 1
5VN-14348-00-00
Unavailable
57
CLIP
90467-100A1-00
Unavailable
58
CLAMP(6M7)
90464-09M31-00
Unavailable
59
CLAMP
90464-11001-00
Unavailable
