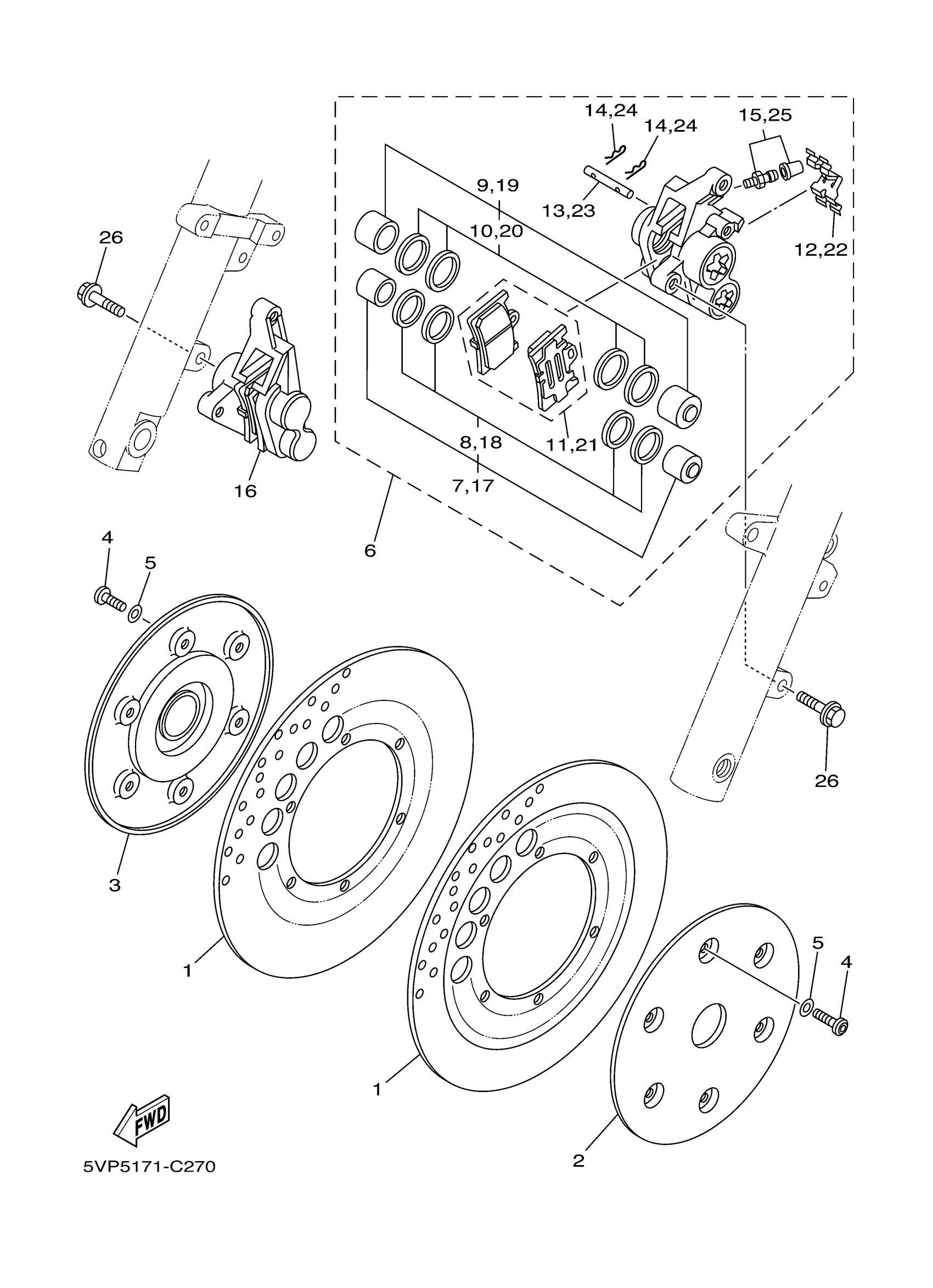

Yamaha XV17AVC (ROAD STAR SPOKE CA) 5VND 2006 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (RIGHT)

3JB-2582U-01-00

Unavailable

RING, WHEEL 1 (LEFT)

4NK-2514A-00-00

Unavailable

RING, WHEEL 2 (RIGHT)

4WM-2515A-00-00

$188.99

SCREW

90149-08052-00

$8.49

WASHER, PLATE

90201-08014-00

$7.49

CALIPER ASSY (LEFT)

5VN-2580T-00-00

$438.99

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

BRAKE PAD KIT

5VN-25805-00-00

$64.99

SUPPORT, PAD

5VN-25919-00-00

$35.99

PIN, PAD

4SV-25924-00-00

$42.99

CLIP, PAD PIN

3GM-25925-00-00

$11.99

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

CALIPER ASSY (RIGHT)

5VN-2580U-00-00

Unavailable

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

BRAKE PAD KIT

5VN-25805-00-00

$64.99

SUPPORT, PAD

5VN-25919-00-00

$35.99

PIN, PAD

4SV-25924-00-00

$42.99

CLIP, PAD PIN

3GM-25925-00-00

$11.99

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
